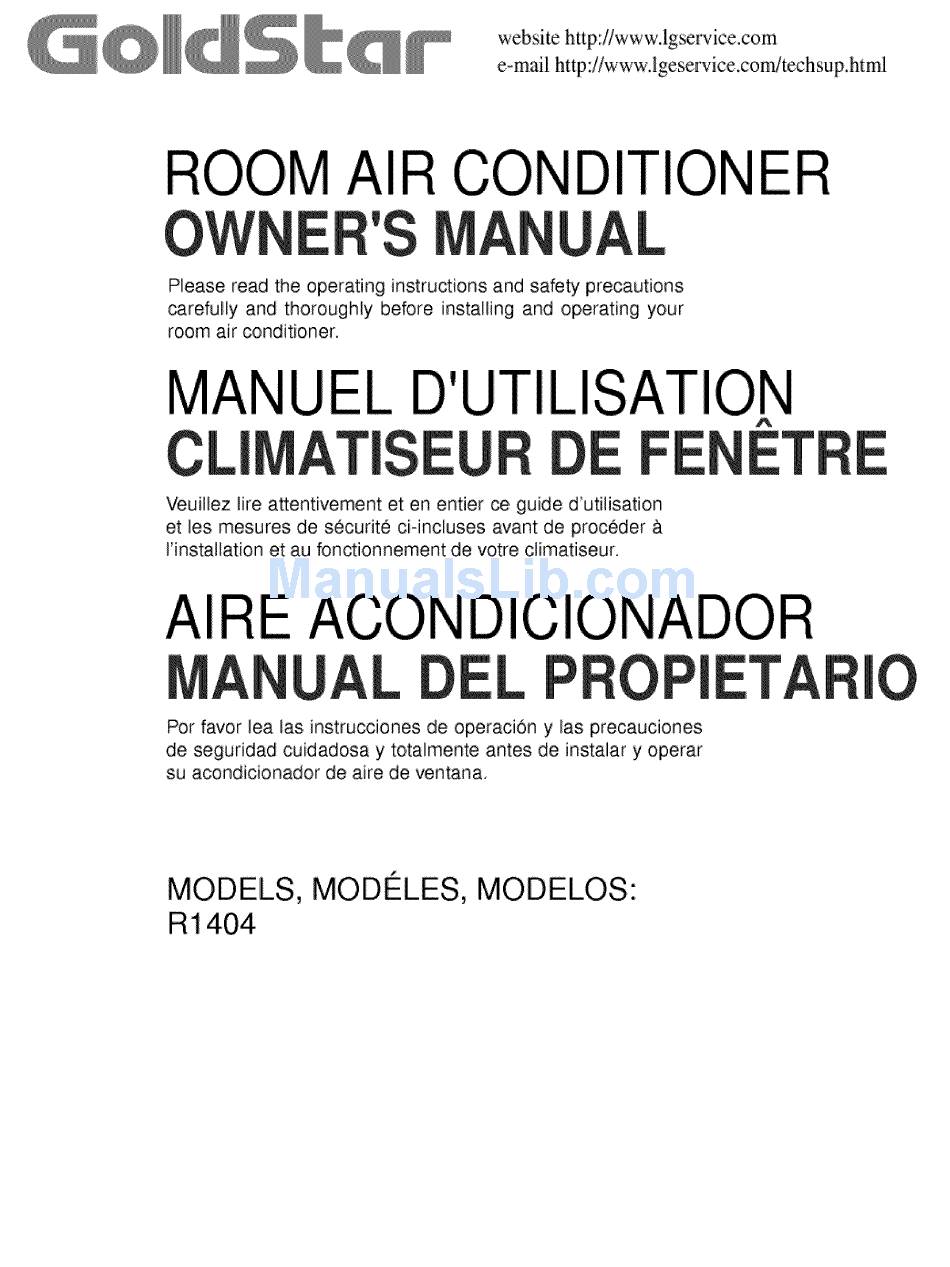

- Page 1 website http:://www.lg_rvice.com e-mail http://wwwJgeservice.com/tec:hsup,html Please read the operating instructions and safety precautions carefully and thoroughly before installing and operating your room air conditioner. MANUEL 'UTILISATI ET E TISE E FE Veuillez life attentivement et en entier ce guide d'utflisation et les mesures de securite ci-incluses avant de proceder...
- Page 2 TABLE OF CONTENTS FEATURES ............................SAFETY PRECAUTIONS ........................OPERATING ............................FUNCTION ........................... VENTILATION ..........................TO CONTROL AIR DIRECTION ....................HOW TO SECURE THE DRAIN PIPE ..................AIR FILTER CLEANING ....................... HOW TO USE THE REVERSIBLE INLET GRILLE ..............ELECTRICAL DATA ........................... BEFORE CALLING FOR SERVICE...
- Page 3 Toprevent injurytotheuserorotherpeople andpropert'j damage, thefo ownginstructions must b efol- lowed. m Incorrect operation due to ignoring of instruction will cause harm or damage. The seriousness is classified by the following indications. WARNING ,--_ This symbol indicates the possibility of death or serious injury. cAUT'ON "...
- Page 4 c Io.l ° Since the fan rotates at • An oxygen shortage may * _tmay cause an iniury. • Water may enter the unit high speed dudng oper- and degrade the insula- o_ur ation, it may cause an tion. It may cause an injury.
- Page 5 OPERATING • CAUTION When the air conditioner has been performing its cooling operation and is turned off or set to the fan position, wait at least 3 minutes before resetting to the cooling operation again. FUNCTION Cfff - Turns air conditioner off. High Med Fan -Med speed fan operation without cooling.
- Page 6 TheventilationlevermustbeCLOSEpositionin orderto maintain the bestcoolingconditions. Whenfreshair is necessary in the room,set the ventilation leverto the OPENposition. Thedamperis openedand roomair is exhausted. Part NOTE: Before using the ventilation feature, make a ventilation kit. First, pull down part @ to horizontal line with part ®. TO CONTROL AIR DIRECTION The direction of air can be controlled...
- Page 7 AIR FILTER CLEANING The air filter should be checked at least twice a month to see if cleaning is necessary. Trapped particles in the filter will build up and block the airflow. This reduces the cooling capacity and also causes an accumulation of frost on the cooling coils.
- Page 8 ELECTRICAL DATA Line Cord Plug Use Wall Receptacle Power Supply Use 15 AMP, time circumstances, cut or Do not, under any delay fuse or circuit remove the grounding prong breaker. from the plug. Power supply cord with Standard 125V, 3-wire grounding 3-prong grounding plug receptacle...
- Page 9 SELECT THE BEST LOCATION 2. Install the unit a little slanted so the back is slightly lower than the front(about i/2"). 1. To prevent vibration and noise, make sure the This will force condensed water to flow to the unit is installed securely and firmly outside, 2.
- Page 10 SUGGESTED TOOL REQUIREMENTS LEVEL I SCREWDRIVER(+, -), RULLER, KNIFE, HAMMER, PENCIL, PREPARATION OF CHASSIS Shipping screws 1. Remove the screws which fasten the cabinet at both sides and at the back,_ 2, Slide the unit from the cabinet by gripping the base pan handle and pulling forward while bracing the cabinet.
- Page 11 3. Looselyassemblethe sillsupportusingthe parts in Fig.3. 4. Selectthe positionthatwill placethesill supportnearthe outermostpointon sill (SeeFig.4) Screw(Type A) @ Frame Guide @ NOTE: Be careful when you install the cabinet • io ..(frame guides @ are broken so easily). 5. Attach the sill support to the cabinet track hole in relation to the seiected position using...
- Page 12 10. Slide the unit into the cabinet.(See Fig. 7) CAUTION: For security purpose, reinstalU screws(_pe A) at cabinet's sides..Power cord Screw(Ty_ Fig. Screw(Type 11. Cut the foam-strip ® to the proper !ength and insert between the upper window sash and the lower window sash.
- Page 13 ELECTRICAL SAFETY Because of potential safety hazards, we strongly IMPORTANT discourage the use of an adapter plug. However, if you wish to use an adapter, a TEMPORARY (PLEASE READ CAREFULLY) CONNECTION may be made. Use UL-listed adapter, available from most local hardware FOR THE USER'S PERSONAL store(Fig.
