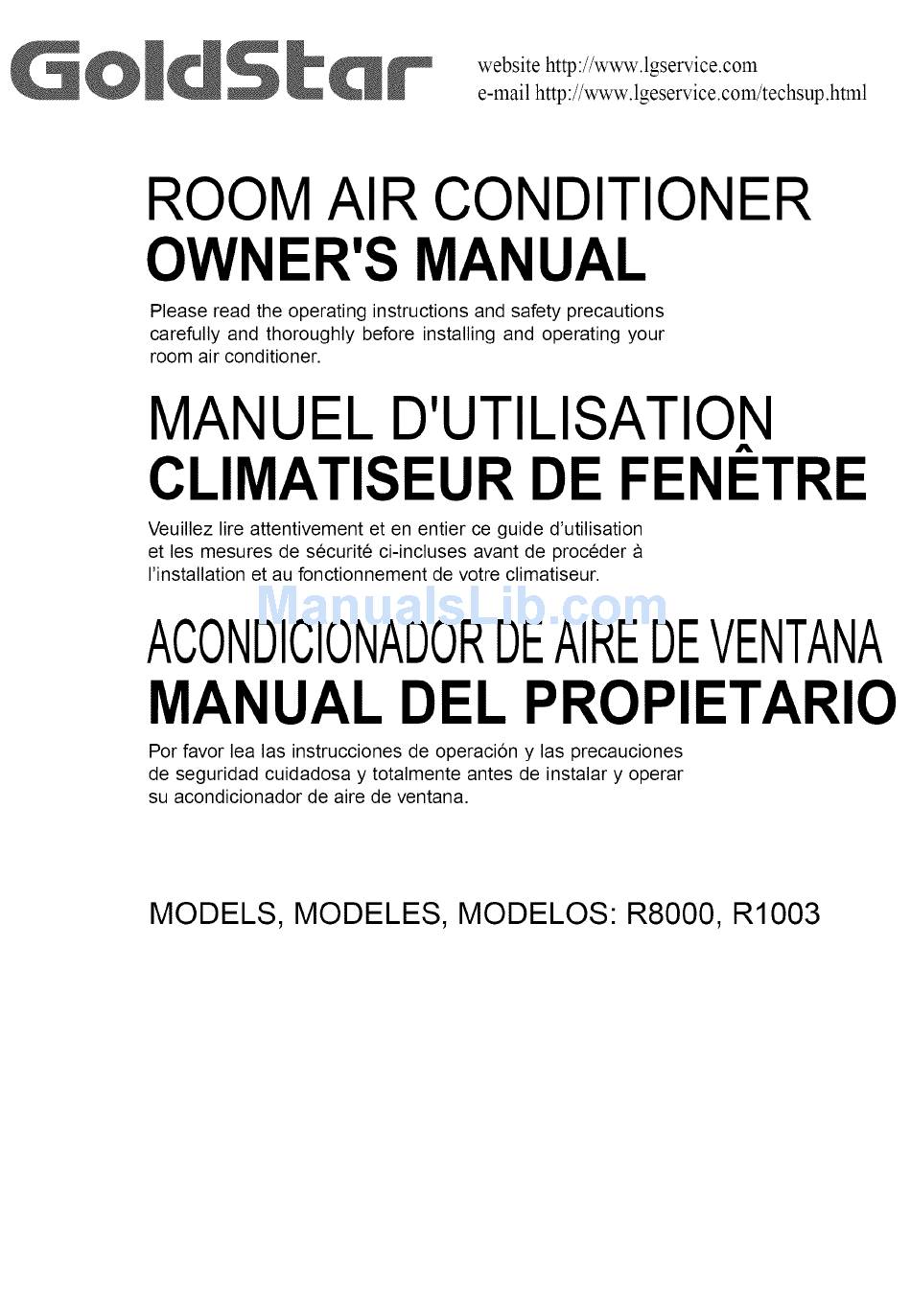

ROOM AIR CONDITIONER
OWNER'S MANUAL
Please read the operating instructions and safety precautions
carefully and thoroughly before installing and operating your
room air conditioner.
MANUEL D'UTILISATION
CLIMATISEUR DE FENI_TR
Veuillez lire attentivement et en entier ce guide d'utilisation
et les mesures de s6curit6 ci-incluses avant de proc6der
I'installation et au fonctionnement
de votre climatiseur.
ACONDICIONADOR
DE AIRE DE VENTANA
MANUAL DEL PROPIETARIO
Por favor lea las instrucciones
de operaci6n y las precauciones
de seguridad cuidadosa y totalmente antes de instalar y operar
su acondicionador
de aire de ventana.
MODELS, MODELES, MODELOS:
R8000, R1003
