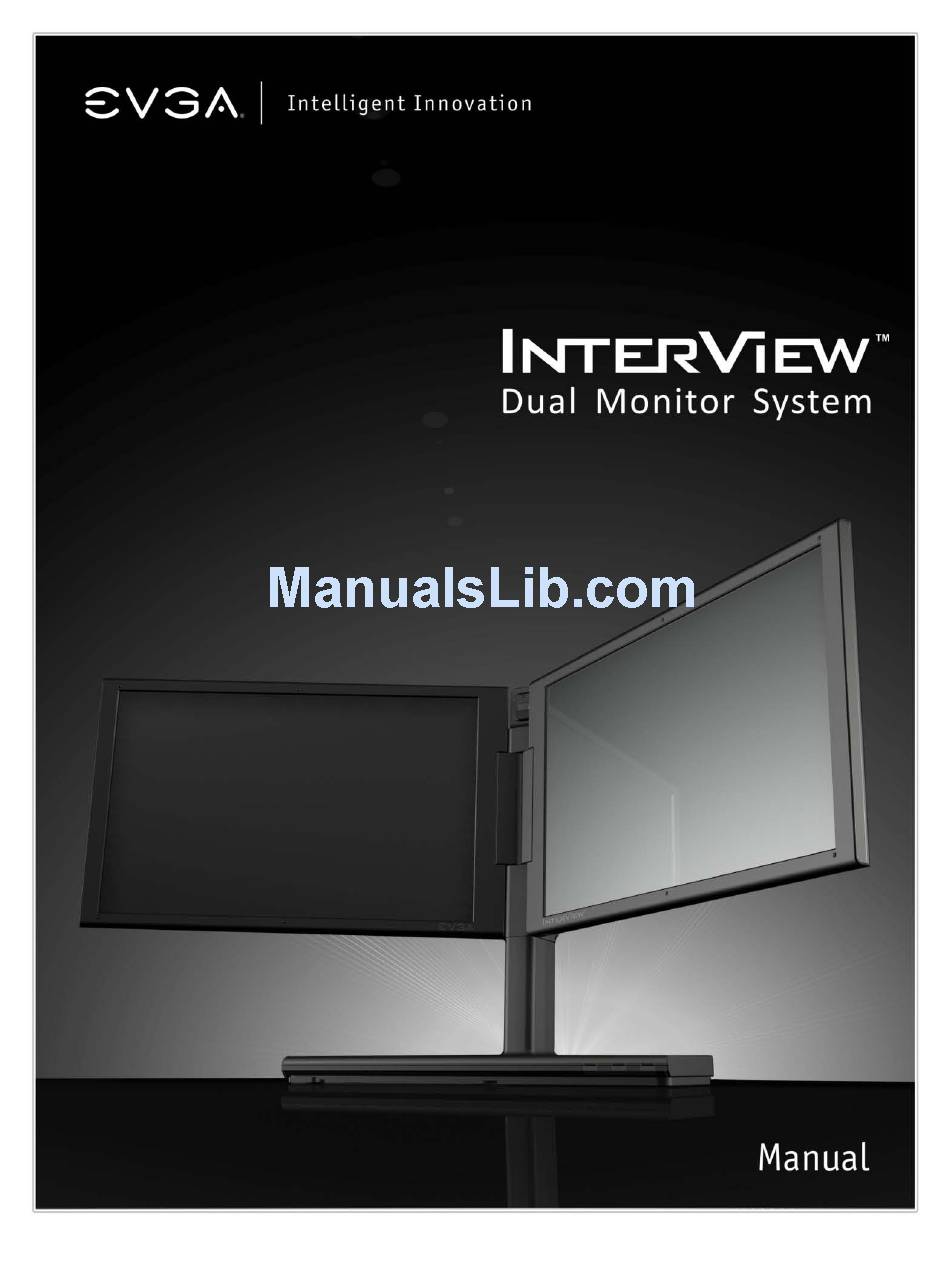

EVGA InterView 200-LM-1700 User Manual

EVGA InterView 200-LM-1700 User Manual

Dual – 17 inch – lcd panels dual monitor system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the InterView 200-LM-1700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EVGA InterView 200-LM-1700

Summary of Contents for EVGA InterView 200-LM-1700

  • Page 2: Table Of Contents

    PRODUCT OVERVIEW ... 4 What’s Included ... 4 Safety Instructions ... 5 Product Views ... 6 INTERVIEW SPECIFICATIONS ... 9 InterView Technical Specifications ... 9 Preset Timing Modes ... 10 Power Management Modes ... 10 SETTING UP INTERVIEW ... 11 Steps to Assembling InterView ...
  • Page 3 Warranty Terms and Conditions ... 31 COMPLIANCE INFORMATION ... 33 FCC Notice ... 33 LEGAL INFORMATION ... 34 Trademark Information ... 34 Software License Agreement ... 34 Rights ... 34...

  • Page 4: Product Overview

    1. PRODUCT OVERVIEW 1.1 What’s Included The following items are included with InterView: InterView Monitor: Dual – 17 Inch – LCD Panels InterView Multiplatform Control Base AC Power Adapter Power Cord DMS to DUAL DVI-I Signal Cable DVI-I to VGA Adapter Microphone Audio Cable USB Cable Visual Guide...

  • Page 5: Safety Instructions

    1.2 Safety Instructions Safe Environment Do not store or use the InterView in locations that are exposed to heat, extreme cold, high humidity or dusty environment. Room temperature conditions are recommended. Do not subject InterView to severe vibrations or high impact conditions. Do not allow water or other liquids to spill on or into InterView.

  • Page 6: Product Views

    1.3 Product Views Panel Front View Integrated Webcam Balance Bar Multiplatform Control Base Integrated 3-Port USB 2.0 Hub 17 Inch LCD Panels...
  • Page 7 Control Base Front View 1. Power Button 2. Power Light Indicator (Left Panel) 3. Power Light Indicator (Right Panel) 4. Panel Selection Button 5. Brightness Adjust (Down) 6. Brightness Adjust (Up) 7. Auto Adjust 8. Integrated Microphone...
  • Page 8 Control Base Back View 1. USB to PC Port 2. Microphone Jack 3. DMS Port 4. AC Power Connector...

  • Page 9: Interview Specifications

    Bezel Opening Dimension Weight Environmental Operating Temperature Humidity Non-operating Temperature Humidity EVGA InterView 1700 17’’Wide TFT 367.20 mm 229.50 mm 31.5 kHz to 81.1 kHz 56 Hz to 76 Hz 20° / 35° (CR=10) 45° / 45° (CR=10) 0.255 X 0.255 mm 220 typ.

  • Page 10: Preset Timing Modes

    2.2 Preset Timing Modes The screen will be adjusted automatically when the signal transferred from the computer is the same as the following Preset Timing Modes. If your display mode is not listed, it is not supported by this monitor; the screen may go blank while the power LED is on. Horizontal Frequency Display Mode (kHz)

  • Page 11: Setting Up Interview

    3. SETTING UP INTERVIEW Read the safety instructions before setting up the InterView. 3.1 Steps to Assembling InterView 1. Rotate the balance bar out from the bottom of the base: 2. Remove the caps on the stand and the panel: 3.
  • Page 12 4. Push in the button and turn it clockwise to lock up the stand and the panel: 5. Open up the panel: 6. Push the balance bar back into the base:...

  • Page 13: Connecting Interview To A Pc

    3.2 Connecting InterView to a PC Before setting up InterView, you must power down your computer(s). 1. Connect the monitor to a computer(s) using the DMS to Dual DVI-I cord. Note: You can use either the D-Sub plug or the DVI-D plug if there’s no available DVI-I port on your PC.
  • Page 14 4. Power on InterView and the computer(s): Use the audio cable to connect InterView to the MIC or Line-in input of the computer. This is required to use the onboard microphone. 6. Connect InterView to the computer(s) with the USB cable to enable the front USB 2.0 HUB located on the monitor base.

  • Page 15: Plug And Play Compatibility

    3.3 Plug and Play Compatibility You can use InterView with any Plug and Play compatible system. The system configures itself and optimizes the display’s settings. In most cases, InterView‘s installation is automatically processed unless the user intervenes.

  • Page 16: How To Adjust Interview

    4. HOW TO ADJUST INTERVIEW 4.1 Rotating/Folding Each panel can rotate 180 degrees. The display will automatically adjust to the correct position. Each panel can be opened and closed 90 degrees horizontally.

  • Page 17: Control Buttons

    4.2 Control Buttons 1. Power Button: Powers the InterView ON or OFF 2. Panel Selection Button: Selects the monitor to be adjusted 3. Brightness Adjust (Down): Decreases brightness levels 4. Brightness Adjust (Up): Increases brightness levels 5. Auto Adjust: Adjusts vertical position, phase, horizontal position, and pixel clock automatically 4.3 Brightness Adjustment Users can adjust the monitor brightness levels from the Brightness (Up/Down) buttons.

  • Page 18: System Requirements And Software Installation

    5. SYSTEM REQUIREMENTS AND SOFTWARE INSTALLATION 5.1 System Requirements Operating Systems Supported: - Windows XP Home Edition - Windows XP Professional - Windows XP Professional X64 Edition - Windows Vista™ - Windows Vista™ 64-bit Hardware: - 64MB of System Memory or more - 50MB Hard Disk space or more Others: - Microsoft DirectX 9.0C...
  • Page 19 (Step 2) Processing Installation Webcam software installation - Click Next, - Click select the application you would like to install, then click Note: For users who select to install both webcam driver and application, the installation will starts from the webcam software then to the webcam driver. Installing the Webcam Application - Select the destination folder then click to start the installation process...
  • Page 20 - Installation in process, the dialogue box will automatically close when the installation completes. Installing the Webcam Driver - Click Install - Click Install...
  • Page 21 Finish - Click then select the option to restart you computer after the installation completes Note: Depending on each user’s PC system and hardware performance, it may take 10 to 15 seconds before entering to the next step, please be patient. Finish - Click to exit the wizard, then the computer will automatically restart.

  • Page 22: Using The Interview Camera Application

    5.3 Using the InterView Camera Application Main Panel Layout Display screen Record Snapshot Color setting page Snapshot setting page Record setting page Misc setting page...
  • Page 23 Color Setting Page This panel allows users to adjust the color settings by dragging the track bars. 1. Brightness adjustment 2. Contrast adjustment 3. Hue adjustment 4. Saturation adjustment 5. Sharpness adjustment 6. White balance adjustment 7. Gamma adjustment 8. Color / Gray scale 9.
  • Page 24 Snapshot Setting Page The InterView webcam application allows users to capture a single photo as well as continuous shooting. In this panel, the application allows users to set snapshot functions, such as time intervals and output formats. 1. Photo quantity for continuous shooting (1-30) 2.

  • Page 25: Record Setting Page

    Record Setting Page This panel allows adjustments to the recording function of the webcam. 1. Select the audio device to be captured 2. Select the audio recording source. Ex: Microphone 3. Select the audio encoder to encode the audio stream 4.
  • Page 26 Misc Setting Page Within this panel, users can adjust settings that control different aspects of the image. 1. Video Flip: Flips the video horizontally/vertically 2. Exposure control - Low Light: avoid under-exposure in low light environment - High Light: avoid under-exposure in high light environment. 3.

  • Page 27: Troubleshooting

    6. TROUBLESHOOTING 6.1 Self-Test Feature Check Self-Test Feature Check (STFC) allows users to check if the monitor works properly. Turn off both your computer and the monitor Unplug the DMS cable from the back of the computer Turn on the monitor If the monitor is functioning properly, you will see a box in the illustration below This box appears during normal operation if the video cable becomes disconnected or damaged.
  • Page 28 Wavy picture or fine movement LCD screen has spots LCD screen has bright spots Picture too dim or too bright Screen not centered correctly Screen has one or more lines Screen is scrambled or appears torn Visible signs of smoke or sparks Monitor malfunctions on &...
  • Page 29 Picture missing color Picture color not good Faint shadow from the static image displayed appears on the screen Perform monitor self-test feature check • Check connection integrity at both end of the video cable • Check for bent or broken pins •...

  • Page 30: Service Information

    -Product Name & Part Number -UPC Number -Serial Number The EVGA Advanced RMA (EAR) Program is a program to protect yourself and your product in the case of product failure. For more details please visit: 7.2 Pixel Policy The EVGA monitor is evaluated on the number of acceptable non-performing pixels and the distance between each non-performing pixels.

  • Page 31: Warranty Terms And Conditions

    (e) by modification of the monitor; (f) by the serial number or product code sticker being removed or defaced; (g) as a result of a service rendered by anyone other than EVGA authorized service centre or its authorized service agents (h) as a result of the monitor not being operated in conformity with EVGA’s user manual.
  • Page 32 8. Software related faults resulting from incorrect software installation or usage or software viruses or software inherent bugs shall not be considered as product faults and may incur a charge for rectification.

  • Page 33: Compliance Information

    The following information is provided on the device or devices covered in this document in compliance with the FCC regulations: Product name: Dual Monitor System Model number: EVGA InterViewTM 1700 Company name: EVGA® Corporation 2900 Saturn Street, Suite B Brea, California, 92821 USA...

  • Page 34: Legal Information

    Software and materials must be immediately returned to EVGA and the Original Purchaser shall be liable to EVGA CORP for any and all damages suffered as a result of the violation or default.

This manual is also suitable for:

Interview 1700
