Troy-Bilt OEM-290-252 Operator's Manual

THANK
Thanks for buying new bolo tines. These tines were designed for your model tiller and
will handle all of your tilling needs including sod busting, seedbed preparation,
YOU!
cultivating, and turning under crop residue.
These instructions apply only
to owners of the following
tillers:
❒ BRONCO
Model
TM
❒ SUPER BRONCO
❒ TUFFY
®
Model
Carefully look at the figures
on the opposite side of this
page while following the
instructions.

Tools Needed

❒ Wrenches (two 9/16 inch)
❒ Screwdriver (medium-sized)
❒ Soft Rubber Mallet
❒ Penetrating Oil
CAUTION
Tine edges can be sharp and
can have slivers that could
cause personal injury. Use
care at all times when
handling tines. The tine hood
edges may also be sharp. To
prevent personal injury, wear
thick gloves when touching
the edges of the hood.
Installation Instructions
CHECK YOUR PARTS
Be sure to check the contents of your kit to make sure that everything is
present. Refer to Figure 1 to distinguish a right-hand tine from a left-hand tine.
The Bolo Tine Kit includes the following parts:
Model
TM
Part No.
GW-50049-01
GW-50049-02
1901447
710-0514
712-0798
736-0169
WARNING
To prevent serious personal injury when removing or installing your bolo
tines:
• Stop the engine, and remove the electric start key (if your tiller features
electric start).
• Let the engine and muffler area cool.
• Disconnect the spark plug wire, and position the wire away from the plug
to prevent accidental starting.
Blunt
Edge

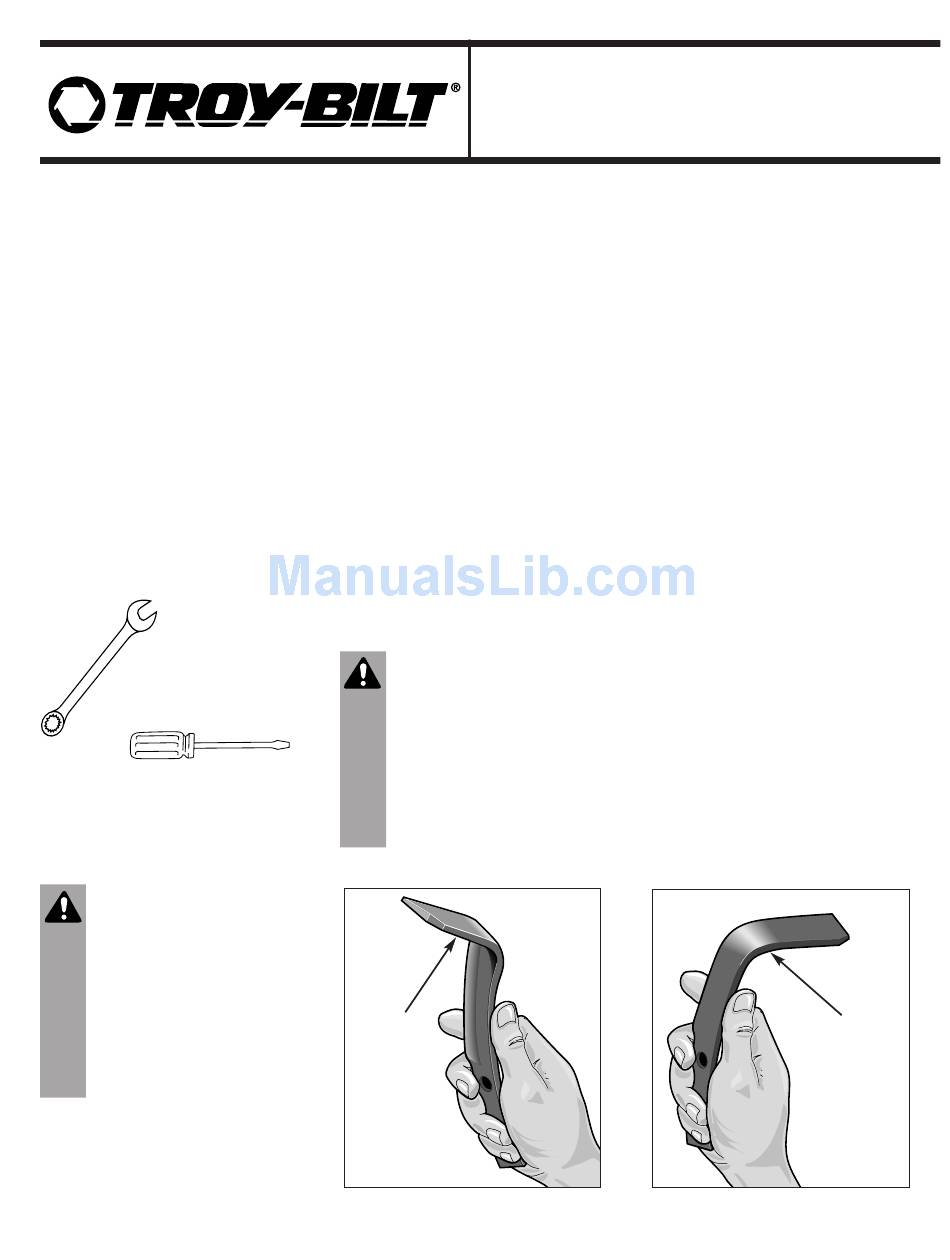

Figure 1: Left-hand tine & Right-hand tine
Bolo Tine Kit
OEM-290-252 / 290-252-081
for BRONCO , SUPER BRONCO
TM
Description
Bolo Tine, Right-hand....................................8
Bolo Tine, Left-hand ......................................8
Hardware Kit
Hex Screw, 3/8-16 x 1.0 ................................16
Hex Nut, 3/8 ..................................................16
Lock Washer, 3/8...........................................16
,and TUFFY Tillers
TM ®
Qty.
Blunt
Edge
