Summary of Contents for Ariens 936048

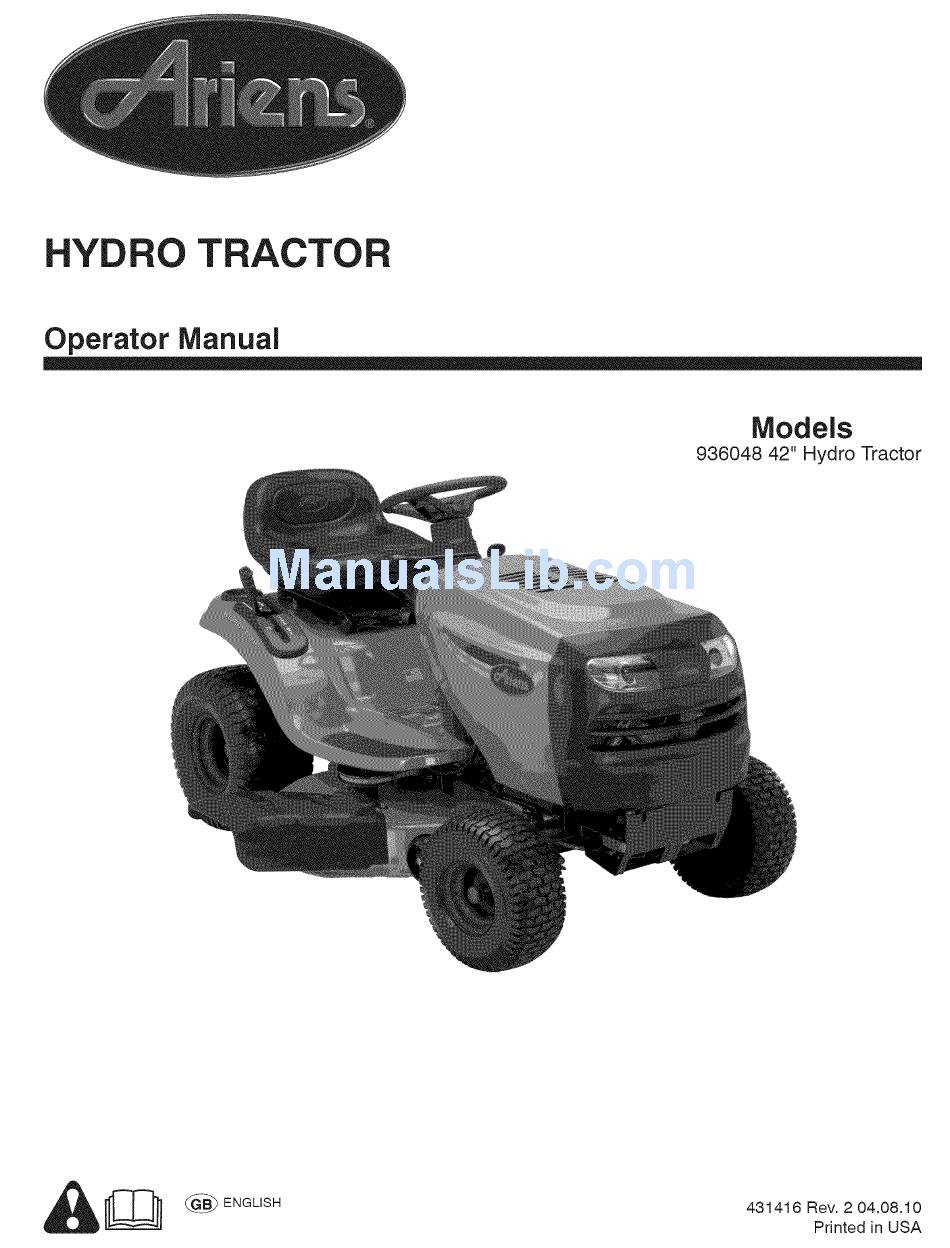

- Page 1 YDRO TRACTO Operator Manual Models 936048 42" Hydro Tractor 431416 Rev. 2 04.08.10 _ ENGL,SH Printed in USA...
- Page 2 SAFETY RULES Safe Operation Practices for Ride=On Mowers DANGER: THiS CUTTING MACHINE iS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY iNSTRUCTiONS COULD RESULT iN SERIOUS iNJURY OR DEATH. • Slow down before turning. WARNING: in orderto prevent accidental •...
- Page 3 SAFETY RULES & Safe Operation Practices for Ride=On Mowers ill. CHILDREN GENERAL SERVICE Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to • Never operate machine in a closed area. the machine and the mowing activity.
- Page 4 PRODUCT SPECiFiCATiONS CONGRATULATIONS on your purchase of a new tractor. It has been designed, engineered and manufactured to give you the best possible dependability and performance. Gasoline Capacity 1.50 Gallons And Type: Unleaded Regular Should you experience any problem you can not easily rem- edy, please contact your nearest authorized service center/ Oil Type (Api-Sg-SI): SAE 10W-30 (Above 32°F)
- Page 5 UNASSEMBLED PARTS Steering Wheel (1) Lock "_f "X, Washer Steering (1) Large Wheel Insert Flat Washer Steering Wheel \ _l (1) Hex Bolt Steering Extension Steering Wheel "'J-_ Shaft Adapter Steering Boot Seat (1) Washer (1) Knob (1) Seat Slope Sheet (1) Oil Drain Tube For Future Use Key(s)
- Page 6 ASSEMBLY Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to ensure proper tightness.
- Page 7 ASSEMBLY CHECK TIRE PRESSURE INSTALL SEAT (See Fig. 3) Adjust seat before tightening adjustment knob. The tires on your tractor were overinflated at the factory for shipping purposes. Correct tire pressure is important • Remove adjustment knob and flat washer securing for best cutting performance.
- Page 8 OPERATION These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. REVERSE NEUTRAL HiGH CHOKE FAST SLOW iGNiTiON SWITCH ENGINE OFF REVERSE ENGINE ON ENGINE START PARKING BRAKE PARKING BRAKE PARKING BRAKE OPERATION LOCKED UNLOCKED...
- Page 9 OPERATION KNOW YOUR TRACTOR READ THiS MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference. 03104 Fig. 4 Our tractors conform to the applicable safety standards of the American National Standards Institute.
- Page 10 OPERATION The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields while operating your tractor or performing any adjustments or repairs. We recommend standard safety glasses or a wide vision safety mask worn over spectacles.
- Page 11 OPERATION TO ADJUST MOWER CUTTING HEIGHT TO OPERATE MOWER (See Fig. 9) Your tractor is equipped with an operator presence sensing switch. Any attempt by the operator to leave the seat with The position of the attachment lift lever (A) determines the the engine running and the attachment clutch engaged will cutting height.
- Page 12 OPERATION REVERSE OPERATION SYSTEM (ROS) • Move motion control lever to neutral position. • Pull freewheel control out until the free wheel control Your tractor is equipped with a Reverse Operation System rod locks in extended position. (ROS). Any attempt by the operator to travel in the reverse •...
- Page 13 OPERATION MOWING TiPS TO START ENGINE (See Fig. 4) • Tire chains cannot be used when the mower housing When starting the engine for the first time or if the engine is attached to tractor. has run out of fuel, it will take extra cranking time to move fuel from the tank to the engine.
- Page 14 MAINTENANCE BEFORE EVERY EVERY EVERY EVERY EVERY BEFORE MAINTENANCE EACH SEASON STORAGE SCHEDULE HOURS HOURS HOURS HOURS v" Check Brake Operation v" Check Tire Pressure v" Check Operator Presence & ROS Systems v" =,,,, v" Check for Loose Fasteners Check/Replace Mower Blades v"...
- Page 15 MAINTENANCE BLADE CARE TRACTOR For best results mower blades must be kept sharp. Replace Always observe safety rules when performing maintenance. bent or damaged blades. BRAKE OPERATION proved by the manufacturer of your tractor. If tractor requires more than five (5) feet to stop at highest Using a blade not approved by the manu= AUTION: Use only a replacement blade ap-...
- Page 16 MAINTENANCE V=BELTS Check V-belts for deterioration and wear after 100 hours © of operation and replace if necessary. The belts are not adjustable. Replace belts if they begin to slip from wear. DRAIN PLUG TRANSAXLE MAINTENANCE The transaxle was sealed at the factory and fluid mainte- nance is not required for the life of the transaxle.
- Page 17 MAINTENANCE MUFFLER CLEANING Clean engine, battery, seat, finish, etc. of all foreign Inspect and replace corroded muffler and spark arrester (if matter. equipped) as it could create a fire hazard and/or damage. • Clean debris from steering plate. Debris can restrict SPARK PLUGS clutch/brake pedal shaft movement, causing belt slip...
- Page 18 SERVICE AND ADJUSTMENTS WARNING: TO AVOID SERIOUS iNJURY, BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS: Depress brake pedal fully and set parking brake. Place motion control lever in neutral position. Place attachment clutch in "DISENGAGED" position. Turn ignition key to "STOP" and remove key. Ensure the blades and all moving parts have completely stopped.
- Page 19 SERVICE AND ADJUSTMENTS • ATTACH MOWER SIDE SUSPENSION ARMS (A) TO • Insert end of link (E) into hole in front mower bracket CHASSIS - Position hole in arm over pin (B) on outside and secure with washer and retainer spring (J). of tractor chassis and secure with retainer spring.
- Page 20 SERVICE AND ADJUSTMENTS TO LEVEL MOWER • If adjustment is necessary, see step in Visual Adjust- ment instructions above. Ensure tires are properly inflated to the PSI shown on tires. • Recheck measurements, adjust if necessary until both If tires are over or under inflated, it may affect the appear- sides are equal.
- Page 21 SERVICE AND ADJUSTMENTS TO REPLACE MOWER BLADE DRIVE BELT TO REPLACE MOTION DRIVE BELT (See Fig. 31) (See Fig. 32) The mower blade drive belt may be replaced without tools. Park the tractor on level surface. Engage parking brake. Park the tractor on level surface. Engage parking brake.
- Page 22 SERVICE AND ADJUSTMENTS TRANSAXLE MOTION CONTROL LEVER TO CHECK BRAKE NEUTRAL ADJUSTMENT (See Fig. 33 and 34) If tractor requires more than five (5) feet to stop at highest speed in highest gear on a level, dry concrete or paved The motion control lever has been preset at the factory surface, then brake must be serviced.
- Page 23 SERVICE AND ADJUSTMENTS TO START ENGINE WiTH A WEAK BATTERY REPLACING BATTERY (See Fig. 37) (See Fig. 36) WARNING: Lead=acid batteries generate terminals by allowing a wrench or any explosive gases. Keep sparks, flame and WARNING: other object to contact both terminals Do not short battery...
- Page 24 SERVICE AND ADJUSTMENTS TO REPLACE HEADLIGHT BULB ENGINE Raise hood. TO ADJUST THROTTLE CONTROL CABLE • Pull bulb holder out of the hole in the backside of the grill. The throttle control has been preset at the factory and • Replace bulb in holder and push bulb holder securely adjustment should not be necessary.
- Page 25 STORAGE ENGINE Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more. FUEL SYSTEM iMPORTANT: IT IS IMPORTANTTO PREVENTGUM DEPOSITS FROM FORMING IN ESSENTIAL FUEL SYSTEM PARTS SUCH gasoline in the tank inside a building AS CARBURETOR, FUEL FILTER, FUEL HOSE, OR TANK...
- Page 26 TROUBLESHOOTING CAUSE CORRECTION PROBLEM Out of fuel. Fill fuel tank. Wi[[ not start Engine not "CHOKED" properly. See "TO START ENGINE" in Operation section. Engine flooded. Wait several minutes before attempting to start. Bad spark plug. Replace spark plug. Dirty air filter. Clean/replace air filter.
- Page 27 TROUBLESHOOTING CAUSE CORRECTION PROBLEM Check wiring, switches and connections. If not Engine continues Faulty operator-safety presence control corrected, contact an authorized service center/ system. to run when oper= department. ator leaves seat with attachment clutch engaged 1. Worn, bent or loose blade. Replace blade.
- Page 28 SERVICE NOTES...
- Page 29 SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION ONLY RIDE UP AND DOWN HILL, NOT ACROSS HILL 15 DEGREES MAX. down the face of slopes, never across the face. Do not mow WARNING: To avoid serious injury, operate your tractor up and slopes greater...
- Page 30 Ariens brand consumer tractors will be free from defects in material and workmanship for a period of two years after the date of purchase. An authorized Ariens dealer will repair any defect in material or workmanship, and repair or replace any defective part, subject to the conditions, limitations and exclusions set forth herein.
- Page 31 LIMITATION OF REMEDY DAMAGES Ariens Company's liability under this warranty, and under any implied warranty that may exist, is limited to repair of any defect in workmanship, and repair or replacement of any defective part. Ariens shall not be liable for incidental, special, or consequential damages (including lost profits).
- Page 32 Ariens Company 655 West Ryan Street Brillion, Wl 54110-1072 800-317-5898 www.ariens.com _IL WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
