Reset Procedure If Trouble Occurs; Specifications - Sharp PW-E560 Operation Manual

Reset procedure if trouble occurs

Exposure to a strong physical shock or powerful electrical fields may render the
keys inoperable, to the point that the power cannot be switched on. If such case is
suspected, try following the procedure below.
Reset procedures
1. Press the RESET switch located on the bottom of
the unit, with the tip of a ball-point pen or similar
object. Do not use an object with a breakable or
sharp tip.
The message 'Do you want to initialize?' appears.
2. Press Y to initialize the unit.
• A message 'Initialized!' is momentarily displayed.
• If N is selected, then the unit will not be initialized.
3. Follow the instructions on the screen to select the display language and adjust
the LCD contrast, as well as to set the key sound on/off configuration (see steps
7 through 9 of the procedure on page 3.)
Note:
• The reset procedure will clear the History list, Calculator's memory, and
configuration of the Currency Converter, as well as to reset the Set-up
Menu configuration. To avoid these, you may press N
above.
• Occasionally when corruption of data etc. occurs, the reset procedure may
automatically be initiated upon pressing of the RESET switch or the o
key. When this occurs, the message 'Initialized!' will be displayed, followed by the
display language selection screen. Follow the instructions on the display
language selection screen, as well as to adjust the LCD contrast and set the key
sound on/off configuration.
32

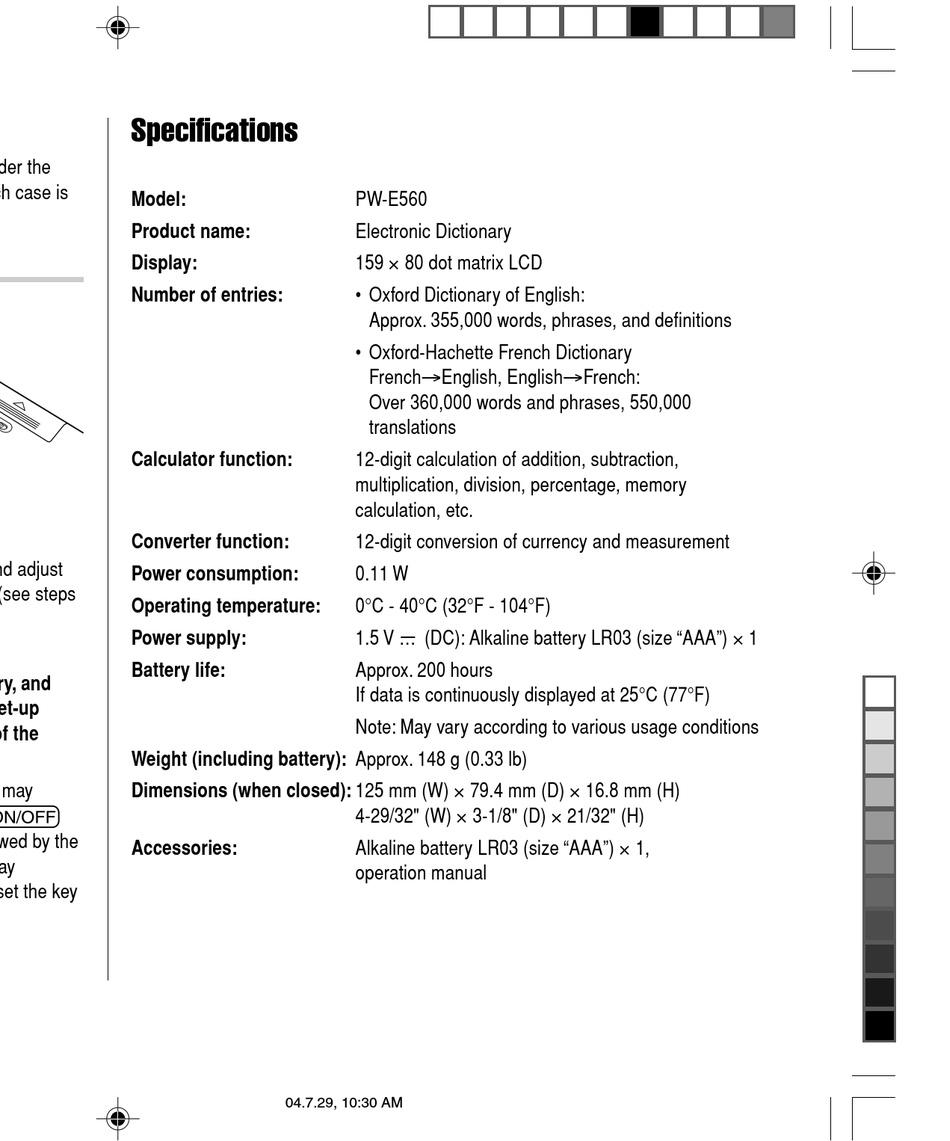

Specifications

Model:
Product name:
Display:
Number of entries:
Calculator function:
Converter function:
Power consumption:
Operating temperature:
Power supply:
Battery life:
N N at step 2 of the N
N
Weight (including battery): Approx. 148 g (0.33 lb)
Dimensions (when closed): 125 mm (W) × 79.4 mm (D) × 16.8 mm (H)
Accessories:
PW-E560
Electronic Dictionary
159 × 80 dot matrix LCD
• Oxford Dictionary of English:
Approx. 355,000 words, phrases, and definitions
• Oxford-Hachette French Dictionary
French→English, English→French:
Over 360,000 words and phrases, 550,000
translations
12-digit calculation of addition, subtraction,
multiplication, division, percentage, memory
calculation, etc.
12-digit conversion of currency and measurement
0.11 W
0°C - 40°C (32°F - 104°F)
1.5 V ... – (DC): Alkaline battery LR03 (size "AAA") × 1
Approx. 200 hours
If data is continuously displayed at 25°C (77°F)
Note: May vary according to various usage conditions
4-29/32" (W) × 3-1/8" (D) × 21/32" (H)
Alkaline battery LR03 (size "AAA") × 1,
operation manual
