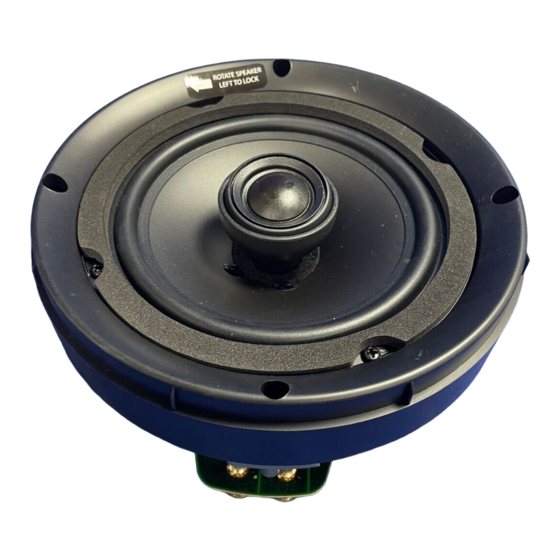

Phase Technology CI-6.0 IX QM Install Instructions

Install instructions for CI round flush mount models:
CI-6.0 IX QM
T E C H N O L O G Y
Thank you for purchasing Phase Technology Custom Installation
speakers. Before installing, please read through this installation
manual thoroughly.
Speaker/baffle
assembly
Grille
Speaker
installation tool
8650 College Boulevard | Overland Park, KS 66210 | (888)phase tk | www.phasetech.com | www.mseaudio.com
Universal flange & grille
assembly (CI-FGR QM)
(purchase separately)
Baffle clamp screw (4x)

Choose the appropriate mounting location for each speaker.

When deciding upon a location, consider the following:
• Make certain your speaker wires can be run to or are accessible from these
locations.
• Make certain the wall or ceiling material is sturdy enough to support the
weight and vibration of the speakers.
• It is recommended that our pre-construction rough-in brackets (part number
RB-17*) be used whenever possible in new construction. A back box (part
number BB-12) is also available.
• Make certain the area behind the speaker is free of obstacles such as wall
studs, electrical wiring, pipes, etc.
• Each speaker should be positioned properly, relative to the listening area
for good coverage.
• Audio performance and room-to-room isolation will be improved if there is
some fiberglass insulation placed loosely behind the speaker.
*The RB-17 rough-in bracket is available for installations in new construction.
Flange clamp
screw (4x)
Flange clamp (4x)
The CI-FGR QM will clamp
material up to 1 / " thick.
1
2
218-1240
