OWNER'S MANUAL & INSTALL GUIDE
R
T E C H N O L O G Y

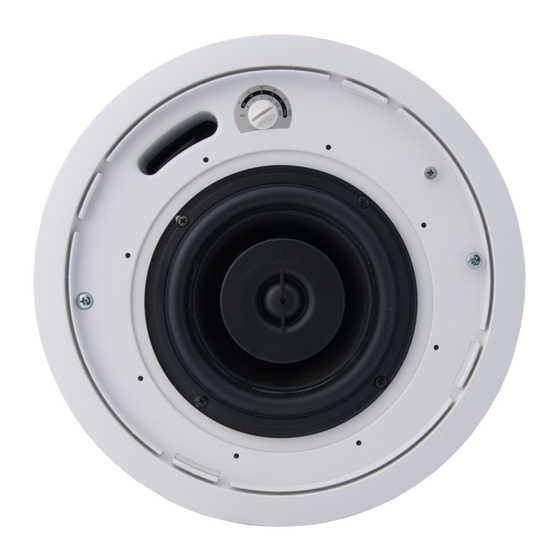

[CI CUSTOM INSTALLATION SERIES] CI1520, CI620 & CI820
CEILING THICKNESS TOLERANCES
MAX: 1.6"
MIN: 0.035"
FLEXIBLE CONDUIT CLAMP
[BOX CONTENTS]
1 SPEAKER
1 FLEXIBLE CONDUIT CLAMP
1 COVER PLATE
1 GRILLE
1 INSTALLATION AID/ PAINT MASK
All CI Series speakers include self-resetting solid-state PTC protection circuits. This unique
system is able to detect when the speaker is being over-driven and lowers the speaker volume
until the problem is corrected. The PTC device then resets itself for normal operation.
Regardless of application, serious audiophile listening or home theater, we recommend that
you take the time to read this manual thoroughly before connecting speakers to your amplifier
or receiver. In the highly unlikely event that you should experience a problem with set-up or
operation, please contact one of our authorized dealers for assistance, or contact us directly.
Phase Technology
Corporation
®
8005 W. 110th St., Suite 208
Overland Park, KS 66210
855.663.5600 (Domestic)
+1.913.663.5600 (International)
913.663.3200 (Fax)

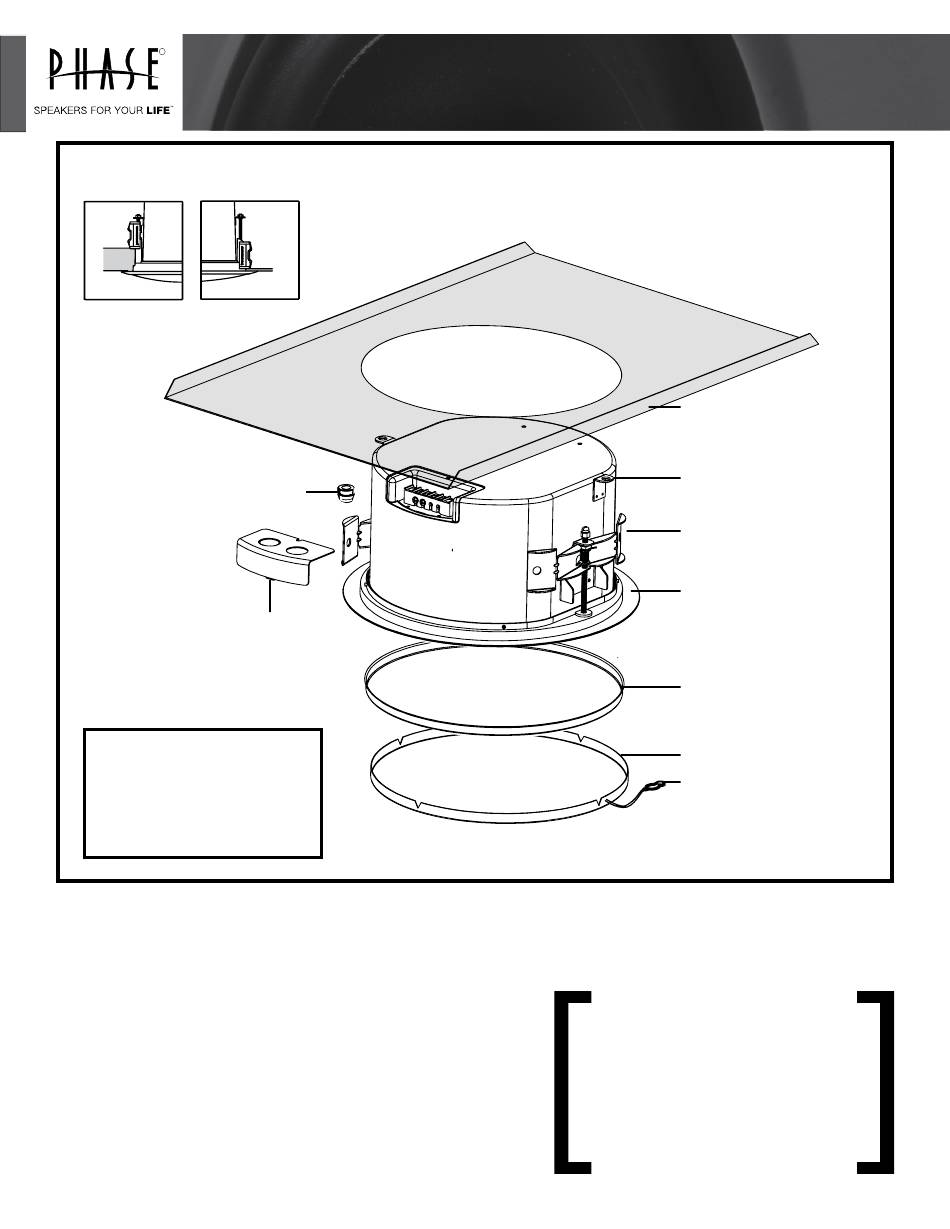

COVER PLATE
TILE BRIDGE
SECONDARY ATTACHMENT
POINT
SPEEDWING
ARMS
BAFFLE
INSTALLATION AID/
PAINT MASK
GRILLE
GRILLE SAFETY RESTRAINT
DROPTILE CEILING INSTALL
SHEETROCK CEILING INSTALL
PRE-CONSTRUCTION BRACKET INSTALL 5
CARING FOR YOUR SPEAKER
MOUNTING
™
2
3
4
5
6
6
6
