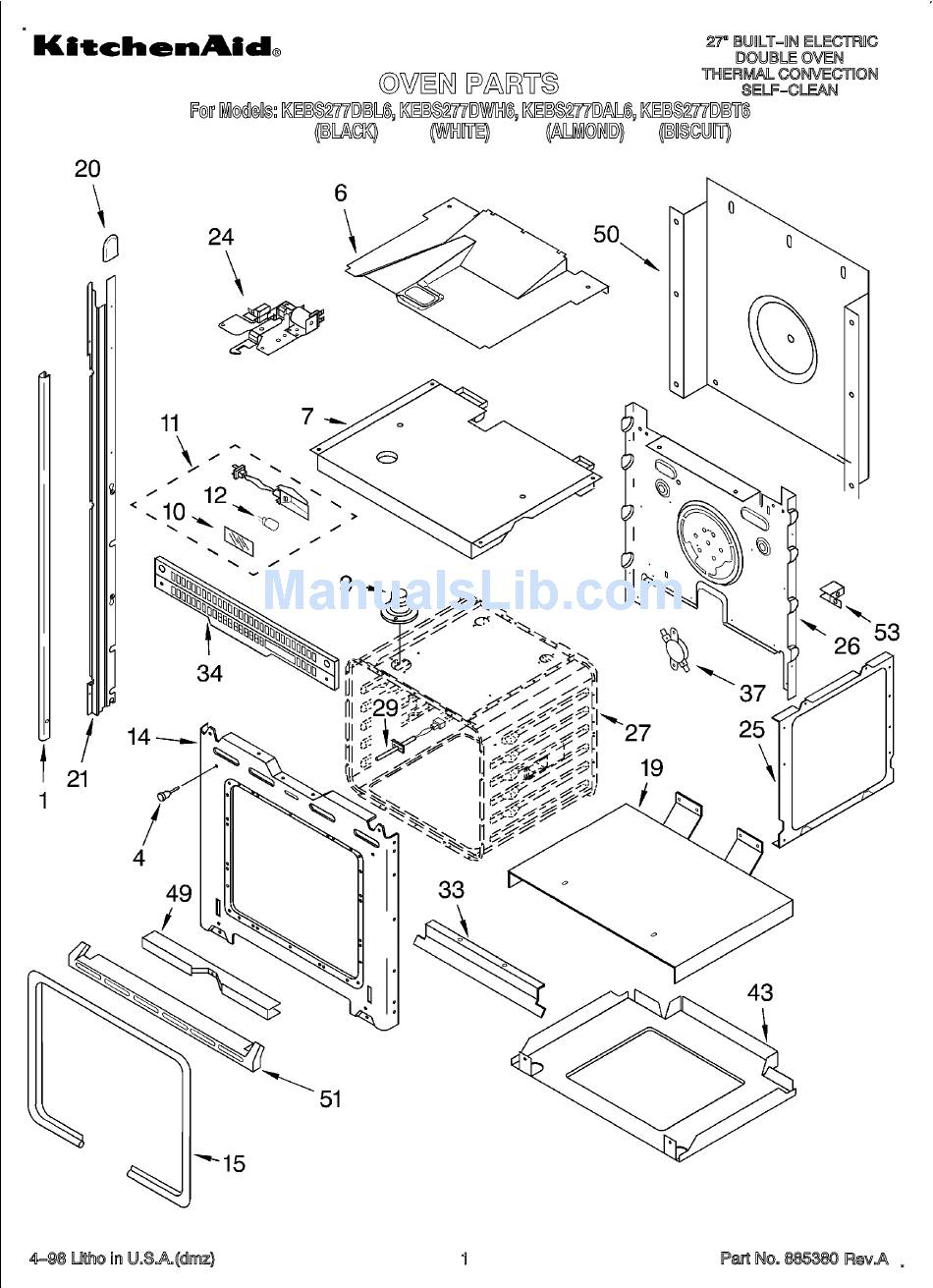

KitchenAid KEBS277DAL6 Parts List

27" built-in electric double oven thermal convection self-clean
Hide thumbs

Advertisement

Quick Links

Advertisement

loading

  Related Manuals for KitchenAid KEBS277DAL6

  Summary of Contents for KitchenAid KEBS277DAL6

  • Page 2 NOTE: The screws and nuts required to attach a part are listed immediately following that part. Trim, Side 4450850 RH Black 4450851 RH White 4450852 RH Almond 4452122 RH Biscuit 4450853 LH Black 4450854 LH White 4450855 LH Almond 4452123 LH Biscuit Screw 4449747...
  • Page 3 4449154 Screw 4451747 Cover, Back 4449809 Screw Trim, Bottom 4448458 Black 4448459 White 4448460 Almond 4452126 Biscuit 4159465 Screw 4449845 Support, Bracket 4449809 Screw FOLLOWING PARTS NOT ILLUSTRATED INSULATION 4449315 Insulation, Wrap 4450364 Insulation, Back...
  • Page 5 NOTE: The screws and nuts required to attach a part are listed immediately following that part. Control Panel Assy. W/Membrane Switch 4451291 Black 4451292 White 4451293 Almond 4451297 Biscuit 4451033 Gasket, Control Panel 4159465 Screw 4448871 Microcomputer 4449745 Screw LITERATURE PARTS LIT4450410 Installation Instructions LIT4450571...
  • Page 7 NOTE: The screws and nuts required to attach a part are listed immediately following that part. 4451718 Door Liner 4451172 Hinge, Door 4449743 Screw 4449253 Glass, Inner 4451721 Insulation, Door 4451670 Retainer, Glass 4449809 Screw 4449257 Glass, Inner Door Glass, Assy 4452071 Black 4452072...
  • Page 9 4452156 Element, Broil 4449154 Screw 3147563 Grill, Broiler 3147845 Pan, Broiler 3181534 Rack, Roasting 4448715 Rack, Oven 4452155 Element, Bake 4448881 Nut, Hex 4451583 Convection Motor 4449154 Screw 4452226 Blade, Fan 4448882 Washer, Lock 4452227 4451355 Jack, Meat Probe 4448948 Probe, Meat 4448722 Tray, Bake...
  • Page 11 NOTE: The screws and nuts required to attach a part are listed immediately following that part. 4451759 Vent, Exhaust 4451758 Foam, Block 4451744 Blower (Upper & Lower) 4449809 Screw 4450328 Transformer, (Lights) 4449809 Screw 4451789 Plate, Mounting 4450291 Transformer, Control 4449809 Screw 4451438...
  • Page 12: Wiring Harness Parts

    242831 Wire (14 Ga. 200 c Red) 242826 Wire (14 Ga. 150 c White) 242827 Wire (14 Ga. 150 c Yellow) 242832 Wire (14 Ga. 200 c Yellow) WIRING HARNESS PARTS 4452239 Harness, Wire (Latch) 4454927 Harness, Wire (Main) 4450953 Conduit 4448664 Clamp...

This manual is also suitable for:

Kebs277dbl6Kebs277dbt6Kebs277dwh6
