KitchenAid KEBS277DAL1 Parts List

27" built−in electric double oven thermal convection self−clean
Hide thumbs


Advertisement

Quick Links

OVEN PARTS

27" BUILT−IN ELECTRIC
DOUBLE OVEN
For Model: KEBS277DBL1, KEBS277DWH1, KEBS277DAL1
THERMAL CONVECTION
(BLACK)
(WHITE)
(ALMOND)
SELF−CLEAN
1−97 Litho in U.S.A.(dmz)
1
Part No. 4174546 Rev C

Advertisement

loading

  Related Manuals for KitchenAid KEBS277DAL1

  Summary of Contents for KitchenAid KEBS277DAL1

  • Page 1: Oven Parts

    OVEN PARTS 27" BUILT−IN ELECTRIC DOUBLE OVEN For Model: KEBS277DBL1, KEBS277DWH1, KEBS277DAL1 THERMAL CONVECTION (BLACK) (WHITE) (ALMOND) SELF−CLEAN 1−97 Litho in U.S.A.(dmz) Part No. 4174546 Rev C...

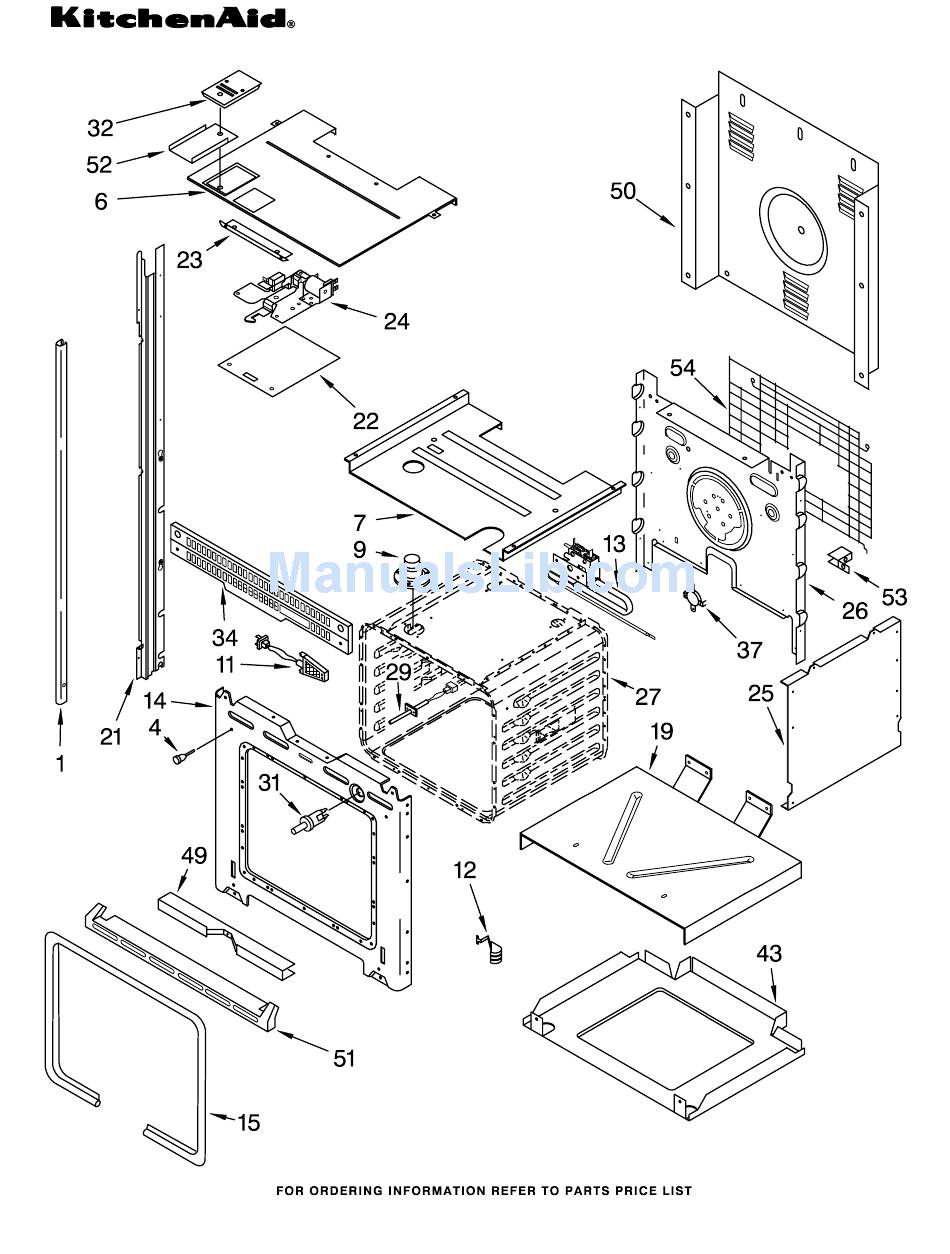

  • Page 2 OVEN PARTS For Model: KEBS277DBL1, KEBS277DWH1, KEBS277DAL1 (BLACK) (WHITE) (ALMOND) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 4450526 Base, Chassis NOTE: The screws and nuts 4450541 Support, Insulation 4449809 Screw required to attach a part are 4449809 Screw listed immediately following 4448933 Retainer, Gasket Rail, Side...
  • Page 3: Control Panel Parts

    CONTROL PANEL PARTS For Model: KEBS277DBL1, KEBS277DWH1, KEBS277DAL1 (BLACK) (WHITE) (ALMOND) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 4451033 Gasket, NOTE: The screws and nuts LITERATURE PARTS Control Panel required to attach a part are 4159465 Screw LIT4450410 Installation listed immediately following 4448871 Microcomputer Instructions...
  • Page 4: Oven Door Parts

    OVEN DOOR PARTS For Model: KEBS277DBL1, KEBS277DWH1, KEBS277DAL1 (BLACK) (WHITE) (ALMOND) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 4449257 Glass, Inner (2) 4448707 Insulation, Sides NOTE: The screws and nuts 4450470 Retainer, Glass 4450361 Shield, Heat required to attach a part are 4449809 Screw 4449809 Screw listed immediately following...
  • Page 5 INTERNAL OVEN PARTS For Model: KEBS277DBL1, KEBS277DWH1, KEBS277DAL1 (BLACK) (WHITE) (ALMOND) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 4450039 Cover, Bake Tray 4448881 Nut, Hex 4448701 Element, Broil 4448952 Convection Motor 4449809 Screw 4449154 Screw 4449154 Screw 4448841 Element, 3147563 Grill, Broiler Convection 3147845 Pan, Broiler...
  • Page 6 TOP VENTING PARTS For Model: KEBS277DBL1, KEBS277DWH1, KEBS277DAL1 (BLACK) (WHITE) (ALMOND) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 4450366 Exhaust Duct 4450658 Back, Control NOTE: The screws and nuts 4449809 Screw 4449809 Screw required to attach a part are 4450291 Transformer, Contorl 4450550 Cover, Top Rear listed immediately following...
  • Page 7: Optional Parts

    OPTIONAL PARTS For Model: KEBS277DBL1, KEBS277DWH1, KEBS277DAL1 (BLACK) (WHITE) (ALMOND) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION WIRING HARNESS PARTS PAINT, TOUCH−UP (1/2oz.) SPLICING WIRES−−25FT. LENGTH 4450951 Harness, S/C 72017 White Switch, Door 261869 Cord Brown 242828 Wire (12 Ga. 488366 Clamp 72032 Black 150 c Black)
