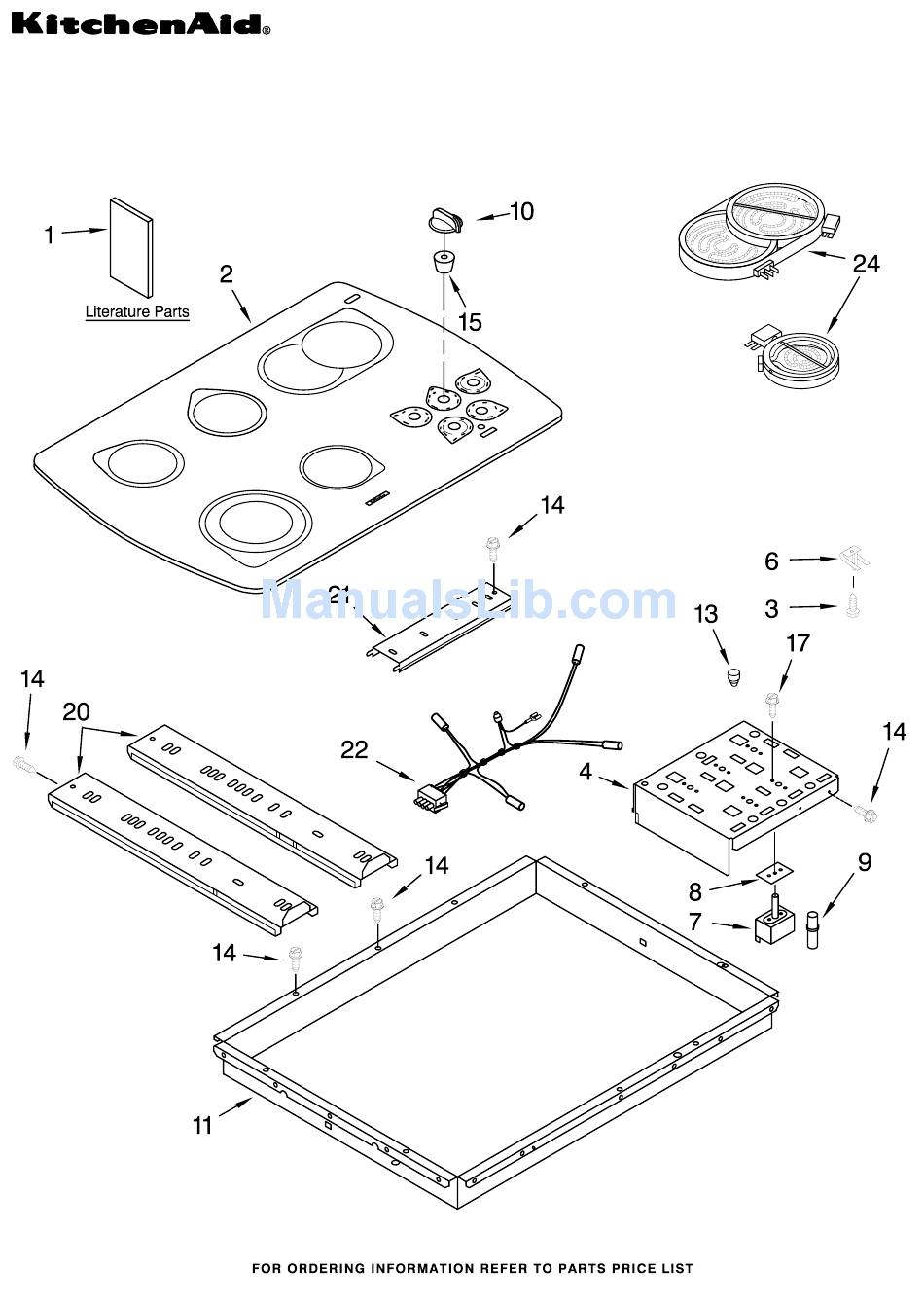

- Page 1 COOKTOP PARTS 36" ELECTRIC BUILT−IN For Models: KECC567GBL1, KECC567GWH1, KECC567GAL1, KECC567GBT1 COOKTOP (Black) (White) (Almond) (Biscuit) 11−99 Litho in U.S.A. (RS) Part No. 8177408...
- Page 2 COOKTOP PARTS For Models: KECC567GBL1, KECC567GWH1, KECC567GAL1, KECC567GBT1 (Black) (White) (Almond) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts Switch, Infinite 4455423 Box, Burner LIT3191771 Installation 3191049 Use W/1500W 3192477 Bumper, Silicone Instructions Left Rear Burner 3196537 Screw LIT3191797 Wiring Diagram 3188516 Use W/1800/1000W...
- Page 3 MISCELLANEOUS PARTS For Models: KECC567GBL1, KECC567GWH1, KECC567GAL1, KECC567GBT1 (Black) (White) (Almond) (Biscuit) Illus. Part DESCRIPTION FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous 3172515 Mtg. Hardware Kit MISCELLANEOUS PARTS SPLICING WIRES−−25FT. LENGTH 242828 Wire, Black 12 Ga. 150 C 242820 Wire, Black 14 Ga. 150 C 242822 Wire, Blue 14 Ga.
