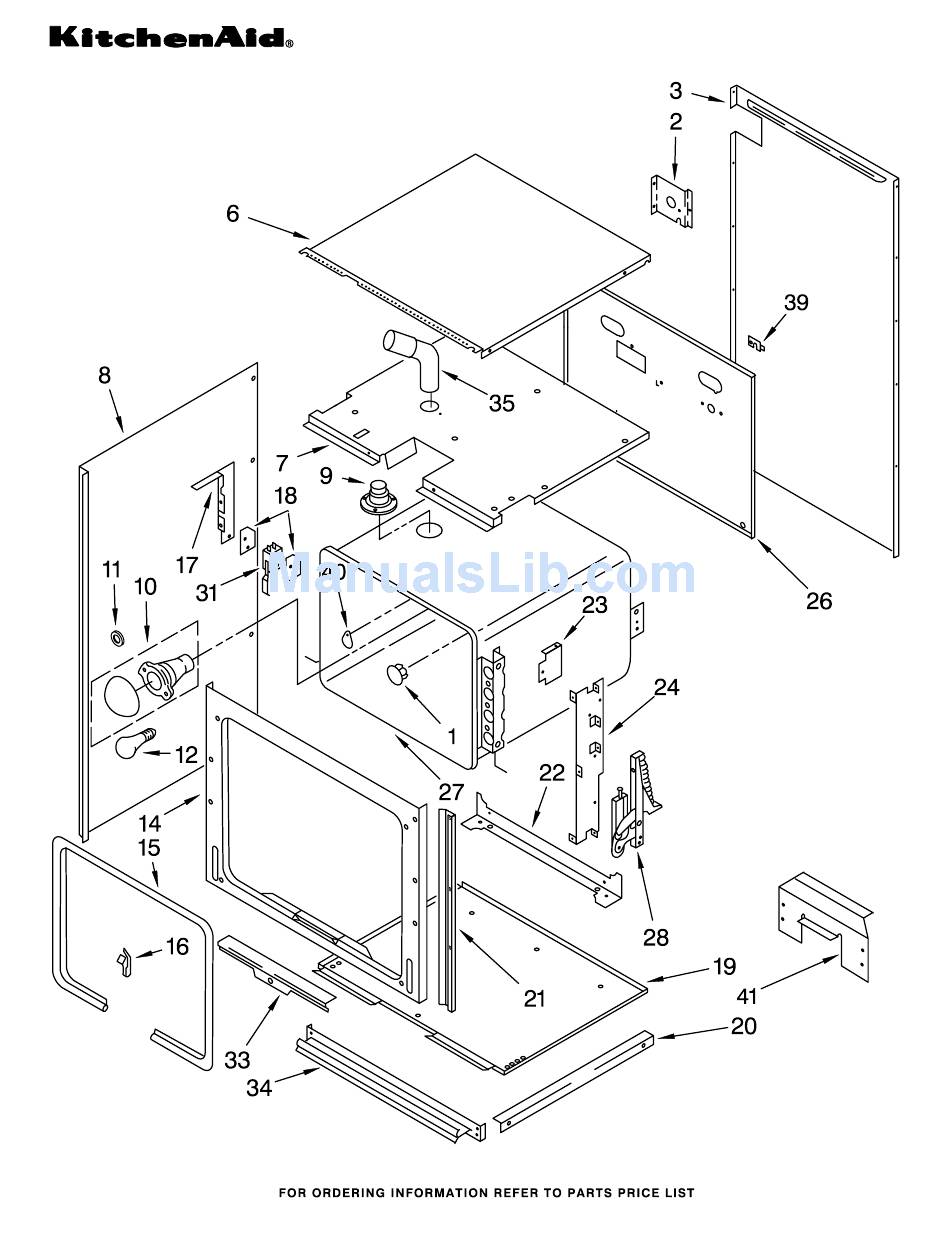

- Page 1 UPPER OVEN PARTS SUPERBA 27" BUILT−IN ELECTRIC For Model: KEBS276BBL0, KEBS276BWH0 DOUBLE OVEN Self Clean Upper and Lower Oven (BLACK) (WHITE) 5−94 Litho in U.S.A.(jcn) Part No. 4174374...
- Page 2 UPPER OVEN PARTS For Model: KEBS276BBL0, KEBS276BWH0 (BLACK) (WHITE) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION NOTE: The screws and nuts 33 3179587 Retainer, Seal 16 3179848 Clip, Oven Seal required to attach a part are Vent, Middle Trim 3177681 Bracket, Switch listed immediately following...
- Page 3 LOWER OVEN PARTS For Model: KEBS276BBL0, KEBS276BWH0 (BLACK) (WHITE) 4174374...
- Page 4 LOWER OVEN PARTS For Model: KEBS276BBL0, KEBS276BWH0 (BLACK) (WHITE) Illus. Part DESCRIPTION NOTE: The screws and nuts required to attach a part are listed immediately following that part. 3 3183748 Top, Module 3185647 Screw 4 3181699 Tube, Vent 3185648 Screw (3) 5 3185562 Liner, Oven 311255...
-
Page 5: Control Panel Parts
CONTROL PANEL PARTS For Model: KEBS276BBL0, KEBS276BWH0 (BLACK) (WHITE) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION NOTE: The screws and nuts Door, Latch Handle FOLLOWING PARTS required to attach a part are 3182151 Black Model NOT ILLUSTRATED listed immediately following 3182154 White Model that part. - Page 6 UPPER AND LOWER OVEN DOOR PARTS For Model: KEBS276BBL0, KEBS276BWH0 (BLACK) (WHITE) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION NOTE: The screws and nuts 7 3185458 Glass, Reflective Handle, Door required to attach a part are 8 3185438 Plate, Latch 3185986 Black Model...
- Page 7 LATCH AND VENT PARTS For Model: KEBS276BBL0, KEBS276BWH0 (BLACK) (WHITE) 4174374...
- Page 8 LATCH AND VENT PARTS For Model: KEBS276BBL0, KEBS276BWH0 (BLACK) (WHITE) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION NOTE: The screws and nuts 8 3184039 Knob, Latch Handle 17 3183533 Bracket, Mounting required to attach a part are 3183294 Screw 3177991 Screw...
-
Page 9: Unit Parts
UNIT PARTS For Model: KEBS276BBL0, KEBS276BWH0 (BLACK) (WHITE) Illus. Part DESCRIPTION NOTE: The screws and nuts required to attach a part are listed immediately following that part. 1 3185562 Liner, Oven 661415 Element, Broil 3 3147563 Grill, Broiler 4 3147845 Pan, Broiler 5 3185307 Rack, Offset... -
Page 10: Wiring Harness Parts
WIRING HARNESS PARTS For Model: KEBS276BBL0, KEBS276BWH0 (BLACK) (WHITE) Illus. Part DESCRIPTION 1 3187607 Harness Wire (Door Switch Upper) 2 3183656 Harness Wire (Door Switch Lower) 3 3185950 Harness Wire (Lower Oven) 4 3185965 Harness Wire (Upper Oven) 5 3185952 Harness, Wire Latch Assy.
