KitchenAid KECC562GBL05 Parts List

36" electric built−in cooktop
Hide thumbs


Advertisement

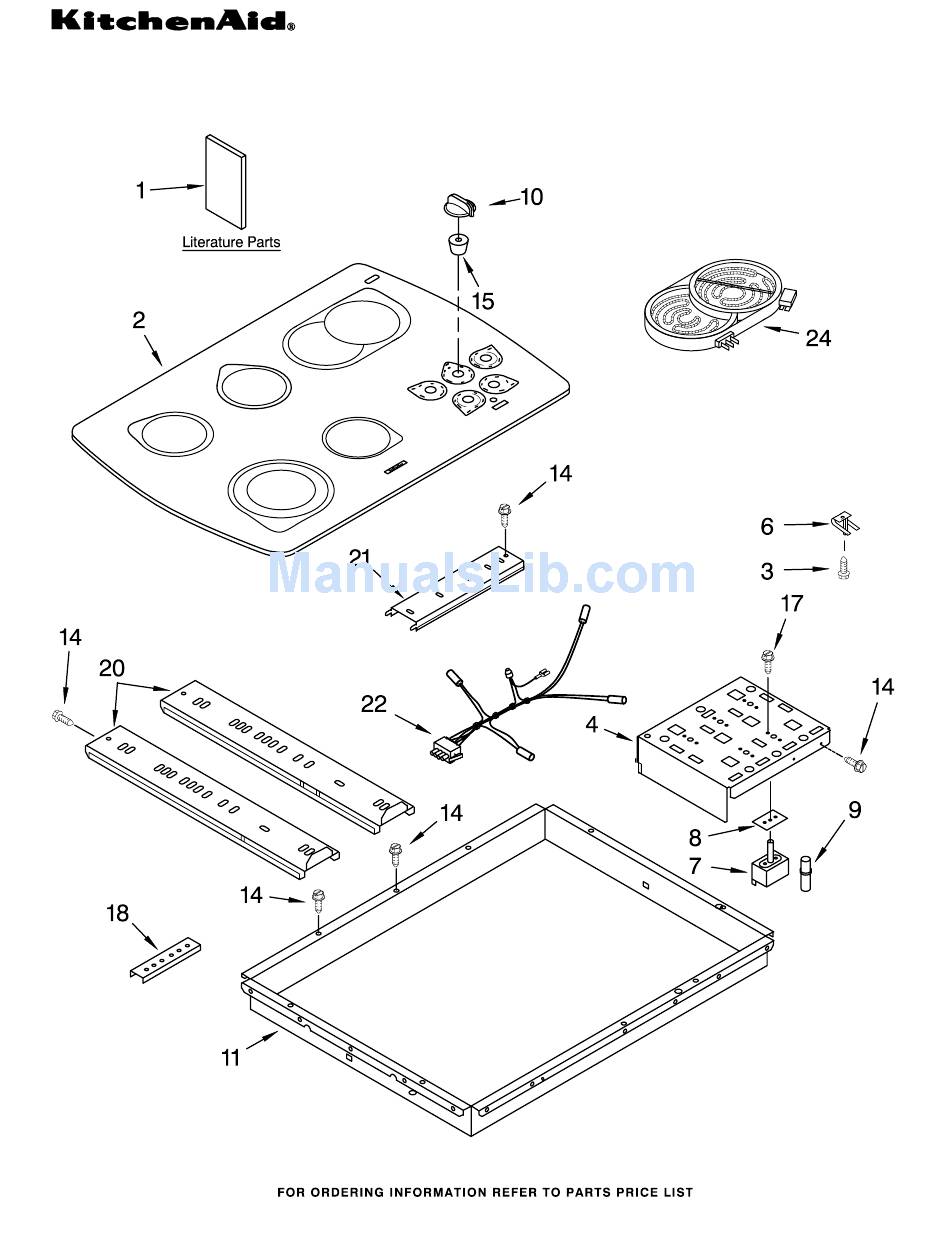

COOKTOP PARTS
36" ELECTRIC
BUILT−IN
For Models: KECC562GBL05, KECC562GWH05, KECC562GBT05
COOKTOP
(Black)
(White)
(Biscuit)
1
Part No. 8186136
10−03 Litho in U.S.A. (cre)

Advertisement

Table of Contents
loading

  Related Manuals for KitchenAid KECC562GBL05

  Summary of Contents for KitchenAid KECC562GBL05

  • Page 1 COOKTOP PARTS 36" ELECTRIC BUILT−IN For Models: KECC562GBL05, KECC562GWH05, KECC562GBT05 COOKTOP (Black) (White) (Biscuit) Part No. 8186136 10−03 Litho in U.S.A. (cre)
  • Page 2 COOKTOP PARTS For Models: KECC562GBL05, KECC562GWH05, KECC562GBT05 (Black) (White) (Biscuit) Illus. Part DESCRIPTION Literature Parts LIT8285316 Installation Instructions LIT4456013 Wiring Diagram LIT8285368 Use & Care Guide LIT3191638 Brochure, Tips−Safe Cooking COOKTOP PARTS Cooktop, Glass 4455556 Black 4455557 White 4455555 Biscuit 246119 Screw 4455420 Bracket, Switch 3183956 Seal, Switch...
  • Page 3 MISCELLANEOUS PARTS For Models: KECC562GBL05, KECC562GWH05, KECC562GBT05 (Black) (White) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION SPLICING WIRES−−25FT. CLEANER, COOKTOP FOLLOWING PARTS LENGTH NOT ILLUSTRATED 3191048 Cleaner, Glass 4456028 Wire, Jumper WIRING HARNESS PARTS 242828 Wire, Black Miscellaneous 12 Ga.

This manual is also suitable for:

Kecc562gbt05Kecc562gwh05
