Parts Manual
SERIES 2000
TRACTOR

Model Number

GT 2186
CUB CADET LLC P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 [www.cubcadet.com]
PRINTED IN U.S.A.
FORM NO. 770-10287E
(11/03)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT 2186 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cub Cadet GT 2186

Summary of Contents for Cub Cadet GT 2186

  • Page 1: Model Number

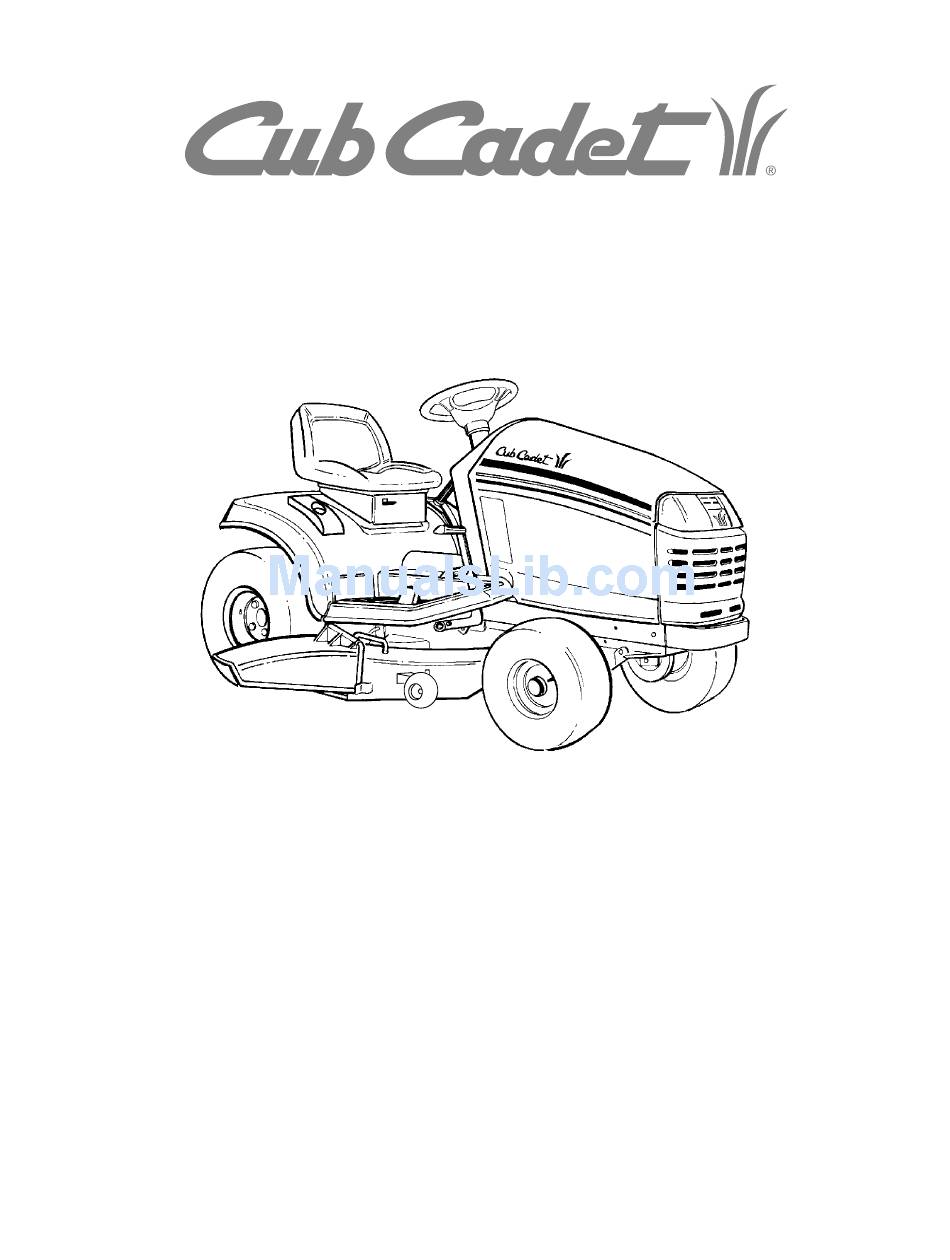

    Parts Manual SERIES 2000 TRACTOR Model Number GT 2186 CUB CADET LLC P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 [www.cubcadet.com] PRINTED IN U.S.A. FORM NO. 770-10287E (11/03)
  • Page 2 NOTES...
  • Page 3 MODEL GT2186 TABLE OF CONTENTS DESCRIPTION PAGE DESCRIPTION PAGE Axle, Front ............Engine Mounting ..........Battery ............. Fender ............. Brakes .............. Frame .............. Bulkhead ............Fuel Tank ............Controls Grille ..............Engine ............Hood ..............Pedal ............Transmission ..........Hydraulic Filter ..........Dash Panel ............
  • Page 4 BRAKE AND CONTROL PEDALS...
  • Page 5 BRAKE AND CONTROL PEDALS REF. PART REF. PART NUMBER DESCRIPTION QTY. NUMBER DESCRIPTION QTY. 603-0321A Shaft Assy, Brake 731-3205 Pedal, Reverse 603-0412 Pedal Assy, Reverse 731-3206 Knob, Cruise 603-0697 Shaft Assy, Forward/Reverse 731-3207 Knob, Brake Lock 603-0419 Cam Assy, Control 732-0418 Spring, Extension, .38 OD x 2.1 603-0421A Plate Assy, Disengagement...
  • Page 6 STEERING...
  • Page 7 STEERING REF. PART NUMBER DESCRIPTION QTY. 603-0064 Arm Assy, Lower Steering 603-0250 Segment Assy, 18T Steering 619-04079 Housing Assy, 737-3000 Fitting, Grease, 3/16 Drive Type 748-0108 Bearing, Flange, .503 ID 748-3007A Bearing, Bronze Flange, .75 ID 631-04008 Wheel, Steering, Soft Grip 710-0751 Screw, Hex Cap, 1/4 - 20 x .62, GR5 710-1260A...

  • Page 8: Transmission Controls

    TRANSMISSION CONTROLS REF. PART NUMBER DESCRIPTION QTY. 603-0272 Pivot Assembly 710-0599 Screw, Hex Wsh Hd Tapp, 1/4-20 x .5 710-3170 Screw, Ball, 5/16-18 x.56 712-0271 Nut, Hex Sems, 1/4-20 712-3004A Nut, Hex Flange Lock, 5/16-18 GR5 712-3027 Nut, Hex Flange Lock, 1/4-20 714-0104 Pin, Internal Cotter 727-3090...
  • Page 9 DRIVE LINE REF. PART REF. PART NUMBER DESCRIPTION QTY. NUMBER DESCRIPTION QTY. 718-3147 Shaft Assembly, Drive, 28.25 Lg 710-3290 Screw, Hex Wsh Tap, 3/8-16 x 1.25 759-3764 Kit, Drive Barrel 712-3059 Nut, Hex Top Lock Jam GR5, 1/2-20 748-3093 Adapter, Pump 618-04110 Transmission Assembly, Does NOT include wheel hub as-...
  • Page 10 -10- HYDRO TRANSMISSION...
  • Page 11 -11- HYDRO TRANSMISSION REF. PART REF. PART NUMBER DESCRIPTION QTY. NUMBER DESCRIPTION QTY. 618-04115 Hub Assembly, Wheel 717-1446 Gear, Miter, 10T 618-3060 Plate Assembly, Brake 717-04102 Gear, Miter, 14T 619-0056 Axle Housing, RH 717-1568 Gear, Differential Spur, 60T 619-0057 Axle Housing, LH 717-3346 Shaft, Output, 9T 719-04078...
  • Page 12 -12- HYDROSTATIC PUMP...
  • Page 13 -13- HYDROSTATIC PUMP REF. PART NUMBER DESCRIPTION QTY. HG-50158 Shaft, Pump (Splined) HG-2003016 Ring, Retaining HG-2003043 Bearing, Ball HG-2003018 Spacer HG-9008000-0128 Seal, Lip HG-2003052 Ring, Retaining HG-2003023 Bearing, Cradle HG-9008000-0126 Seal, Lip HG-2003005 Arm, Trunnion HG-2000015 Guide, Slot HG-2513036 Housing Kit HG-2003044 Bearing Assembly, Thrust Ball HG-51077...
  • Page 14 -14- NEUTRAL LINKAGE, HYDRAULIC PICKUP AND RETURN TUBES REF. PART NUMBER DESCRIPTION QTY. 603-0160 Arm Assembly, Control 603-04184 Bracket, Hydro Neutral 703-05315 Bracket, Hydro Dump Mtg, 730-05316 Bracket, Hydro Dump Actuator 703-2441 Arm, Neutral 710-0106 Screw, Hex Cap, 1/4-20 x 1.25 710-04171 Screw, Special Hex Cap, 5/16-24 x .625 710-0809...
  • Page 15 -15- BULKHEAD, DASH PANEL AND ENGINE CONTROLS REF. PART REF. PART NUMBER DESCRIPTION QTY. NUMBER DESCRIPTION QTY. 703-2557 Screen, Intake Dash 731-3161 Knob, Throttle 703-3108B Bulkhead, Lower 723-3062 Seal Ring, Foam 710-0751 Screw, Hex Cap, 1/4-20 x .625 736-3128 Washer, Flat, .285 x 1.75 x .10 710-0597 Screw, Hex Cap, 1/4-20 x 1.0 746-3049...
  • Page 16 -16- BATTERY, ELECTRICAL COMPONENTS AND SWITCHES To Headlights Red to Starter To PTO Black to Engine Ground To Engine...
  • Page 17 -17- BATTERY, ELECTRICAL COMPONENTS AND SWITCHES REF. PART NUMBER DESCRIPTION QTY. 629-3068A Wire Harness, Main 783-0462 Bracket, PTO Switch Retainer 710-0936 Screw, Truss Hd Tapp, #6 x .62 711-1094 Stud, Ground 712-3010 Nut, Hex, 5/16-18 GR5 Battery Cable Hardware 710-3015 Screw 712-0271 Sems Nut...
  • Page 18 -18- FRAME AND DRAWBAR REF. PART NUMBER DESCRIPTION QTY. 603-0132 Rod, Quick Attach 603-0329C Frame 703-2257 Drawbar 777I20296 Graphic, Transmission Release Lever 703-2577 Bumper 710-0623 Screw, Hex Wsh Hd Tapp 3/8-16 x .75 710-1260A Screw, Hex Wsh Hd Tap 5/16-18 x .75 710-3261 Screw, Hex Cap, 3/8-16 x 7.0 712-0431...

  • Page 19: Pto Clutch

    -19- PTO CLUTCH REF. PART NUMBER DESCRIPTION QTY. 710-0757 Screw, Hex Cap, 7/16-20 x 1.5 GR5 711-1083 Stud, Clutch Stop 736-0171 Washer, Lock, 3/8 717-3403 Clutch Assy, PTO 750-3356 Spacer (Not Shown) 736-3082A Washer, Flat, .445 x 1.5 x 1.72 Hdn FUEL TANK TO FUEL FILTER...
  • Page 20 -20- ENGINE MOUNTING AND MUFFLER REF. PART NUMBER DESCRIPTION QTY. 651-3001 Muffler Assembly 703-3099 Shield, Muffler Tube 703-2632 Baffle, RH Heat 710-1268 Screw, Hex Wsh Hd Tap, #10-16 x .38 2 710-0539 Bolt, Eng Mount, 3/8-24 x 1.75 GR5 KH-M-0841080 Nut, Hex Flange 712-3004A Nut, Hex Flange Lock, 5/16-18 712-3054...
  • Page 21 -21- BLOWER HOUSING AND BAFFLES REF. PART NUMBER DESCRIPTION QTY. KH-24-027-175-S Housing, Blower (Incl. Ref #2-4) KH-24-100-02 Nut, Plastic KH-25-139-16 Plug, Button, 9/16 KH-24-100-01 Nut, Plastic KH-M-0551016 Screw, Hex Flange, M5 x 0.8 x 16 KH-M-545016-S Screw, Hex Flange, M5 x 0.8 x 16 KH-M-0545020 Screw, Hex Flange, M5 x 0.8 x 20 KH-24-146-16-S...
  • Page 22 -22- CRANKCASE REF. PART REF. PART NUMBER DESCRIPTION QTY. NUMBER DESCRIPTION QTY. KH-64638 Complete Engine KH-24-018-01 Retainer, Piston Pin KH-24-522-180 Short Block KH-24-108-11-S Ring Set, Std., .08 KH-24-782-15 Crankcase, (Use Miniblock) KH-24-108-12-S Ring Set, .010 / .25mm KH-25-139-57-S Plug, Hex Hd, 3/8 KH-24-108-13-S Ring Set, .020 / .50mm KH-24-032-01...
  • Page 23 -23- CYLINDER HEAD, VALVES AND BREATHER REF. PART REF. PART NUMBER DESCRIPTION QTY. NUMBER DESCRIPTION QTY. KH-24-755-74 Kit, Valve Cover (Includes 2-3) KH-24-599-01 Pivot, Rocker Arm KH-24-086-32 Screw, Shoulder KH-M-0640034 Screw, Hex Flng, M6 x 1.0 x 34 KH-24-153-23 O-Ring, Valve Cover KH-12-086-16 Screw, Hex Flng, M10 x 1.5 x 90 KH-24-445-01...
  • Page 24 -24- CRANKSHAFT REF. PART NUMBER DESCRIPTION QTY. KH-24-014-06 Crankshaft (Incl. Ref #2) KH-52-139-09 Plug, Cup EXHAUST REF. PART NUMBER DESCRIPTION QTY. 712-3086 Nut, Muffler Mounting, M8 x 1.25 721-0377 Gasket, Exhaust KH-25-072-04 Stud, Exhaust, M8 x 1.25 x 33...
  • Page 25 -25- OIL PAN AND LUBRICATION REF. PART NUMBER DESCRIPTION QTY. KH-24-009-83-S Plate Assy, Closure (Incl. Ref #2-12, 17) 1 KH-24-038-10-S Dipstick KH-24-755-121-S Tube, Dipstick (Includes 2) KH-24-043-12 Kit, Governor Gear (Incl. Ref #5) KH-12-380-01 Pin, Governor Regulating KH-24-448-01-S Tab, Locking KH-12-144-02 Shaft, Governor Gear KH-52-032-08...
  • Page 26 -26- AIR INTAKE AND FILTRATION REF. PART NUMBER DESCRIPTION QTY. KH-54-755-01 Kit, Knob w/Seal (Incl. Ref #2,3) KH-25-341-03 Knob, Cover KH-24-153-20-S Seal, Air Cleaner Cover Knob KH-24-096-69-S Cover, Air Cleaner KH-12-100-01 Wing Nut KH-24-096-01 Cover, Inner Air Cleaner KH-24-032-03 Seal, Inner Air Cleaner KH-24-083-02 Precleaner, Element KH-47-083-03...

  • Page 27: Fuel System

    -27- FUEL SYSTEM REF. PART NUMBER DESCRIPTION QTY. KH-52-353-20 Line, Fuel 10” KH-25-237-14-S Clamp, Hose KH-24-853-35-S Kit, Carburetor w/Gasket (Includes 4-6) KH-24-041-53-S Gasket, Carburetor Carburetor Assembly Not available separately KH-24-041-06 Gasket, Air Cleaner Base KH-M-651025-S Screw, Hex Flange, M6 x 1.0 x 25 KH-24-050-02 Filter, Fuel KH-24-353-12...

  • Page 28: Electric Start

    -28- ELECTRIC START REF. PART NUMBER DESCRIPTION QTY. KH-M-0841080 Nut, Hex Flange M8 x 1.25” KH-M-839080 Screw, Hex Flange M8 x 1.25 x 80 2 KH-25-098-09-S Starter, Solenoid Shift Assembly . (Includes 4-6) KH-25-435-04-S Kit, Solenoid KH-25-755-33-S Kit, Pinion Drive (Includes 6) KH-25-221-01-S Kit, Brush KH-25-141-05-S...
  • Page 29 -29- IGNITION, ELECTRICAL AND FLYWHEEL REF. PART NUMBER DESCRIPTION QTY. KH-54-755-09 Stator Kit, 15 Amp (Incl. Ref #22) KH-M-0548025 Screw, Stator Mtg. M5 x .8 x 25 KH-24-584-01-S Module, Ignition KH-M-545020-S Screw, Module M5 x .8 x 20 KH-24-025-01 Flywheel Assembly KH-25-155-06 Connector KH-25-086-91-S Screw...

  • Page 30: Engine Controls

    -30- ENGINE CONTROLS REF. PART NUMBER DESCRIPTION QTY. KH-M-0547050 Nut, Hex Lock M5 x 0.8 KH-24-089-03 Spring, Choke Return KH-M-645016-S Screw, Hex Flange M6 x 1.0 x 16 KH-24-126-56 Bracket, Control KH-24-468-01 Washer , Plain 5.5mm KH-24-090-07 Lever, Throttle Actuator KH-12-237-01 Clamp, Cable KH-M-545016-S...
  • Page 31 -31- SEAT AND SUPPORT REF. PART NUMBER DESCRIPTION QTY. 703-2394 Bracket, RH Seat Pivot 703-2395A Seat, Base 777I20310 Graphic, Seat Adjuster 703-2477 Bracket, LH Seat Pivot 703-2628 Bracket, Fender Reinforcement 710-0451 Bolt, Carriage, 5/16-18 x .75 710-3123 Screw, Hx Cap Lock, 3/8-16 x 1.25 GR5 712-04054 Nut, Hex Flange Lock, 5/16-18...
  • Page 32 -32- GRILLE, HOOD AND SIDE PANELS...
  • Page 33 -33- GRILLE, HOOD AND SIDE PANELS REF. PART NUMBER DESCRIPTION QTY. 603-0211 Bracket, Grille LH 603-0212 Bracket, Grille RH 603-04191 Bracket, Upper Hood 703-2396 Panel, RH Side 777D07672 Graphic, GT 2186 777X40079 Strip, Protective 703-2397 Panel, LH Side 777D07672 Graphic, GT 2186 777X40079 Strip, Protective 703-2398...
  • Page 34 -34- FENDER AND RUNNING BOARD...

  • Page 35: Fender And Running Board

    -35- FENDER AND RUNNING BOARD REF. PART NUMBER DESCRIPTION QTY. 731-3212A Cup Holder 631-3002 Cover, Implement Lift 703-2278B Fender 710-0751 Screw, Hex Cap, 1/4-20 x .62 GR5 710-1260A Screw, Hex Wash Hd Tapp 5/16-18 x .750 710-1268 Screw, Hex Tapp, #10 x .38 Lg 712-3027 Nut, Hex Flange Lock, 1/4-20 723-3042...
  • Page 36 -36- FRONT AXLE AND CONNECTIONS REF. PART NUMBER DESCRIPTION QTY. 603-0066 Knuckle Assembly, Steering 710-3066 Screw, Hex Cap, 3/8-16 x 2.75 GR8 710-3103 Screw, Hex Cap, 5/16-18 x 2 GR5 712-3054 Nut, Hex Lock, 3/8-24 GR5 712-0431 Nut, Hex Flanged Lock, 3/8-16 712-0711 Nut, Hex Jam, 3/8-24 GR2 712-3004A...
  • Page 37 -37- IMPLEMENT LIFT HANDLE REF. PART REF. PART NUMBER DESCRIPTION QTY. NUMBER DESCRIPTION QTY. 603-04141 Handle Assembly, Lift 712-0431 Nut, Hex Flanged Lock, 3/8-16 712-3004A Nut, Hex Flanged Top Lock, 5/16-18 603-0059A Shaft Assembly, Lift 715-0114 Pin, Spiral Spring, 1/4 Dia x 1.5 603-05247 Fork, Lift 716-0116...
  • Page 38 -38- IMPLEMENT LIFT HANGER REF. PART NUMBER DESCRIPTION QTY. 747-04196 Rod, Lift Link 703-2234 Bracket, LH Hanger 703-2804 Plate, Bearing Mounting 703-2832 Link, RH Lift 703-2833 Link, LH Lift 711-3319 Ferrule, Adjustment 712-0431 Nut, Hex Flange Lock, 3/8-16 712-3048 Nut, Hex Jam, 1/2-13 GR5 712-3083 Nut, Hex Insert Lock, 1/2-13 714-0145...

  • Page 39: Rear Wheel

    -39- FRONT WHEEL REF. PART NUMBER DESCRIPTION QTY. 734-3187 Tire, Cub Tread, 16 x 6.5 x 8 634-3016 Rim Assy, Front 710-3119 Bolt, Hex Patch, 3/8-16 x .75 GR5 731-3020 Cap, Hub 734-0255 Valve, Tubeless Air 736-3039 Washer, Flat, .406 x 1.5 x .110 736-3040 Washer, Flat, .406 x 1.92 x .06 737-0224...
  • Page 40 -40- 44" DECK ASSEMBLY LIFT ASSIST ROD ON TRACTOR...
  • Page 41 -41- 44" DECK ASSEMBLY REF. PART NUMBER DESCRIPTION QTY. 603-0857 Idler Assembly 603-0183A Plate Assy, Mounting 603-0203 Handle, Tension 603-0729 Deck Housing Assembly 777S30014 Graphic, Warning 777S30018 Graphic, Deck Safety 777S30503 Graphic, Deck Safety 631-0094 Chute Assembly, Discharge 703-1890 Wheel, Deck w/Fitting 703-2559 Bracket, Stop 703-3359...
  • Page 42 -42- 44" DECK DRIVE & SPINDLE ASSEMBLY 918-3129B...
  • Page 43 -43- 44" DECK DRIVE & SPINDLE ASSEMBLY REF. PART NUMBER DESCRIPTION QTY. 603-0857 Idler Assembly 603-0203 Handle, Tension 703-0118 Idler Arm Assembly 918-3129B Spindle Assembly — Includes Ref. Nos. 35, 36, 37 and 38 710-0923 Screw, Hex Cap, 5/8-18 x 3.0 710-1260A Screw, Hex Wash Ld, 5/16-18 x .75 12 710-1852...
  • Page 44 -44- 48" DECK ASSEMBLY...
  • Page 45 -45- 48" DECK ASSEMBLY REF. PART REF. PART NUMBER DESCRIPTION QTY. NUMBER DESCRIPTION QTY. 603-0031A Bracket, Caster Wheel 726-0211 U-Nut, 5/16-18 603-0110 Spindle Assy, RH Front 726-3045 Plug, Button 603-0111 Spindle Assy, LH Front 731-3005 Roller 903-0183A Plate Assy, Mounting 731-3131A Deflector, Chute 703-2248...
  • Page 46 -46- 48" SPINDLE ASSEMBLY PULLEY BLADE...
  • Page 47 -47- 48" SPINDLE ASSEMBLY REF. PART NUMBER DESCRIPTION QTY. 603-0857 Pivot Arm, Double Pulley 703-1387 Cup, Spindle 703-2579 Arm, Idler 710-3005 Screw, Hex Cap 3/8-16 x 1.25 GR5 710-0520 Screw, Hex Cap, 3/8-16 x 1.5 GR5 710-0923 Screw, Hex Cap, 5/8-18 x 3 GR5 710-1010 Screw, Hex Cap, 1/2-20 x 3 GR8 710-3144...
