Eurotech EWF150 Owner's Manual

Eurotech owner's manual washer ewf150, ewf172
Hide thumbs Also See for EWF150:
Table of Contents

Advertisement

Quick Links

Washer Owner's Manual
MODELS EWF150 AND EWF172
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
Version 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EWF150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eurotech EWF150

Summary of Contents for Eurotech EWF150

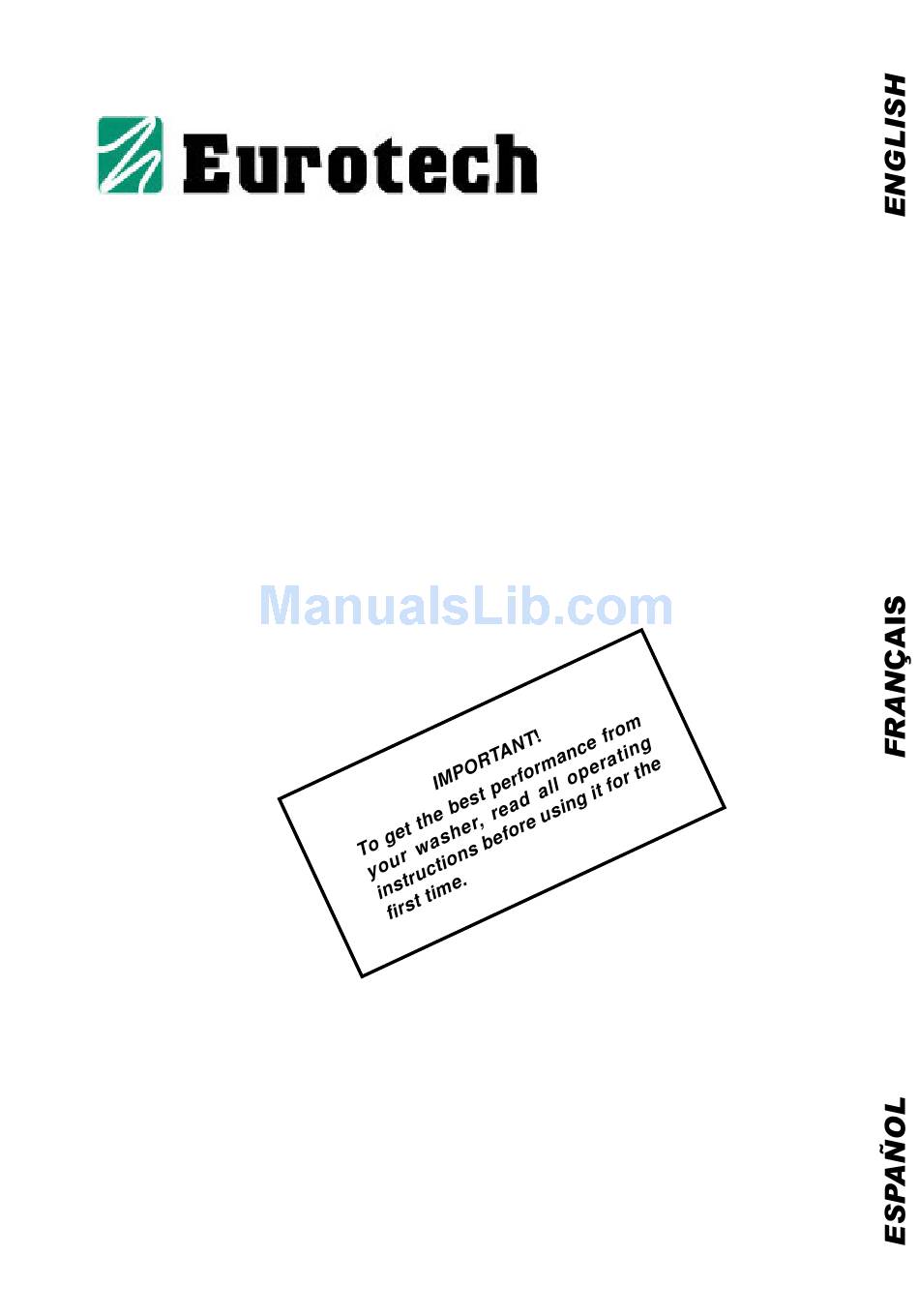

  • Page 1 Washer Owner’s Manual MODELS EWF150 AND EWF172 SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE Version 2...

  • Page 2: Table Of Contents

    CONTENTS IMPORTANT SAFETY INSTRUCTIONS ... 3 DESCRIPTION OF THE MACHINE ... 4 INSTALLATION INSTRUCTIONS ... 5 INSTRUCTIONS FOR USING THE WASHER ... 7 CARE LABEL INSTRUCTIONS ... 8 CONTROL PANEL ... 9 WASHER PROGRAMS ... 10 CARE AND MAINTENANCE ... 11 COMMON LAUNDRY PROBLEMS ...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following: Read all instructions before using the appliance. Do not run appliance while you are out of the home.

  • Page 4: Specifications

    Two 5-ft (1.5 m) fill hoses (hot and cold) Supply pressure: 15-142 PSI Outlet hose: 5.5 ft (1.7 m) polypropylene hose, 3/4” ID CAPACITY: Model EWF150 Large – 5 kilos (weight of clothes) Model EWF172 Extra Large –7 kilos (weight of clothes) DIMENSIONS: MODEL EWF150 A.

  • Page 5: Installation Instructions

    Move the machine to its installation position and remove the outer wrapping and the polystyrene base. Model EWF150 has a plastic strip taped to the bottom of the machine to secure two cones that prevent the tub from moving during shipment.
  • Page 6 ELECTRICAL CONNECTION Check to make sure the main power supply and the outlet are appropriate to support a 110/120 V, 15 amp single-phase circuit. The power supply voltage is indicated on the filter door on the bottom right of the washing machine.

  • Page 7: Instructions For Using The Washer

    INSTRUCTIONS FOR USING THE WASHER Before placing the items in the washer, sort the laundry by type of fabric and care label instructions (see page 8). Make sure nothing is in the garment pockets to avoid damage to clothes, the machine or the filter.

  • Page 8: Care Label Instructions

    CARE LABEL INSTRUCTIONS Most clothes and other washable items have permanent care labels. Read these labels carefully! Care label instructions and warnings should be followed for the best cleaning results. The table below defines the typical symbols used on fabric care labels. (Note: Some manufacturers may use slightly different symbols.) WASH CYCLE Normal wash setting...

  • Page 9: Control Panel

    The control panel is simple to understand and easy to operate. Option On/Off Buttons Button WARM EXTRA HALF RINSE RINSE SPIN LOAD Power Indicator Light PROGRAM CONTROL KNOB Each wash program is specifically designed to give you the cleanest laundry possible. The table on page 10 defines each program in detail, so you can determine which program is best for each type of load.

  • Page 10: Washer Programs

    (1) For an explanation of the recommended load sizes, see page 6. (2) Model EWF172 has a maximum 1200 rpm spin speed; Model EWF150 has a 1000 rpm maximum. (3) When you select the Heavy Stain program with the Temperature knob on Hot, the washer heats the water to 140°...

  • Page 11: Cleaning Detergent Drawer

    CARE AND MAINTENANCE The washing machine does not require special care; however, to best ensure a long life, certain precautions are recommended (see page 3). WARNING! Before performing the operations described below, make sure that the power is off and the unit is unplugged.

  • Page 12: Common Laundry Problems

    COMMON LAUNDRY PROBLEMS Most items can be safely washed in a Eurotech washing machine. We recommend that you follow the care label instructions as closely as possible for the best cleaning results. Should problems occur, some possible causes and suggested solutions are listed below. NOTE: Eurotech has no control over what is put in our appliances once installed in a customer’s home.
  • Page 13 COMMON LAUNDRY PROBLEMS (cont’d) Excessive Machine too full wrinkling Water too hot Rips, snags, Sharp objects in pockets excess wear Hooks, snaps, zippers, buckles Harsh chemicals Existing rips and tears Permanent press items Permanent press items should be washed in half-loads to prevent wrinkling.

  • Page 14: Troubleshooting

    Before calling for technical assistance, check that the operations described below have been carried out correctly; this will save both time and money. Does not work/Indicator light is not lit Check that: The On/Off button is pressed in. The plug is correctly inserted in the socket. The main power supply is on.

  • Page 15: Warranty

    D. Any shipping costs for parts during the limited warranty period. E. Replacement parts or repair labor costs for units operated outside the continental United States. Pickup and delivery. Eurotech appliances are designed to be repaired in the home. IN NO EVENT SHALL AM APPLIANCE GROUP BE RESPONSIBLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES.

  • Page 16: Quick Start Reference

    (Refer to pages 7–10 for detailed operating instructions.) Option Buttons WARM EXTRA HALF RINSE RINSE SPIN LOAD Power Indicator Light The table below defines each program in detail to help you determine which program is best for each type of load. REGULAR T emp S oil...

This manual is also suitable for:

Ewf172
