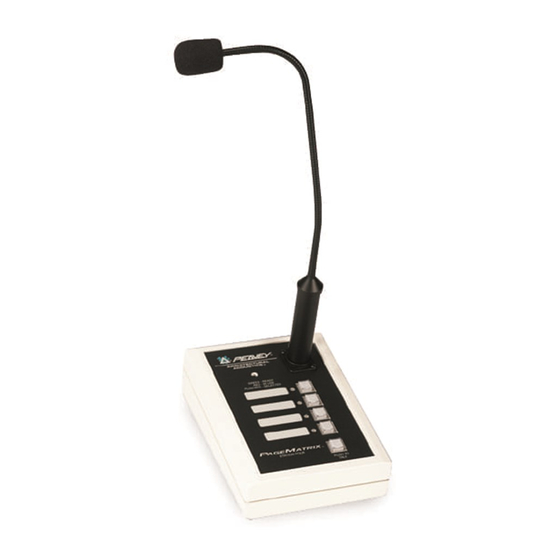

Peavey PageMatrix STATION FOUR BUTTON Specification

S P E
PAGEMATRIX
STATION
FOUR BUTTON
Features
• Four Zone preset
• 3-pin XLR low-Z mic input
5-pin XLR Aux Mic input
Electronically balanced
• Mic level control +25 dBu full
scale
• Electronically balanced output
Applications
• Transportation Centers
• Convention Centers
• Theme Parks
• Industrial Plants
• Medical Centers
• High Rise Facilities
• Research Facilities
• Hotels and Resorts
• Casinos
Operation
5 LED color indicates status of each of
the four zone presets.
5 Green indicates the zone is
available.
5 Red indicates the zone is in
use.
C I F
™
5 When the microphone "Push to Talk"
button is pressed, the selected zone
preset LED turns orange to confirm that
it is active. Other stations connected to
the system will indicate RED to confirm
that the zone preset is in use.
5 Press any zone preset button to select.
The LED will blink, confirming the
selection.
5 At power-up, the unit defaults to zone
one, and after one minute of inactivity
reverts back to zone one.
5 Hand-held 5-pin mic input is activated
by pressing the "talk" button.
5 Zone presets can be labeled in the
appropriate white boxes.
5 If all LEDs flash red at power-up, this is
an indication that the station has not
been programmed.
5 If all LEDs flash green at power-up, this
is an indication that the station has
beenprogrammed.
5 The Aux mic input (rear panel) is
always routed to zone preset one.
Specifications
Maximum Input Level:
-22 dBu
I C A T I O N
Maximum Output Level:
+25 dBu
Input Impedance:
2.2K Ohms
Output Impedance:
200 Ohms
Frequency Response:
20 Hz to 20 kHz (+0, -2 dB)
Phantom Power:
+48V DC
Signal-to-Noise Ratio:
Greater than 85 dB
Power Requirements:
55mA at +24V DC
Total Harmonic Distortion:
Less than 0.01% at 1 kHz
Dimensions:
4" H x 5.2" W x 7.1" D
10.16cm x 13.21cm x 18.03cm
ARCHITECTURAL ACOUSTICS
