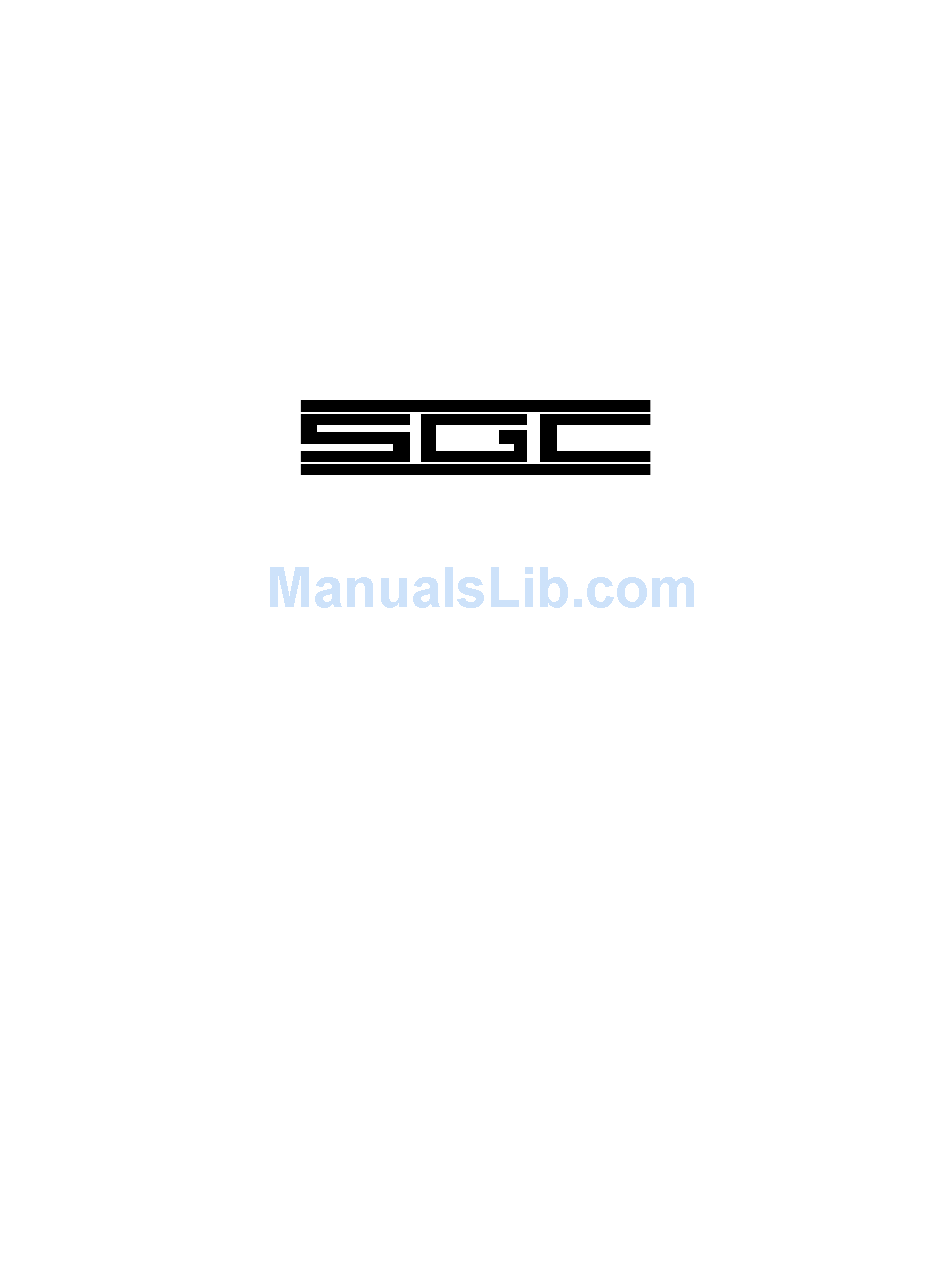

- Page 1 SG-237 SMARTUNER™ INSTALLATION MANUAL...
- Page 2 Congratulations on purchasing the most versatile and reliable HF coupler available on the market today. Your SGC Smartuner™ is designed to give you dependable operation and the flexibility to operate on any HF frequency without any extra ‘tuning’ effort on your part. Unlike a traditional ‘tuner’...
- Page 3 SGC always recommends placing the antenna coupler as close as possible to the base of the antenna – regardless of whether it is an SGC coupler or another brand. All SGC couplers can be operated with a coaxial cable output connection; but this is not our recommendation. Antenna “tuners”...
- Page 4 S G -237 Smartuner™ Manual hand, SGC antenna couplers are not limited in their impedance ranges and will tune all types of antennas, including end fed wires and whips. For the most efficient operation possible, install your SGC coupler as close to the feedpoint of your antenna as physical limitations allow. See section 4.0 for examples of ideal configurations.
- Page 5 • Go Mobile at 500 Watts • Stealth Antennas • Smartuner Antenna Coupler Manuals SGC, 13737 SE 26 Street Bellevue, WA 98005 USA • Ph: 425-746-6310, Fx: 425-746-6384, Email: sgc@sgcworld.com www.sgcworld.com SGC RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE Copyright SGC 2008...
- Page 6 S G -237 Smartuner™ Manual This manual is produced as a guideline for the SG-237 antenna coupler. Performance and results may very and SGC does not warrant any installation or any result. This manual is subject to change without notice.
- Page 7 This is generally a 13-foot piece of metal that mounts on the fuselage and is grounded to the aircraft at one end. SGC, 13737 SE 26 Street Bellevue, WA 98005 USA • Ph: 425-746-6310, Fx: 425-746-6384, Email: sgc@sgcworld.com www.sgcworld.com SGC RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE...
- Page 8 4 to 22 MHz. Noise rejection is excellent. Because the antenna system is not connected to a ground, noise rejection is enhanced. SGC, 13737 SE 26 Street Bellevue, WA 98005 USA • Ph: 425-746-6310, Fx: 425-746-6384, Email: sgc@sgcworld.com www.sgcworld.com SGC RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE...
- Page 9 Ladder feed Antenna: These may be used if necessary, however, installation of the coupler directly at the antenna is preferred for higher efficiency. SGC, 13737 SE 26 Street Bellevue, WA 98005 USA • Ph: 425-746-6310, Fx: 425-746-6384, Email: sgc@sgcworld.com www.sgcworld.com SGC RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE...
-
Page 10: Optional Smartlock
SGC, 13737 SE 26 Street Bellevue, WA 98005 USA • Ph: 425-746-6310, Fx: 425-746-6384, Email: sgc@sgcworld.com www.sgcworld.com SGC RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE... - Page 11 (4) Black wire/DC Ground – Black wire in coupler cable Please note: the wire colors may change. If your wire colors do not match what is listed here, refer to our website for more current information, or contact SGC for assistance. SGC, 13737 SE 26 Street Bellevue, WA 98005 USA •...
- Page 12 3. Use the troubleshooting methods outlined below. 4. If you contact SGC for assistance, the best way to do so is through our Online Help Request, which you can fill out and submit on our website, or print and fax. In either case, it is best to have the information on this form readily available before calling an SGC representative, as it will insure timely handling of your problem.
- Page 13 (NEVER test with the transmitter set on an emergency frequency.) SGC recommends that you build the light-bulb dummy load with the following parts: AC socket to cable with a PL-259 connector (for transceiver)
- Page 14 If your unit is still under warranty, it is recommended that you call SGC before opening the cover. This LED will light when the turner has found an acceptable match. It will remain lit until conditions have changed which will cause the turner to find a different match.
