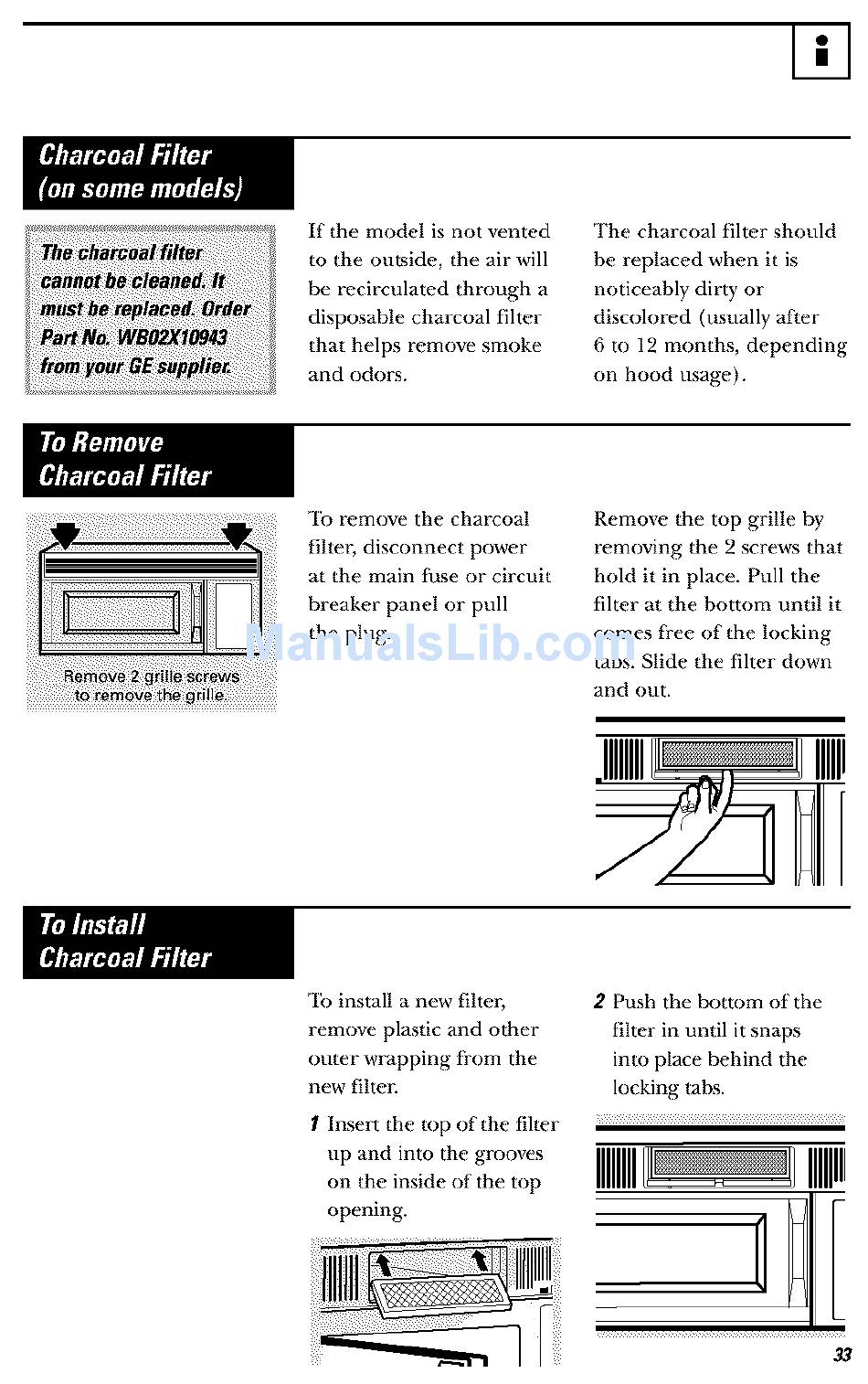

If the model is not vented
to the outside, the air will
be recirculated through a
disposable charcoal filter
that helps remove smoke
and odors.
The charcoal filter should
be replaced when it is
noticeably dirty or
discolored (usually after
6 to 12 months, depending
on hood usage).
To remove the charcoal
filter, disconnect power
at the main fuse or circuit
breaker panel or pull
the plug.
Remove the top grille by
removing the 2 screws that
hold it in place. Pull the
filter at the bottom until it
comes fi-ee of the h)cking
tabs. Slide the filter down
and out.
IIIIIt
'Ib install a new filter,
remove plastic and other
outer wrapping ti-om the
new tiltel:
I Insert the top of the filter
up and into the grooves
on the inside of the top
opening.
|
2 Push the bottom of the
filter in until it snaps
into place behind the
locking labs.
