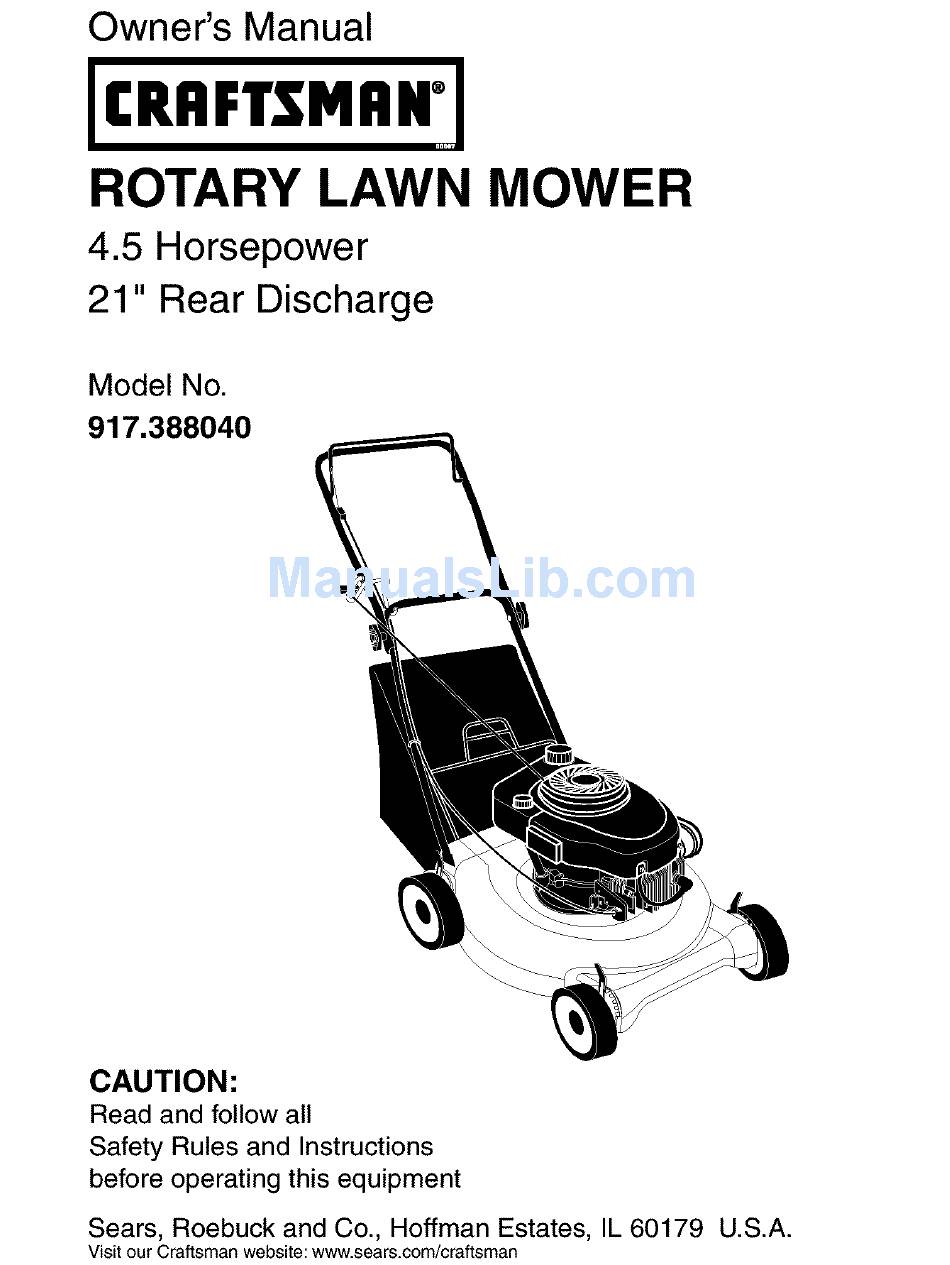

Craftsman 917.388040 Owner's Manual

4.5 horsepower 21" rear discharge rotary lawn mower
Hide thumbs

Advertisement

Owner's Manual
IC..FTSM..°I
ROTARY LAWN MOWER
4.5 Horsepower
21" Rear Discharge
Model No.
917.388040
CAUTION:
Read and follow all
Safety Rules and Instructions
before operating this equipment
Sears, Roebuck and Co., Hoffman Estates, IL 60179
U.S.A.
Visit our Craftsman website: www.sears.com/craftsman
