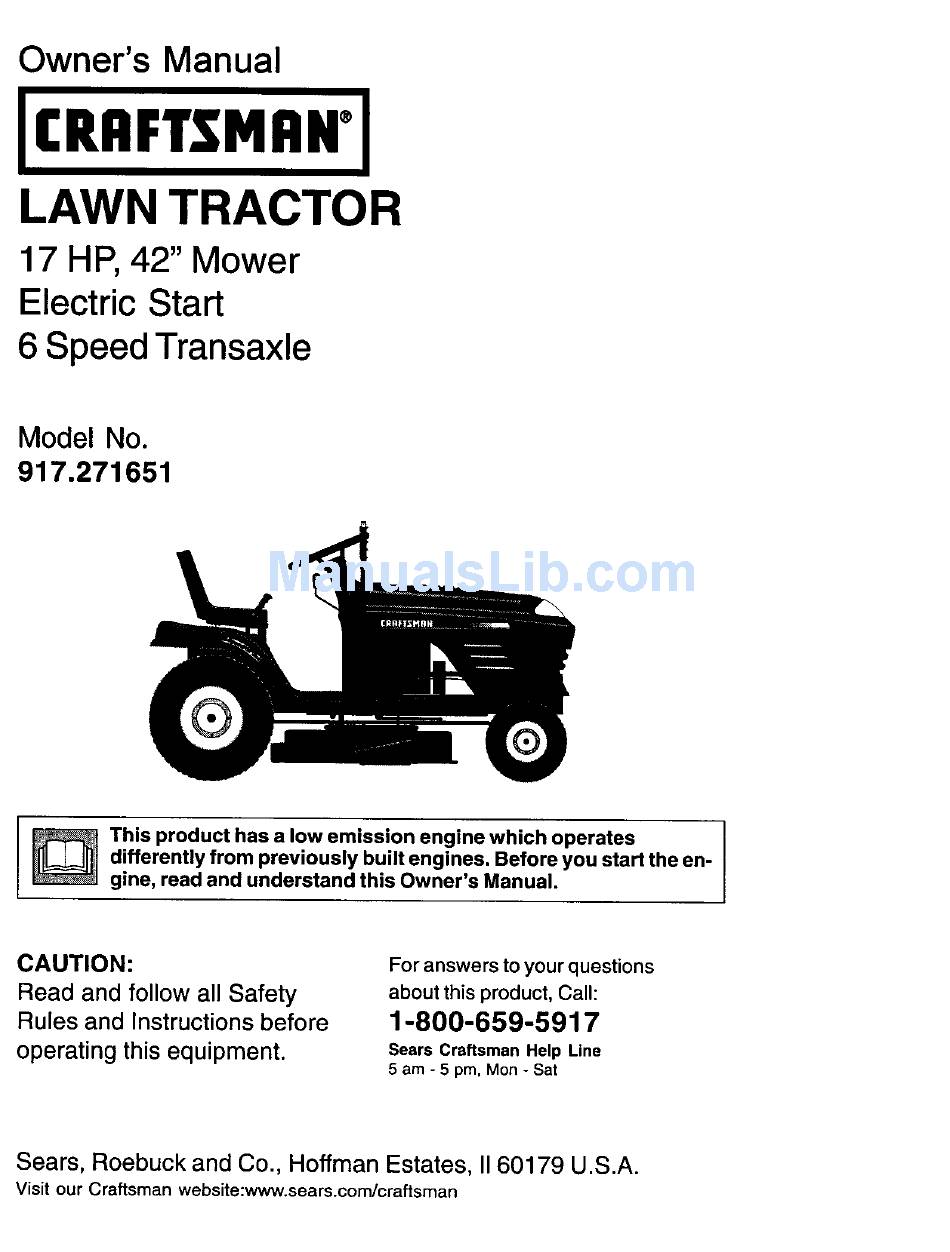

Craftsman 917.271651 Owner's Manual

Craftsman 917.271651 Owner's Manual

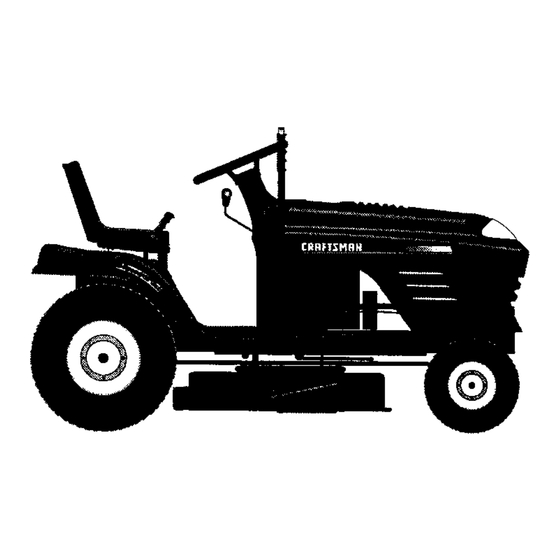

Lawn tractor 17 hp, 42" mower electric start 6 speed transaxle

Advertisement

Quick Links

Owner's Manual
JCRAFTSMAWJ
LAWN TRACTOR
17 HP, 42" Mower
Electric Start
6 Speed Transaxle
Model No.
917.271651
This product has a low emission
engine which operates
differently
from previously
built engines,
Before you start the en-
gine, read and understand
this Owner's
Manual.
CAUTION:
Read and follow all Safety
Rules and Instructions before
operating this equipment.
For answers
to your questions
about this product,
Call:
1-800-659-5917
Sears Craftsman Help Line
5 am - 5 pro, Mon- Sat
Sears, Roebuck and Co., Hoffman Estates, II 60179 U.S.A.
Visit our Craftsman website:www.sears.com/craftsman

Advertisement

loading
Need help?

Need help?

Do you have a question about the 917.271651 and is the answer not in the manual?

Questions and answers

Jim Culleny
May 11, 2025

where is mower drive belt located on mod 917..271651

User image 6820d6b421fc0
1 comments:
Mr. Anderson
May 20, 2025

The mower drive belt on Craftsman model 917.271651 is located around the engine pulley, mandrel pulleys, idlers, and belt guides on the mower deck. It is installed beneath the tractor and routed through guides and around pulleys to drive the mower blades.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for Craftsman 917.271651

  • Page 1 Read and follow all Safety about this product, Call: 1-800-659-5917 Rules and Instructions before operating this equipment. Sears Craftsman Help Line 5 am - 5 pro, Mon- Sat Sears, Roebuck and Co., Hoffman Estates, II 60179 U.S.A. Visit our Craftsman website:www.sears.com/craftsman...
  • Page 2 ....... Back Cover LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT For two (2) years from the date of purchase, if this Craftsman Riding Equipment maintained, lubricated and tuned up according to the instructions in the owner's manual, Sears will repair or replace...
  • Page 3: Slope Operation

    IMPORTANT: This cutting machine is capable of amputating hands and feet and throwing, objects. Failure to observe the following safety instructions could result in senous injury or death. • Be sure the area is clear of other people Look for this symbol to point out before mowing.
  • Page 4 • Never carry children. They may fall off • Mow up and down slopes, not across. and be seriously injured or interfere • Remove obstacles such as rocks, tree with safe machine operation. limbs, etc. • Never allow children to operate •...
  • Page 5 • Remove obstacles such as rocks, tree • Be sure the area is clear of other limbs, etc. people before mowing. Stop machine • Watch for holes, ruts, or bumps. anyone enters the area. Uneven terrain could overturn • Never carry passengers or children machine.
  • Page 6 PRODUCT SPECIFICATIONS CONGRATULATIONS on your purchase of a new tractor. It has been designed, Gasoline 1.25 engineered and manufactured to give Capacity Unleaded you the best possible dependability and Type: Regular performance. Oil Type SAE 30 (above 32°F) Should you experience any problem you API-SF-SJ): SAE 5W-30 cannot easily remedy, please contact a...
  • Page 7 Steering Wheel Steering Wheel Insert (1) Large Flat Washer (1) Hex Bolt 5/16-18 x 1-1/4 (1) Locknut 5/16-1_ (1)Lockwasher 318 Steedng Extension Steering Wheel Adapter Steering Shaft Boot Seat (1) Washer 17/32 x 1-3/16 x 12 Gauge _(1) Knob For Future Use Video Cassette Slope Sheet Keys...
  • Page 8: Tools Required

    Your new tractor has been assembled at the factory with the exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness.
  • Page 9 NOTE: You may now roll or drive your tractor off the skid. Follow the appropriate instruction below to remove the tractor from the skid. prminal TO ROLL TRACTOR OFF SKID (See Operation section for location function of controls) Press lift lever plunger and raise attachment lift lever to its highest...
  • Page 10 CHECK FOR PROPER POSITION INSTALL MULCHER PLATE (If previously removed) ALL BELTS 1. Raise and hold deflector shield in See the figures that are shown for upright position. replacing motion and mower blade drive Place front of mulcher plate over front belts in the Service and Adjustments of mower deck opening and slide into section of this manual.
  • Page 11 These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. BA'I-rERY CAUTION OR REVERSE FORWARD FAST SLOW WARNING ENGINE ON ENGINE OFF OIL PRESSURE LIGHTS ON O%T_MP FUEL CHOKE MOWER HEIGHT PARKING BRAKE UNLOCKED MOWER LIFT...
  • Page 12 KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference. Light Switch Ignition Switch Attachment Clutch Lift...
  • Page 13 The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields while operating your tractor or performing any adjustments or repairs. We recommend a wide vision safety mask over spectacles or standard safety glasses.
  • Page 14 • The average lawn should be cut to to roll slightly as you restart movement. approximately 2-1/2 inches during the • To restart movement, slowly release cool season and to over 3 inches parking brake and clutch/brake pedal. during hot months. For healthier •...
  • Page 15 ADD GASOLINE NOTE: Before starting, read the warm and • Fill fuel tank to bottom of filler neck. Do cold starting procedures below. Insert key into ignition and turn key not overfill. Use fresh, clean, regular clockwise to start position and release unleaded gasoline with a minimum of key as soon as engine starts.
  • Page 16 MOWING TIPS MULCHING MOWING TIPS • Mower should be properly leveled for IMPORTANT: For best performance, best mowing performance. See =TO keep mower housing free of built-up LEVEL MOWER HOUSING" in the grass and trash. Clean after each use. Service and Adjustments section of this •...
  • Page 17 MAINTENANCE SCHEDULE ____._" FiLL IN DATES ,sYOU COMFL E DATES Check Brake Operation Check Tire Pressure Check Operator Presence and Interlock Systems Check for Loose Fasteners Sharpen/Replace Mower Blades Lubdcation Chart Check Battery Level Clean Battery and Terminals Check Transaxle Cooling Check V-Be fis Check Engine Oil Level Change Engine Oil (with oil filter)
  • Page 18 TRACTOR IMPORTANT: To ensure proper assembly, center hole in blade must align with star Always observe safety rules when on mandrel assembly. performing any maintenance. Reassemble blade bolt, lock washer BRAKE OPERATION and flat washer in exact order as If tractor requires more than six (6) feet shown.
  • Page 19 • Keep battery and terminals clean. Change the oil after every 25 hours of op- • Keep battery bolts tight. eration or at least once a year if the trac- • Keep small vent holes open. tor is not used for 25 hours in one year. •...
  • Page 20 Service air cleaner more often under Use compressed air or stiff bristle brush to thoroughly clean engine dusty conditions. cooling fins. 1. Remove knob(s) and cover. 5. To reassemble, reverse above TO SERVICE PRE-CLEANER procedure. Slide foam pre-cleaner off cartridge. 3.
  • Page 21 WARNING: TO AVIOD SERIOUS INJURY, BEFORE PERFORMING SERVICE OR ADJUSTMENTS: Depress clutch/brake pedal fully and set parking brake. Place gearshift lever in neutral (N) position. Place attachment clutch in "DISENGAGED" position. 4. Turn ignition key to "STOP" and remove key. Make sure the blades and all moving parts have completely stopped.
  • Page 22 • To lower front of mower loosen nut "E" TO LEVELMOWERHOUSING on both front links an equal number of Adjustthe mowerwhile tractoris parked turns. level ground or driveway. Make sure • When distance "D" is 1/8" to 1/2" lower tires are properly inflated (See "PROD- at front than rear, tighten nuts "F"...
  • Page 23 TO REPLACE MOTION DRIVE BELT Mandrel Idler Park the tractor on level surface. Engage parking brake. For assistance, there is a belt installation guide decal on bottom side of left footrest. BELT REMOVAL 1. Remove mower (See "TO REMOVE MOWER" in this section of manual).
  • Page 24 TRANSAXLE GEAR SHIFT LEVER Replace washers and snap retaining NEUTRAL ADJUSTMENT ring securely in axle groove. The transaxle should be in neutral when Replace axle cover. NOTE: To seal tire punctures and the gear shift lever is in neutral (N) (lock prevent flat tires due to slow leaks, gate) position.
  • Page 25 TO REPLACE HEADLIGHT BULB 1. Raise hood. Pull bulb holder out of the hole in the backside of the grill. Replace bulb in holder and push bulb holder securely back into the hole in the backside of the grill. Close hood. INTERLOCKS AND RELAYS Weak or Dead...
  • Page 26 IMPORTANT:. Damage to the needle valve ENGINE and the seat in carburetor may result if screw Maintenance, repair, or replacement of the is fumed in too _ght. emission control devices and systems, which PRELIMINARY SEFRNG - are being done at the customers expense, may be performed by any non-road engine 1.
  • Page 27 Immediately prepare your tractor for alcohol blended fuels (called gasohol or storage at the end of the season or if the using ethanol or methanol) can attract tractor will not be used for 30 days or moisture which leads to separation more.
  • Page 28: Troubleshooting

    TROUBLESHOOTING CHART See appropriate section in manual unless directed to Sears service center PROBLEM CAUSE CORRECTION Will not start 1. Out of fuel. 1. Fill fuel tank. Engine not "CHOKED" 2. See "TO START ENGINE" properly. in Operation section. Engine flooded.
  • Page 29: Troubleshooting Chart

    TROUBLESHOOTING CHART See appropriate section in manual unless directed to Sears service center PROBLEM CAUSE CORRECTION Loss of power 1. Cutting too much grass/too 1. Set in "Higher Cut" position/ fast. reduce speed. 2. Throttle in "CHOKE" 2. Adjust throttle control.
  • Page 30 TROUBLESHOOTING CHART See appropriate section in manual unless directed to Sears service center PROBLEM CAUSE CORRECTION Mowerbladeswill 1. Obstruction in clutch Remove obstruction. not rotate mechanism. 2. Worn/damaged mower Replace mower drive belt. drive belt. Frozen idler pulley. Replace idler pulley. Frozen blade mandrel.
  • Page 31 TRACTOR - - MODEL NUMBER 917.271651 SCHEMATIC - Itlrl BATTERY AMMETER FUSE STARTER (OPTIONAL) °E° SOLENOID CLUTCH / BRAKE (PEDAL UP) ..] (N%%C%%,% IGNITION SWITCH (OPTIONAL) SPARK mACK IGNITION PLUG "_ LINE : TWiN CYL ENGINEL! J s AMP ACe 3_OAPM L_h_l_G SVS_UourPur DFOOE JiALTERNATOR...
  • Page 32 TRACTOR - - MODEL NUMBER 917.271651 ELECTRICAL...
  • Page 33 Nut, Keps Hex 1/4-20 UNC 4207J Cable Ground 6 Ga 12" black 121305X Switch Plunger Nc Gray 175566 Switch Ign 140403 Key Ign Molded Craftsman 179720 Harness Ign 71110408 Bolt BIk. Fin Hex 1/4-20 Unc x 1/2 131563 CoverTerminal Red 178861...
  • Page 34: Chassis And Enclosures

    TRACTOR - - MODEL NUM BER 917.271651 CHASSIS AND ENCLOSURES...
  • Page 35 TRACTOR -- MODEL NUMBER 917.271651 CHASSISAND ENCLOSURES KEY PART DESCRIPTION 174619 Chassis 176554 Drawbat 17060612 Screw 3/8-16 x 3/4 155272 BumperHood/Dash 168337X013 Dash. STD533710 Bolt, Carriage 3/8-16 x 1 174996 Panel, Dash, LH. 145660 Clip Tinnerman GrillsP/L 172105)(010 Panel, Asm. SLKSCR Dash R.H. 17490608 Screw Thdrol 3/8-16 x 1/2 144983X558 HoodAssembly...
  • Page 36 "TRACTOR " " MODEL HUMBER 917.271651 GRouND DRWE...
  • Page 37: Ground Drive

    TRACTOR - - MODEL NU MBER 917.271651 GROUND DRIVE PART PART DESCRIPTION DESCRIPTION Transaxle (See Breakdown) 71170764 Bolt Hex 7/16-20 x 4 Gr 5 Dana 4360-140 STD551143 Washer Lock Hvy Hlcl Spr 7/16 146682 Spring Retum Brake T/a Zinc 154778 Keeper Belt Engine 123666X Pulley Transaxle 18/20"...
  • Page 38: Steering Assembly

    TRACTOR - - MODEL NUMBER 917.271651 STEERING ASSEMBLY i_',,,--,_ ..,, _.., _----.___, °J °/"...
  • Page 39 TRACTOR - - MODEL NUMBER 917.271651 STEERING ASSEMBLY KEY PART DESCRIPTION 139768 SteeringWheel 175131 Front Axle Assembly 169840 Spindle Assembly, L.H. 169839 Spindle Assembly, R.H. 6266H Baadng, Race, Thrust, Hardened 121748X Washer 25/32 x 1-5/8 x 16 Gauge 19272016 Washer 27/32 x 1-1/4 x 16 Gauge 12000029 Ring, Klip 3366R...
  • Page 40 TRACTOR -- MODEL NUMBER 917.271651 ENGINE OPTIONAL EQUIPMENT Spark Arrester KEY PART KEY PART DESCRIPTION NO. NO, DESCRIPTION 170545 Control Throttle/Choke 137040 LineFuel 20" 17720408 Screw Hex Thd Cut 1/4-20xl/2 T 148315 PlugOil Drain ..Engine (See Breakdown) Briggs 124028X Bushing Snap Nyl BIk Fuel Line Mode1310707-0137-E1 17670412...
  • Page 41 TRACTOR - - MODEL NUMBER 917.271651 LIFTASSEMBLY KEY PART PART DESCRIPTION DESCRIPTION 159460 Washer Asm Inner Spring W/ STD624008 Retainer Spring Plunger 173288 Link Front 159471 Shaft Asm. Lift RH 73350800 Nut Jam Hex 1/2-13 Unc Pin Groove 105767X 175689 Trunnion Front Susp.
  • Page 42: Seat Assembly

    TRACTOR - - MODEL NUMBER 917.271651 SEAT ASSEMBLY KEY PART KEY PART DESCRIPTION DESCRIPTION 140122 Seat 121248X Bushing Snap BIk Nyl 5g Id 140551 Bracket Pnt Pivot Seat (blk) 72050412 Bolt Rdhd Sht Nk 1/4-20x1-1/2 71110616 Bolt Fin Hex 3/8-16unc X 1 134300 Spacer Split 28 X 96 Zinc 19131610...
  • Page 43 TRACTOR - - MODEL NUMBER 917.271651 DECALS PART KEY PART DESCRIPTION DESCRIPTION 156368 146046 Decal, V-belt Dr Sch Decal, Oper. Instr. 181702 182018 Decal, Dash, Panel Decal, Replcmnt 160396 171696 Decal, Hood Rh Decal, V-belt Schematic 138047 171697 Decal, Hood Lh Decal Battery 149516 181450...
  • Page 44: Mower Deck

    TRACTOR - - MODEL NUMBER 917.271651 MOWER DECK...
  • Page 45 TRACTOR -- MODEL NUMBER 917.271651 MOWER DECK KEY PART PART DESCRIPTION DESCRIPTION 165892 Mower Deck Assembly, 42" 131845 Arm Assembly, Pad, Brake STD533107 Bolt 133943 Washer, Hardened 138017 Bracket Assembly,Sway Bar, 155046 Arm, Idler Front 165723 Spacer, Retainer 165460 Bracket Sway Bar 38/42" Deck 141043 Guard, TUV Idler STD624008...
  • Page 46 TRACTOR - - MODEL NUM BER 917.271651 DANA TRANSAXLE - - MODEL NUMBER D4360-140...
  • Page 47 TRACTOR - - MODEL NUMBER 917.271651 DANA TRANSAXLE - - MODEL NUMBER D4360-140 KL=Y PART KEY PART DESCRIP'nON DESCRIPTION 170981 Housing,Upper 120472X Spacer, .633 X .87 X .755 2274J Screw, Tapping, 1/4-20 X .734 105928X Sprocket, 9T 134400 Ball, Detent 170988 Gear, Bevel, 36T 105904X...
  • Page 48 TRACTOR - - MODEL NUM BER 917.271651 BRIGGS & STRATTON ENGINE-MODEL NUMBER 310707, TYPE NUMBER 0137-E1 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL.
  • Page 49 TRACTOR - - MODEL NUMBER 917.271651 BRIGGS & STRA'FTON ENGINE-MODEL NUMBER 310707, TYPE NUMBER 0137-E1 8751 711_ 467_ 344 _I_ 404@_ 616_. 404@' 22"/ I 1019 LABEL KIT I 1058 OWNER'S MANUAL 232 / 108A _A _ "U I 231 _ I .4 e _ -_'f-I 127 g...
  • Page 50 TRACTOR -- MODEL NUMBER 917.271651 BRIGGS & STRAI-rON ENGINE-MODEL NUMBER 310707, TYPE NUMBER 0137-E1 783_jj 287111 523 1 5241_ i...
  • Page 51 TRACTOR - - MODEL NUMBER 917.271651 BRIGGS & STRATFON ENGINE-MODEL NUMBER 310707, TYPE NUMBER 0137-E1 977 CARBURETOR GASKET SET 121 CARBURETOR OVERHAUL KIT 104_1270 =76_ 987@ _s_ 137 0 2760 634A_.._ 634__._ 1170 231_142A _105_ _,"_ 1095 VALVE GASKET SET 358 ENGINE GASKET SET 524_ 691_...
  • Page 52 TRACTOR -- MODEL NUMBER 917.271651 BRIGGS& STRATrON ENGINE-MODEL NUMBER310707,TYPE NUMBER0137-E1 PART PART DESCRIPTION DESCRIPTION 231855 I_ Valve-Float Needle 690156 Cylinder Assembly 105A 694922 Valve-Float Needle 399265 Kit-Bushing/Seal 690577 Seat-Inlet 391086 • Seal-Oil (Magneto Side) 690464 Valve-Choke (Manual Choke) 494238 Sump-Engine 108A 692344 Valve-Choke (Choke-A-Matic) 690188...
  • Page 53 TRACTOR - - MODEL NUMBER 917.271651 BRIGGS & STRATTON ENGINE-MODEL NUMBER 310707, TYPE NUMBER 0137-E1 PART PART DESCRIPTION DESCRIPTION 691002 Screw (Dipstick Tube) 692037 Harness-Wiring 690844 Housing-Blower 789A 695050 Harness-Wiring 690960 Screw (Blower Housing) 693167 Nut (Brush Retainer) 690499 Shield-Cylinder 691429 Cap-Drive 691003...
  • Page 55 SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION 1. Fold this page along dotted line Indicated above. 2. Hold page before you so that Its left edge Is vertically parallel to a tree trunk or other upright structure. 3. Sight across the fold in the direction of hill slope you want to measure. 4.
  • Page 56 For repairof major brandappliances in your own home... no matter who made it, no matter who soldit! 1-800-4-MY-HOME ® Any_me, day ornight (U.S._and Canada) (1-8004694663) Www.sear_.cOllrl For repairof carry-inproducts like vacuums,lawn equipment,and electronics, callfor the nearestSears Parts and Repair Center. 1-800-488-1222 AnyOne, dayornight (U.SAonly) www.se_lT_o0m...
