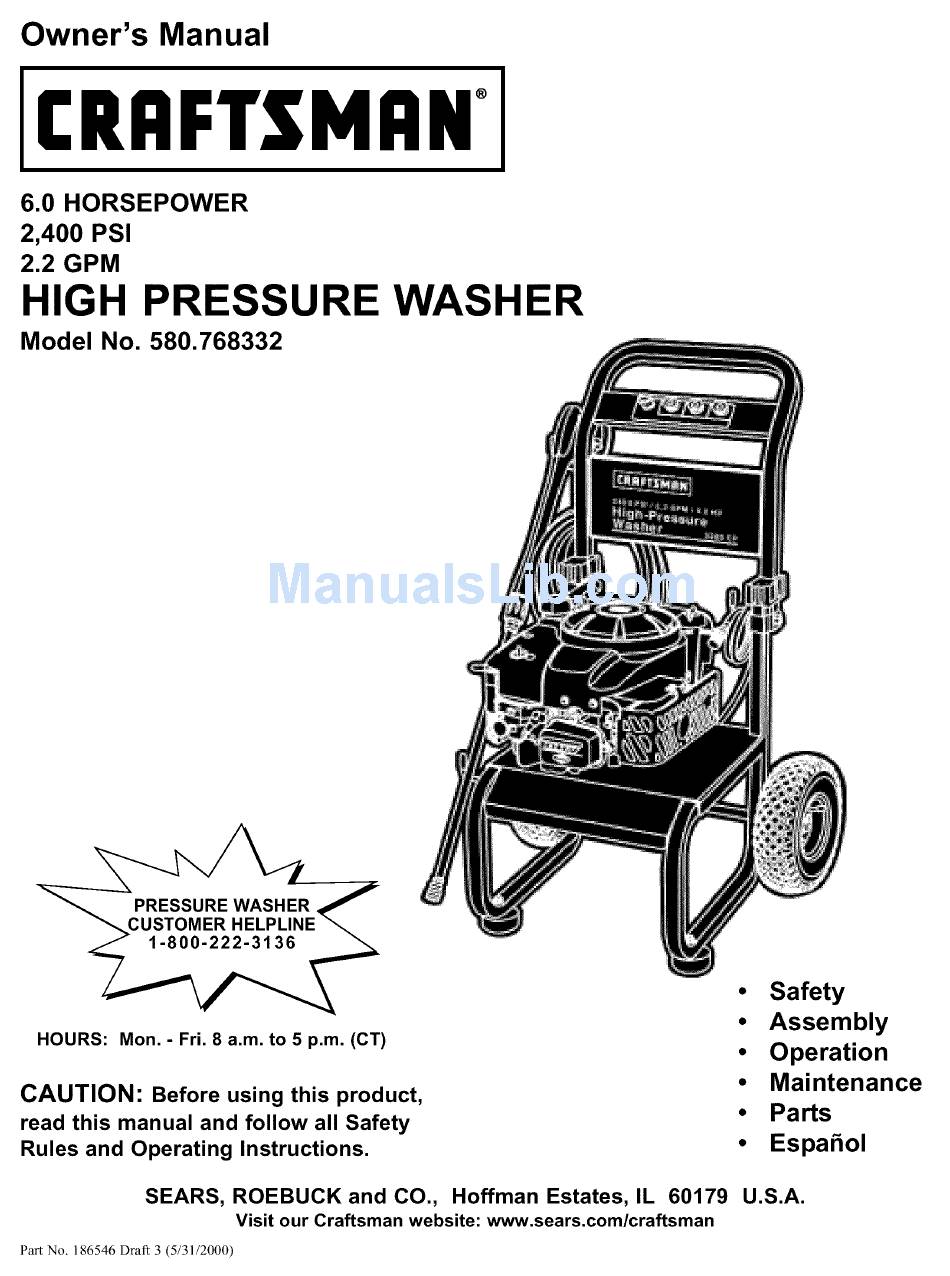

Owner's Manual
CRRFTSMRN °
6.0 HORSEPOWER
2,400 PSI
2.2 GPM
HIGH PRESSUR
Model No. 580.768332
WASHER
HOURS:
Mon.- Fri. 8 a.m. to 5 p.m. (CT)
CAUTION"
Before using this product,
read this manual
and follow all Safety
Rules and Operating
Instructions.
•
Safety
•
Assembly
•
Operation
•
Maintenance
•
Parts
•
Espahol
SEARS,
ROEBUCK
and CO.,
Hoffman
Estates,
IL 60179
U.S.A.
Visit our Craftsman website: www.sears.com/craftsman
Part No. 186546 Draft 3 (5/31/2000)
