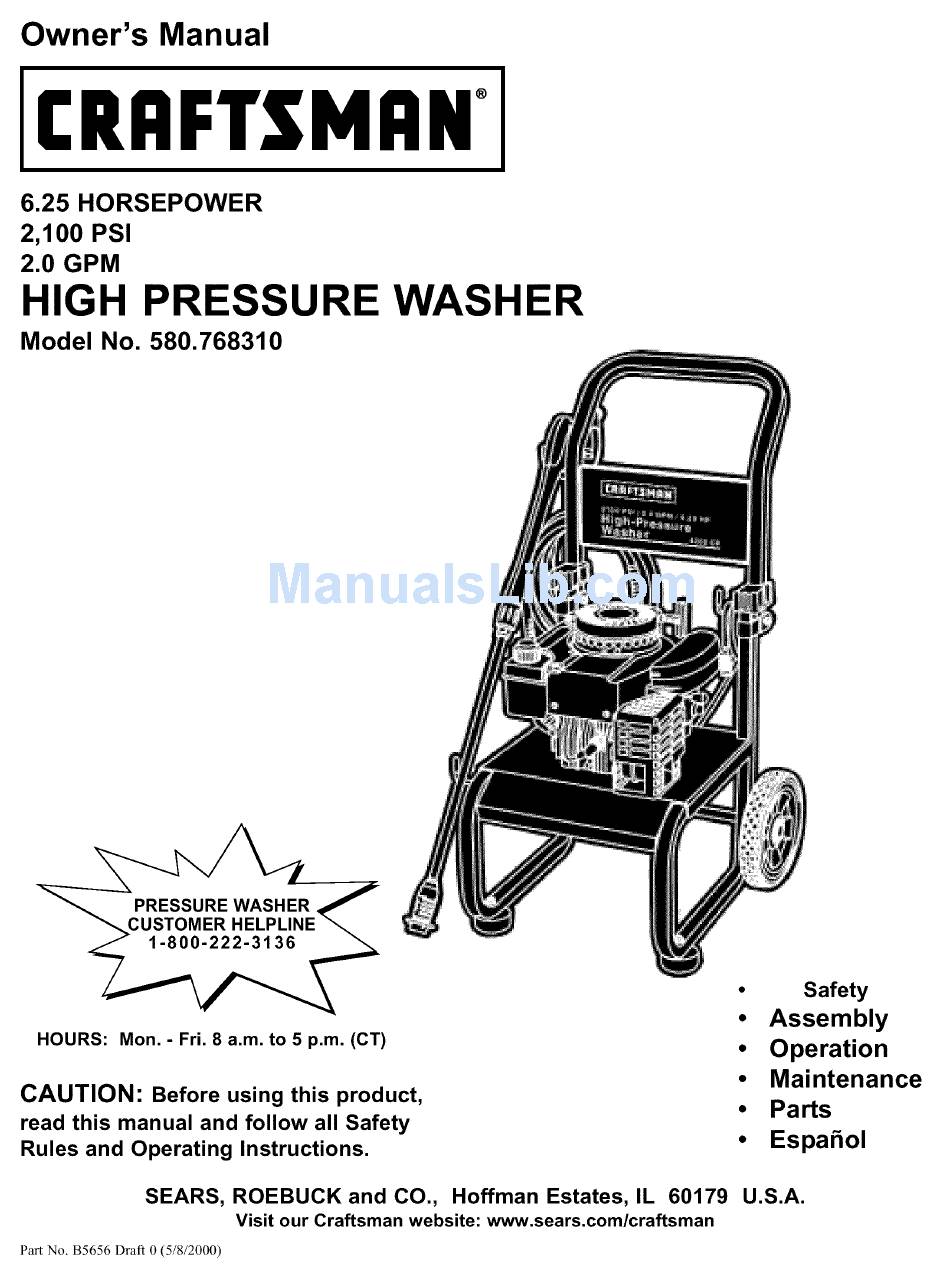

Owner's Manual
CRRFTSMRN °
6.25 HORSEPOWER
2,100 PSI
2.0 GPM
HIGH PRESSUR

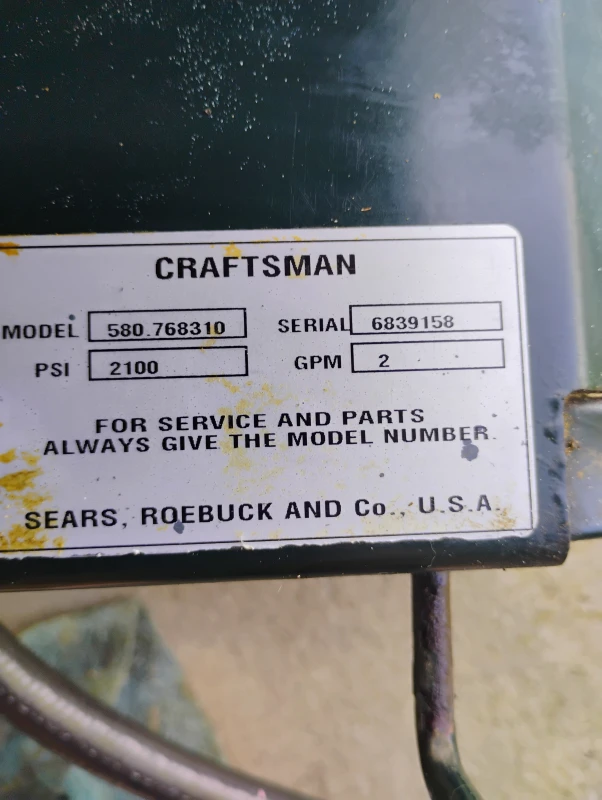

Model No. 580.768310
WASHER
HOURS:
Mon.- Fri. 8 a.m. to 5 p.m. (CT)
CAUTION"
Before using this product,
read this manual
and follow all Safety
Rules and Operating
Instructions.
•
Safety
•
Assembly
•
Operation
•
Maintenance
•
Parts
•
Espahol
SEARS,
ROEBUCK
and CO.,
Hoffman
Estates,
IL 60179
U.S.A.
Visit our Craftsman website: www.sears.com/craftsman
Part No. B5656 Draft 0 (5/8/2000)
Advertisement
Table of Contents
Related Manuals for Craftsman 580.768310
Summary of Contents for Craftsman 580.768310
- Page 1 CAUTION" Before using this product, • Parts read this manual and follow all Safety • Espahol Rules and Operating Instructions. SEARS, ROEBUCK and CO., Hoffman Estates, IL 60179 U.S.A. Visit our Craftsman website: www.sears.com/craftsman Part No. B5656 Draft 0 (5/8/2000)
- Page 2 HIGH PRESSURE WASHER For one year from the date of purchase, when this Craftsman pressure washer is maintained and operated according to the instructions in the owner's manual, Sears will repair, free of charge, any defect in material and workmanship.
- Page 3 • Do NotallowCHILDREN tooperate the pressure • Nevermove the machine by pulling onthe high washer a t anytime. pressure hose. U sethehandle provided onthe unit. • Operate engine onlyatgoverned speed. R unning theengine atexcessive speeds increases t he • Always becertain the spraygun,nozzles and hazard of personal injury.DoNottamper w ithparts accessories arecorrectly attached.
- Page 4 ASSEMBLING YOUR PRESSURE readyforuseonlyafterit hasbeenproperly serviced WASHER withthe recommended oilandfuel. Your Craftsman high pressure washer was mostly If you haveanyproblemswith the assemblyof assembled at the factory. However, you will need to your pressurewasher,pleasecall the pressure washerhelplineat 1-800-222-3136. perform these tasks before you can operate your...
-
Page 5: Add Gasoline
Add Gasoline • Before you connect your garden hose to the water inlet, inspect the inlet screen. Clean the screen if it contains debris or have it replaced if damaged. Do DANGER! Never fill fuel tank indoors. Never fill Not run the pressure washer if the inlet screen fuel tank when engine is running or hot. - Page 6 KNOW YOUR PRESSURE WASHER Read the owner's manual and safety rules before operating your pressure washer. Compare the illustrations with your pressure washer to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference. Detergent Pick-Up High Pressure Hose Tube and Filter...
- Page 7 HOW TO USE YOUR PRESSURE Left hand Safety Glasses squeezes WASHER trigger and If you have any problems operating your pressure steadies upper washer, please call the pressure washer helpline at of unit 1-800-222-3136. To Start Your Pressure Washer To start your engine-powered pressure washer for the Do Not attach first time, follow these instructions step-by-step.
- Page 8 Twisting the nozzle adjusts the spray pattern from How to Stop Your Pressure Washer a narrow pattern to a fan pattern. • Move control lever to "Stop" position. • Squeeze trigger on the spray gun to relieve pressure in the hose. NOTE: A small amount of water will squirt out when you release the pressure.
- Page 9 • Makesurethegardenhoseis connected t othe For Rinsing: waterinlet.Check thatthe highpressure hoseis • Slide the nozzle backward to high pressure, press connected t othe spraygunandthe pump. S tart the trigger and wait for the detergent to clear. theengine. NOTE: You can also stop detergent flow by removing •...
- Page 10 OWNER'S RESPONSIBILITIES Follow the hourly or calendar intervals, whichever occurs first. More frequent service is required when operating in adverse conditions noted below. MAINTENANCE SCHEDULE HOURLY OPERATING SERVICE DATES FILL IN DATES AS YOU COMPLETE INTERVAL REGULAR SERVICE Every 25 Every 100 Before Each Hours or...
- Page 11 BEFORE EACH USE If the screen is damaged, the o-ring kit contains a replacement in-line filter screen and an o-ring. If • Check engine oil level. undamaged, reuse screen. • Check water inlet screen for damage. Place the in-line filter screen into the threaded end •...
- Page 12 • Use the wire included in the kit or a small paper Parts in the O-Ring Kit include: clip to free the foreign materials clogging or • 1 o-ring, red, (p/n B2726) for the end of the spray restricting the nozzle. gun connection between gun and nozzle extension.
- Page 13 ENGINE MAINTENANCE • Remove dirty air filter element carefully to prevent debris from falling into carburetor. Discard. Checking Oil Level • Clean inside of cover and body thoroughly. Oil level should be checked prior to each use or at • Install new air filter elements in body.
- Page 14 It is important to prevent gum deposits from forming in hose. Replace the hose with the genuine essential fuel system parts such as the carburetor, fuel Craftsman part. filter, fuel hose or tank during storage. Also, • Drain water from hose and properly coil it on the...
- Page 15 Problem Cause Correction Nozzle in low pressure mode. Pull nozzle backward for high pressure mode. Water inlet is blocked. Clear inlet. Inadequate water supply. Provide adequate water flow. Inlet hose is kinked or leaking. Straighten inlet hose, patch leak. Pump has following Check and clean inlet hose Clogged inlet hose strainer.
- Page 16 CRAFTSMAN 2,100PSI Pressure Washer 580.768310 Main Unit m Exploded View \\\\\\ /--24 900_ 34 _ >...
- Page 17 CRAFTSMAN 2,100 PSI Pressure Washer 580.768310 Main Unit m Parts List Item PaN # Qty. Description B5833 DECAL, Instructions 96307 DECAL, 1-800 Number EB5647 BASE, Powder Green DECAL, Data B5668 DECAL, Unit 30809 GROMMET, Chemical Hose B1631B BILLBOARD B2142 TIRE, 2"x 9" Plastic 75402 PUSHNUT, 1/2"...
- Page 18 CRAFTSMAN 2,100 PSI Pressure Washer 580.768310 Pump m Exploded View --16 1 I 11 _--------8 3°_/33_ O--' 38-_ 3__7...
- Page 19 CRAFTSMAN 2,100PSI Pressure Washer 580.768310 Pump m Parts List Item PaN # Qty. Description Item Part # Qty. Description 98300 SEAL, Engine Donut B3286 SEAL, Double-Lip 97962 SHCS, M6 - 1 x 25 97837 O-RING, Hi-Pressure 96795 Transfer SLEEVE, Grommet Spacer...
- Page 20 ENGINE, 6.25 HP, Tecumseh, 143.006204 - Exploded View - Engine...
- Page 21 ENGINE, 6.25 HP, Tecumseh, 143.006204 - Parts List - Engine Item Part # Qty. Description Item Part # Qty. Description Screw, 10-24 x 9/16" 37465 Cylinder 30200 26727 Dowel Pin 29752 Nut & Lock Washer, 1/4-28 33734 Breather Element 30593 Retainer Clip Screw, 1/4-28 x 7/8"...
- Page 22 ENGINE, 6.25 HP, Tecumseh, 143.006204 - Exploded View and Parts List - Recoil Item Item Part# Part # Qty. Description Qty. Description 590763 Rewind Starter 590698 Starter Dog 590699 590599A Spring Pin Dog Spring 590600 Washer 590700 Pulley & Rewind Spring Ass'y 590696 Retainer 590764...
- Page 23 ENGINE, 6.25 HP, Tecumseh, 143.006204 - Exploded View and Parts List - Carburetor (_\20A Item Item Pan # Qty. Description Pan # Qty. Description 640276 Carburetor 640027 Idle Restrictor Screw 631615 Throttle Shaft & Lever 640053 Idle Restrictor Screw Cap 631867 Float Bowl Assembly...
- Page 24 If you have any questions regarding your warranty rights Your Warranty Rights and Obligations and responsibilities, your should contact your nearest The California Air Resources Board ("CARB") and Sears authorized service center or call Sears at Roebuck and Co., USA, are pleased to explain the Emission 1-800-473-7247.
- Page 25 Durante un a_o a partir de la fecha de compra, Sears reparar& sin cargo alguno, cualquier defecto en material y mano de obra, siempre y cuando esta maquina lavadora de alta presi6n Craftsman haya sido mantenida y puesta en funcionamiento de acuerdo alas instrucciones suministradas en el manual del propietario.
- Page 26 • Algunos quimicos o detergentes pueden ser nocivos si • Nunca mueva la maquina halando la manguera de alta se inhalan o ingieren, causando nausea severa, presi6n. Utilice la manija que viene con la unidad. desmayos o envenenamiento. Los elementos nocivos •...
- Page 27 La gran mayoria de su maquina lavadora a presi6n Si tiene problemas con el ensamble de su maquina Craftsman ha sido ensamblada en la fabrica. Sin embargo, lavadora a presion, Ilame a la linea de ayuda de la usted debera Ilevar a cabo los siguientes procedimientos maquina lavadora a presion al 1-800-222-3136.
- Page 28 • Conecte el otro extremo de la manguera de alta presi6n Agregue Gasolina a la salida de alta presi6n de la bomba. Apriete con la mano. iPELIGRO! Nunca Ilene el tanque de combustible en recintos cerrados. Nunca Ilene el tanque de combustible cuando el motor est6 funcionando o est6 caliente.
- Page 29 CONOZCA SU MAQUINA LAVADORA DE ALTA PRESION Lea el manual del propietario y las reglas de seguridad antes de poner en marcha su maquina lavadora a presion. Compare las ilustraciones con su maquina lavadora a presiOn para familiarizarse con las ubicaciones de los diferentes controles y ajustes.
- Page 30 COMO USAR SU MAQUlNA La mano Lentes de Seguridad izquierda oprime LAVADORA A PRESION el gatillo y Si tiene problemas operando su maquina lavadora a estabiliza la parte presi6n, por favor Ilame a la linea de ayuda para maquinas de la lavadoras a presi6n al 1-800-222-3136.
- Page 31 • Apriete el gatillo de la pistola de rociado para • Para una limpieza mas efectiva, mantenga la boquilla de eliminar la presion de la manguera. rociado de 8 a 24 pulgadas de la superficie de limpieza. NOTA: Observara una peque_a cantidad de agua cuando •...
- Page 32 • Aplique un rociado de alta presi6n en un Area pequeSa, Enjuage de la M_quina Lavadora Presion despu6s revise si la superficie presenta daSos. Si no encuentra daSos, puede continuar con el trabajo Iimpieza. iADVERTENCIA! Sea extremadamente cuidadoso si usa la maquina lavadora a presi6n desde una •...
- Page 33 RESPONSABILIDADES DEL PROPIETARIO Siga el programa de mantenimiento segt_n el nt_mero de horas o segt_n el calendario, Io que suceda primero. Se requiere de servicio con mayor frecuencia cuando opere la unidad en las condiciones adversas descritas a continuaci6n. HORARIO DE MANTENIMIENTO INTERVALO DE OPERACION...
- Page 34 ANTES DE CADA USO 2. Si el colador esta daOado, encontrara un colador para el filtro en linea y un anillo 'o' de repuesto en el juego de • Revise el nivel de aceite del motor. anillos 'o'. Si No esta daOado, vuelva a usarlo. •...
- Page 35 Use el alambre incluido en el juego o un clip de papel pequeSo para liberar los materiales extraSos que estan tapando u obstruyendo la boquilla. 1 anillo 'o' amarillo, (pin B2264) para el extremo de la manguera de alta presi6n. Introduzca el alambre dentro de la boquilla y girelo hacia los lados, hacia adelante y atras hasta despejar la obstrucci6n.
- Page 36 Cambie el aceite con el motor caliente despu_s del • Limpie minuciosamente la parte interna de la cubierta y funcionamiento, como se indica a continuacion: la caja. • Instale los elementos de filtro de aire nuevo. Usted • Drene el tanque del combustible haciendo funcionar la maquina lavadora a presi6n hasta que el tanque est6 puede comprar los elementos del filtro de aire nuevos...
- Page 37 Remplace la manguera experiencia indica que los combustibles con mezclas de con la parte Craftsman genuina. alcohol (llamados gasohol, etanol o metanol) pueden atraer la humedad, Io que Ileva a la separaci6n y formaci6n de •...
- Page 38 Problema Causa Solucibn La boquilla esta en el modo de baja Mueva la boquilla hacia atras para el presi6n. modo de alta presi6n. La entrada de agua esta bloqueada. Limpie la entrada. Suministro de agua inadecuado. Proporcione flujo de agua adecuado.
- Page 39 Sus Obligaciones y Derechos de Garantia Si tiene preguntas acerca de sus responsabilidades y derechos de garantia, deber& ponerse en contacto con su centro de La Junta Directiva de Recursos Ambientales de California ("CARB') servicio autorizado mas cercano o Ilamar a Sears al y Sears Roebuck and Co.
- Page 40 For in-home major brand repair service: Call 24 hours a day, 7 days a week 1-800-4-MY-HOME sM (1-800-469-4663) Para pedir servicio de reparacibn a domicilio - 1-800-676-5811 In Canada for all your service and parts needs call - 1-800-665-4455 Au Canada pour tout le service ou les pi_ces For the repair or replacement parts you need: Call 7 am - 7 pm, 7 days a week...
