Rewind Starter - Craftsman 143.004016 Operator's Manual

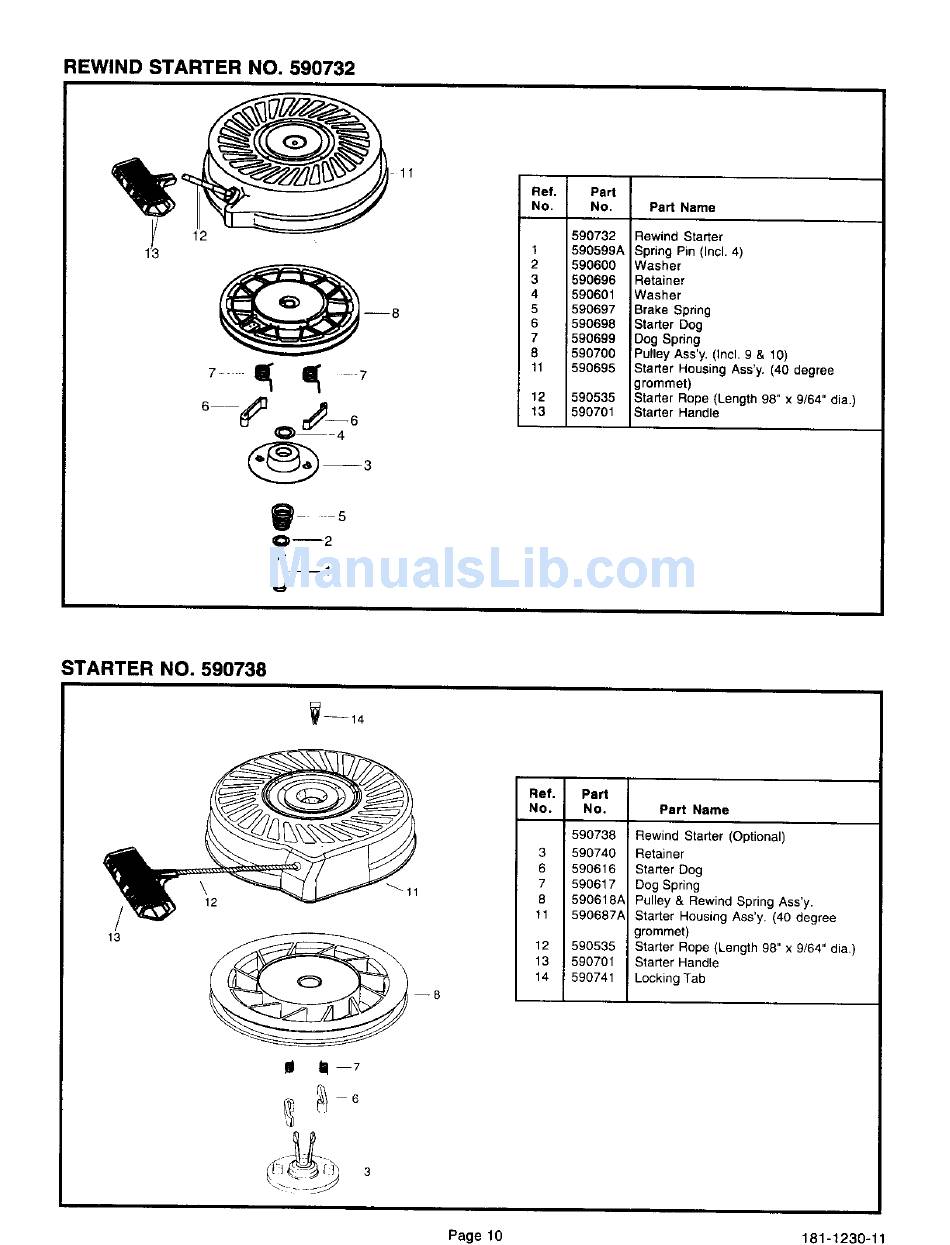

REWIND STARTER NO. 590732
11
12
6
Ref. Part
No. No. Part Name
590732 Rewind Starter
1 590599A Spring Pin (Incl. 4)
2 590600 Washer
3 590696 Retainer
4 590601 Washer
5 590697 Brake Spring
6 590698 Starter Dog
7 590699 Dog Spring
8 590700 Pulley Ass'y. (Incl. 9 & 10)
11 590695 Starter Housing Ass'y. (40 degree
grommet)
12 590535 Starter Rope (Length 98" x 9/64" dia.)
13 590701 Starter Handle
STARTER NO. 590738
_--14
\
12
el la 7
6
--8
Ref. Part
No. No. Part Name
3
6
7
8
11
12
13
14
590738
59074O
590616
59O617
590618A
590687A
590535
590701
59O741
Rewind Starter (Optional)
Retainer
Starter Dog
Dog Spring
Pulley & Rewind Spring Ass'y.
Starter Housing Ass'y. (40 degree
grommet)
Starter Rope (Length 98" x 9/64" dia.)
Starter Handle
Locking Tab
3
Page 10 181-1230-11
