Operator's Manual
CRAFTSMAN+
i
2.5 HP Motor
ELECTRIC CHAIN SAW
Model No.
358.341240
-- 14 in. Bar
®
_
ARNING:
Read and foilow alJ Safety Rules and Operating
Instructions before first use of this product.
For answers to your questions about this product:
Call 7 am-7 pm, Mon-Sat;
Sun, 10 am-7 pm
•
1-800-235-5878
Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA
5,.qo-orte_z oai24/oa
Advertisement
Related Manuals for Craftsman 358.341240
Summary of Contents for Craftsman 358.341240

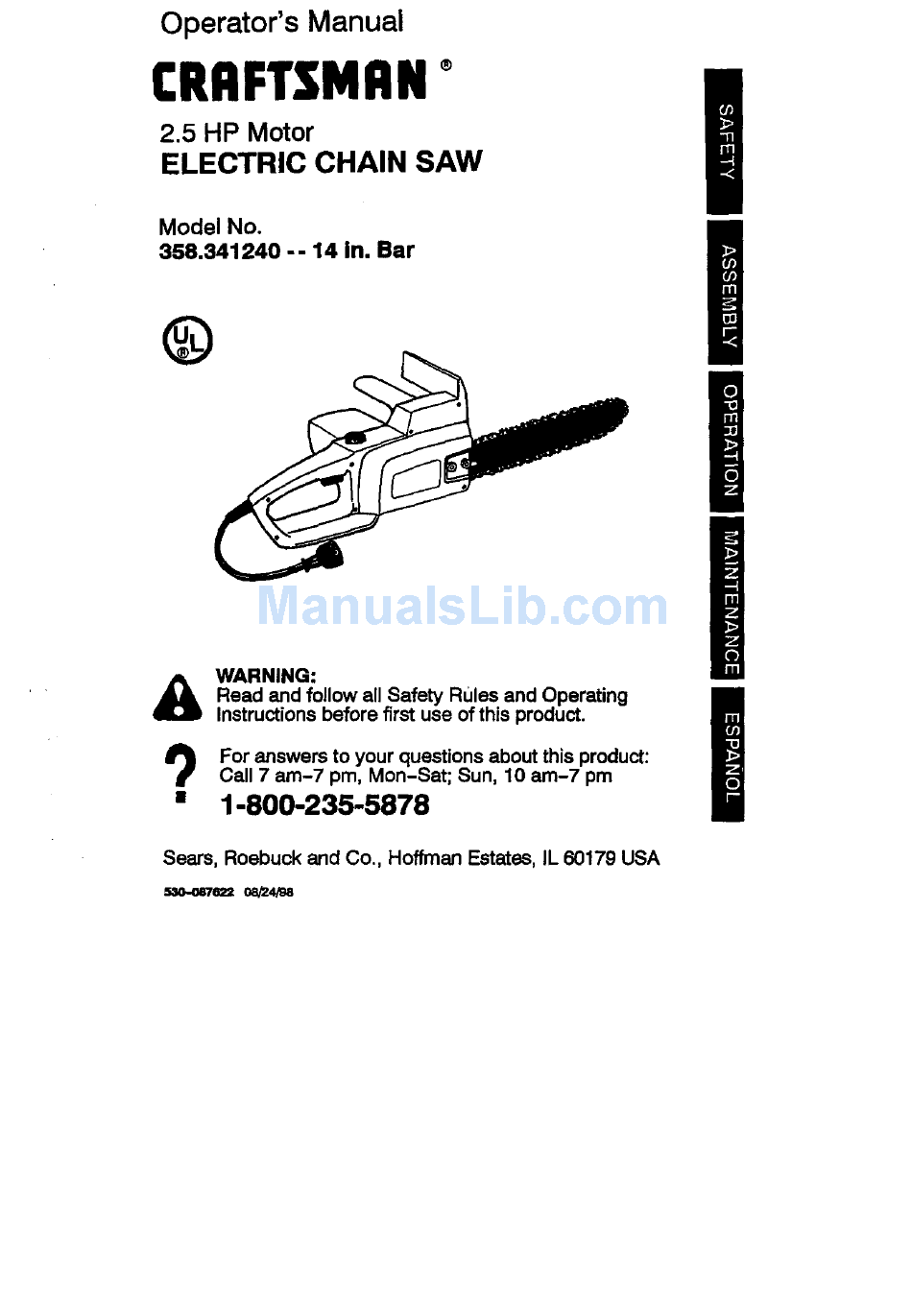

- Page 1 Operator's Manual 2.5 HP Motor CRAFTSMAN+ ELECTRIC CHAIN SAW Model No. 358.341240 -- 14 in. Bar ® Read and foilow alJ Safety Rules and Operating ARNING: Instructions before first use of this product. For answers to your questions about this product: Call 7 am-7 pm, Mon-Sat;...
