Craftsman 973.111360 Owner's Manual

3/8 in. 15.6 volts cordless drill-driver variable speed / reversible
Hide thumbs

Advertisement

Quick Links

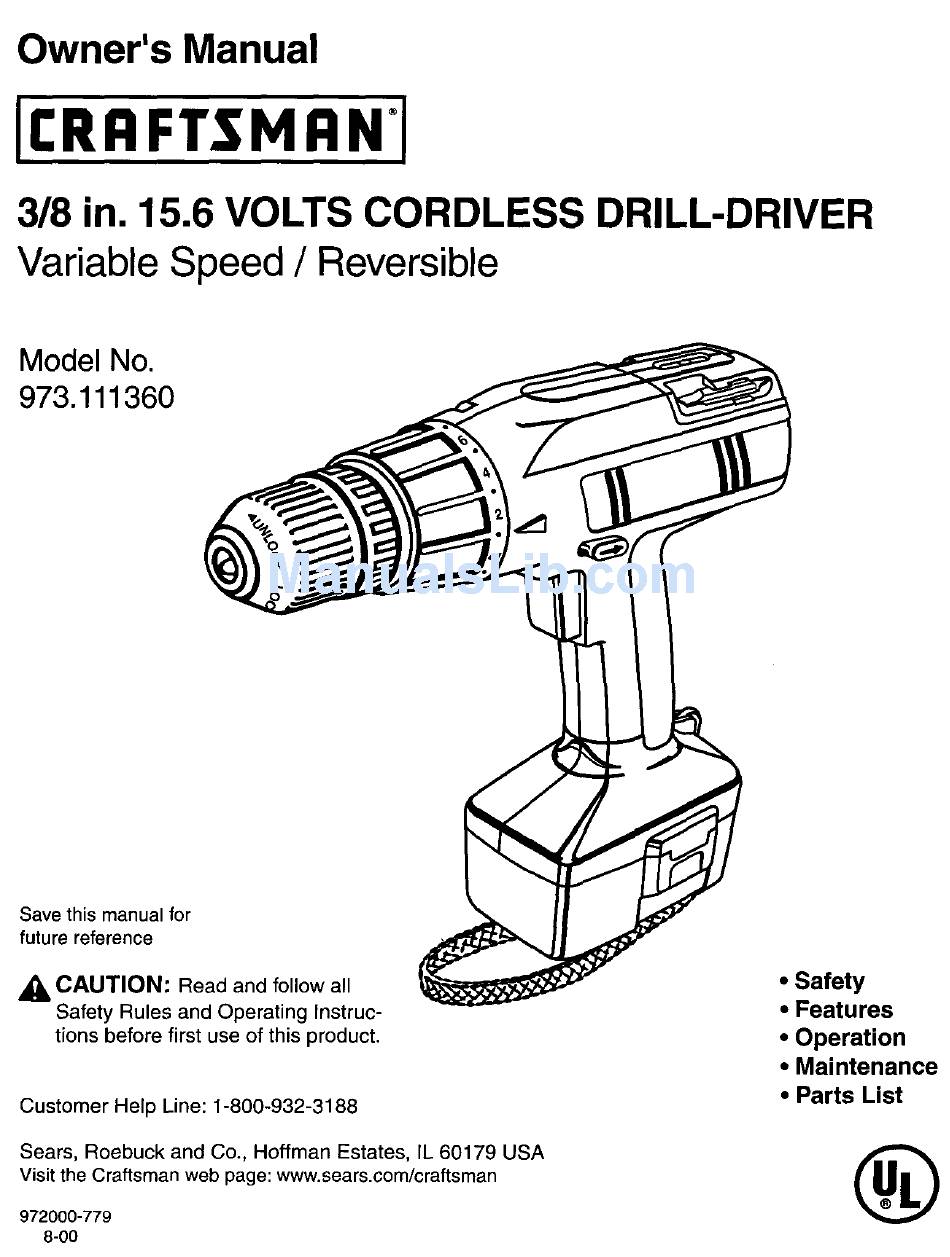

Owner's Manual
ICRRFTSMRN'I
3/8 in. 15.6 VOLTS CORDLESS DRILL-DRIVER
Variable Speed / Reversible
Model No.
973.111360
Save this manual
for
future reference
_,
CAUTION:
Read and follow all
Safety Rules and Operating
Instruc-
tions before first use of this product.
Customer
Help Line: 1-800-932-3188
Sears, Roebuck
and Co., Hoffman
Estates,
IL 60179 USA
Visit the Craftsman web page: www.sears.com/craftsman
972000-779
8-00
• Safety
• Features
• Operation
• Maintenance
• Parts List
®

Advertisement

loading

  Related Manuals for Craftsman 973.111360

  Summary of Contents for Craftsman 973.111360

  • Page 1 Safety Rules and Operating Instruc- tions before first use of this product. • Operation • Maintenance • Parts List Customer Help Line: 1-800-932-3188 ® Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA Visit the Craftsman web page: www.sears.com/craftsman 972000-779 8-00...
  • Page 2 TABLE OF CONTENTS • General Safety Rules ..............................• Specific Safety Rules/Symbols ........................... • Features ..................................• Operation .................................. 7-12 • Maintenance ................................. • Accessories .................................. • Warranty ..................................• Exploded View And Repair Parts List ........................... • Parts Ordering / Service ............................... Personal Safety WARNING:...
  • Page 3 Tool Use and Care • Use clamps or other practical way to secure and • Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools, with sharp support the workpiece to a stable platform. Holding cutting edges are less likely to bind and are easier to the work by hand or against your body is unstable and control.
  • Page 4 Important Safety Instructions For Charger Save these instructions.This manual contains • Do not operate charger if it has received a sharp important safety and operating instructions for blow, been dropped, or otherwise damaged in any charger item number 9-11005 (982031-001). Follow- way;...
  • Page 5 SYMBOLS SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second) rain Minutes Time Alternating Current Type or a characteristic of current --=-- Direct Current Type or a characteristic of current No Load Speed Rotational speed, at no load .../rain Revolutions or Reciprocation Per Minute Revolutions, strokes,...
  • Page 6: Specifications

    KNOW YOUR DRILL-DRIVER SPECIFICATIONS: See Figure 1. Chuck Capacity 3/8 in. Before attempting to use any tool, familiarize yourself with Motor 15.6 Volts DC all operating features and safety requirements. Charger Rating 120 Volts, 60 Hz, AC Only WRIST STRAP No Load Speed 0 - 600 RPM A wrist strap is provided to reduce the chances of drop-...
  • Page 7: Switch Lock

    SWITCH WARNING: Always wear safety goggles or safety See Figure 2. glasses with side shields when operating tools. Failure to do so could result in objects being thrown To turn your drill ON, depress the switch trigger.To turn it into your eyes, resulting in possible serious injury. OFF, release the switch trigger.
  • Page 8 REVERSIBLE See Figure 3. This tool has the feature of being reversible. The direction of rotation is controlled by a selector located above the switch trigger. With the drill held in normal operating position, the direction of rotation selector should be positioned to the left of the switch for drilling.
  • Page 9 KEYLESS CHUCK INSTALLING BITS See Figure 7. See Figure 5. • Lock switch trigger on your drill by placing the direc- Your new drill has a keyless chuck, As the name implies, tion of rotation selector in center position, you can hand tighten or release drill bits in the chuck jaws. See Figure 2.
  • Page 10 REMOVINGBITS WARNING: Always wear safety goggles or safety glasses with side shields when operating tools. See Figure 7. Failure to do so could result in objects being thrown • Lock switch trigger or your drill by placing the direction into your eyes, resulting in possible serious injury. of rotation selector in center position.
  • Page 11 DRILLING OVERLOAD See Figure 11. Your drill has a built-in overload protector to protect the motor during overloading or prolonged use. The overload protector automatically activates to break the circuit. When this occurs, allow your drill to cool a few seconds before resuming operation.
  • Page 12 REMOVAL (Continued) WARNING: When servicing, use only identical Craftsman replacement parts. Use of any other part Insert hex key wrench in chuck and tighten chuck may create a hazard or cause product damage. jaws securely. Tap sharply with a mallet in a counter- clockwise direction.
  • Page 13 BATTERY PACK REMOVAL AND PREPARATION To preserve natural resources, please FOR RECYCLING recycle or dispose of batteries properly. This product contains nickel-cadmium ,_kWARNING: Upon removal, cover the battery pack's Local+ state or federal laws terminals with heavy duty adhesive tape. Do not may prohibit disposal of nickel-cadmium...
  • Page 15: Parts List

    CRAFTSMAN 3/8 in. 15.6 VOLTS CORDLESS DRILL-DRIVER - MODEL NO. 973.111360 The model number will be found on a plate attached to the motor housing. Always mention the model number in all correspondence regarding your 3/8 in. 15.6 VOLTS CORDLESS...
