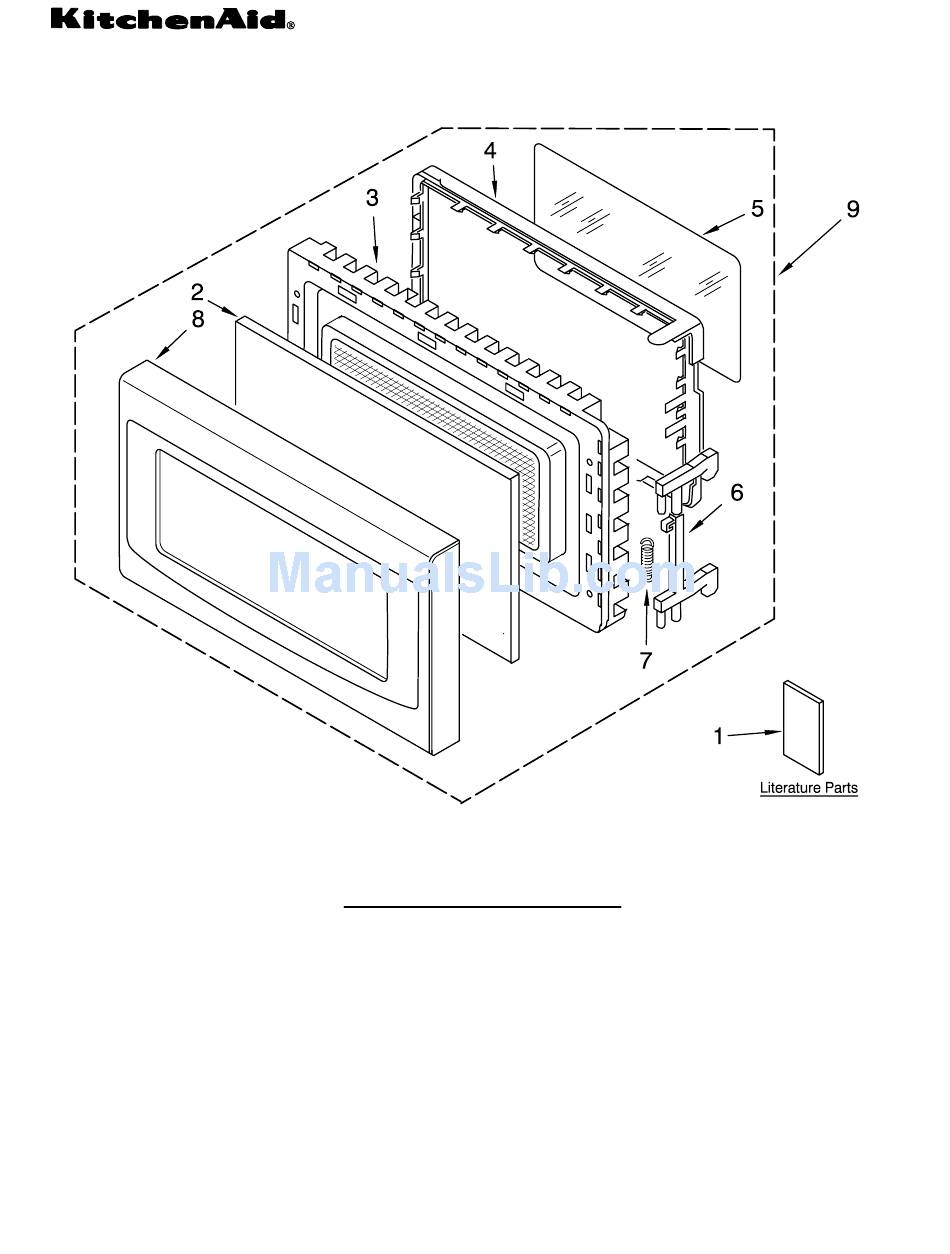

DOOR PARTS
For Models: KCMS2055SSS0
(Stainless)
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10114100 Guide, U & C
W10160564 Tech Sheet
W10114101 Cook Guide Label
2 W10160566 Front Screen
3 W10160543 Door Frame Asm
4
8205777 Choke Cover
5 W10160562 Tape, Seal
6
8184263 Latch
7
8183882 Spring, Latch
8 W10160561 Panel, Door
9 W10160557 Door Assembly
1
MICROWAVE OVEN
2.0 CUBIC FOOT
Part No. W10160568 Rev. A
Advertisement
Related Manuals for KitchenAid KCMS2055SSS0
Summary of Contents for KitchenAid KCMS2055SSS0
-
Page 1: Door Parts
DOOR PARTS MICROWAVE OVEN 2.0 CUBIC FOOT For Models: KCMS2055SSS0 (Stainless) Illus. Part DESCRIPTION Literature Parts W10114100 Guide, U & C W10160564 Tech Sheet W10114101 Cook Guide Label 2 W10160566 Front Screen 3 W10160543 Door Frame Asm 8205777 Choke Cover 5 W10160562 Tape, Seal 8184263 Latch 8183882 Spring, Latch... -
Page 2: Control Panel Parts
CONTROL PANEL PARTS For Models: KCMS2055SSS0 (Stainless) Illus. Part DESCRIPTION 1 W10160560 Button, Release 8184272 Spring, Button 3 W10160556 Membrane/Panel 4 W10160555 Microcomputer 8205451 Lever, Release 4358883 Screw W10160568... -
Page 3: Oven Cavity Parts
OVEN CAVITY PARTS For Models: KCMS2055SSS0 (Stainless) Illus. Part DESCRIPTION 8184278 Canopy 2 W10160554 Outer Case 3 W10160544 Tray, Glass 4 W10160542 Turntable Support 8184375 Motor, Synchronous 4358188 Screw 4358829 Screw 8171862 Screw 9 W10160547 Sensor, Humidity 8205457 Guide, Sensor 4358376 Screw 4358489 Screw W10160568... -
Page 4: Latch Board Parts
LATCH BOARD PARTS For Models: KCMS2055SSS0 (Stainless) Illus. Part DESCRIPTION Latch Board Assembly (Non−Serviceable) 8185271 Latch Board 8183561 Switch Micro Primary/Secondary 8183562 Switch, Micro Monitor 4358271 Screw W10160568... - Page 5 OVEN INTERIOR PARTS For Models: KCMS2055SSS0 (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 8205458 Propeller 8206281 Power Cord 8206270 Filter, Noise 8205456 Guide, Suction 9 W10160550 Thermostat 8205509 Insulator 8205462 Motor, Fan 8171810 Lamp, Baseless 4358190 Screw 8185272 H.V.
-
Page 6: Base Plate Parts
BASE PLATE PARTS For Models: KCMS2055SSS0 (Stainless) Illus. Part DESCRIPTION 1 W10160551 Base Plate (L) 2 W10160552 Base Plate (R) 8184385 Leg 4 W10160546 Transformer 4358192 Screw 4358489 Screw W10160568...
