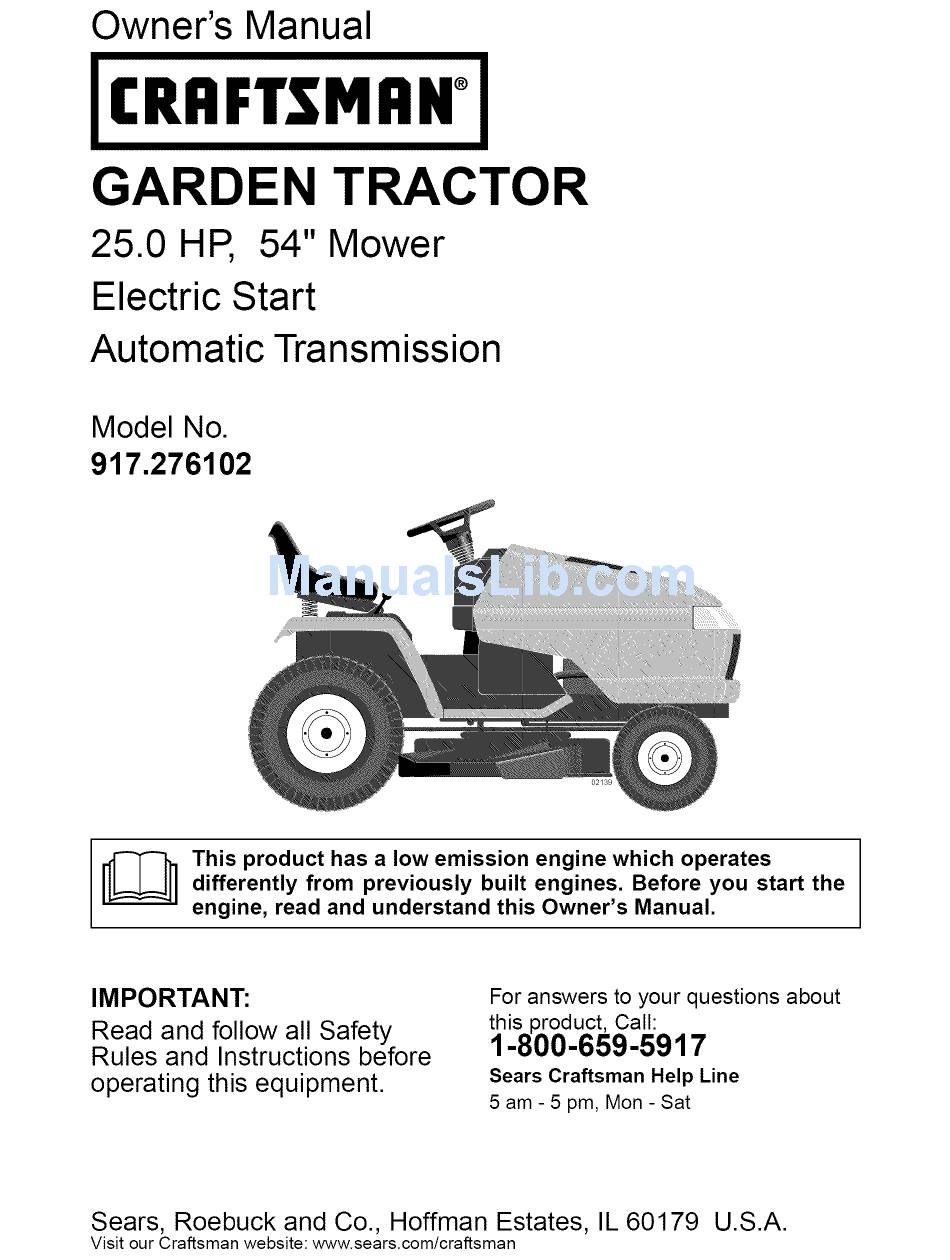

Owner's Manual
CRRFTSMIIN°
GARDEN TRACTOR
25.0 HP, 54" Mower
Electric Start
Automatic Transmission
Model No.
917.276102
i_
his product has a low emission
engine which operates
differently
from previously
built engines.
Before you start the
engine, read and understand
this Owner's Manual,
IMPORTANT:
Read and follow all Safety
Rules and Instructions
before
operating this equipment.
For answers
to your questions
about
th_ product, Call:
1 800 659 5917
Sears
Craftsman
Help Line
5 am-
5 pm, Mon-
Sat
Sears, Roebuck and Co., Hoffman Estates, IL 60179
U.S.A.
Visit our Craftsman website: www.sears.com/craftsman
