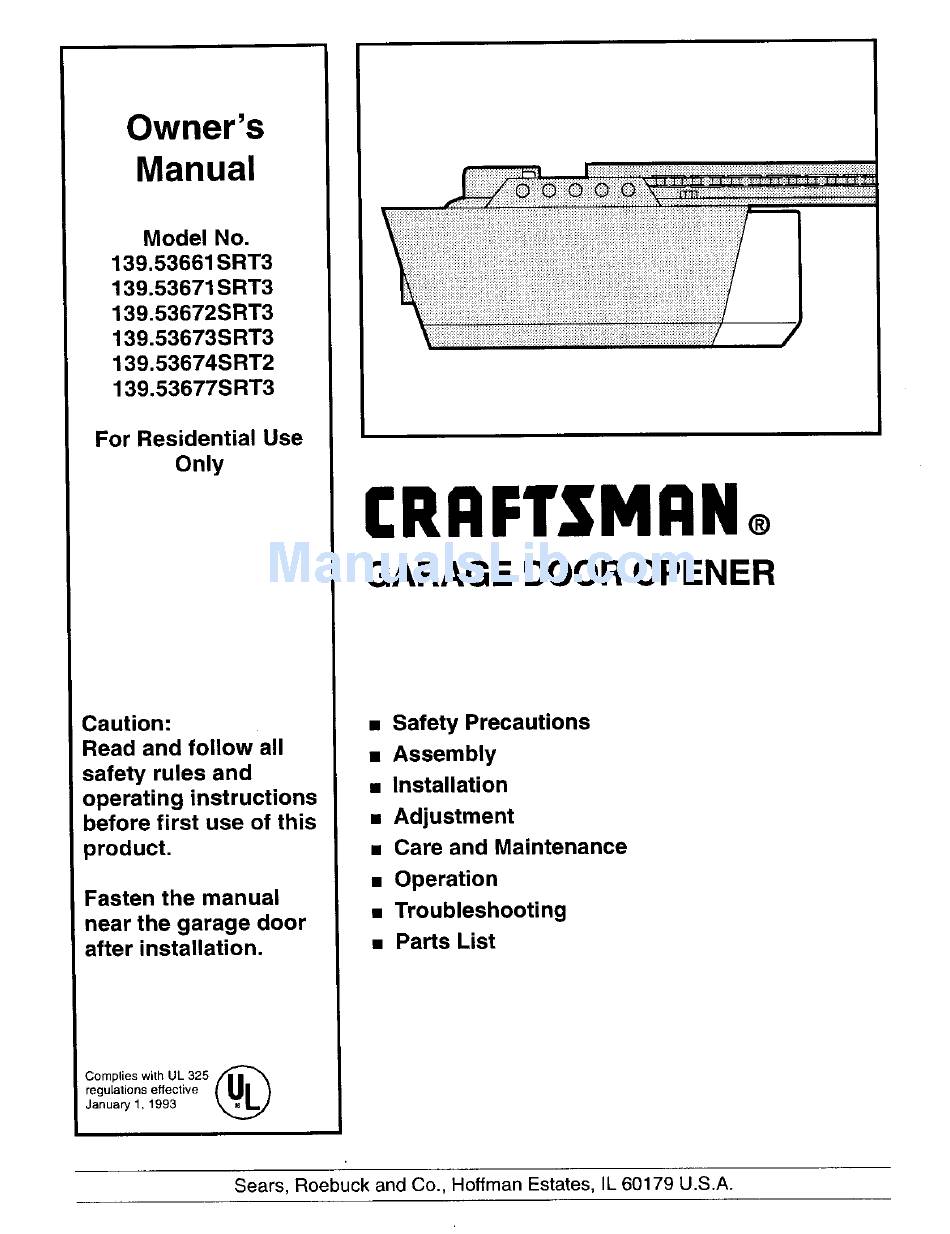

Owner's
Manual
Model No.
139.53661SRT3
139.53671SRT3
139.53672SRT3
139.53673SRT3
139.53674SRT2
139.53677SRT3
For Residential Use
Only
Caution:
Read and follow all
safety rules and
operating
instructions
before first use of this
product,
Fasten the manual
near the garage door
after installation.
Complies with UL 325
regulations effective
( U|
)
January 1, 1993
CRRFTSMRN®
GARAGE DOOR OPENER
• Safety Precautions
• Assembly
• Installation
• Adjustment
• Care and Maintenance
• Operation
• Troubleshooting
• Parts List
Sears, Roebuck
and Co., Hoffman Estates,
IL 60179 U.S.A.
