- Page 1 CABINET PARTS 36" BUILT IN REFRIGERATOR For Model: KSSS36MDX04 Part No. 4394447 9−96 Litho In U.S.A. (RCG)
-
Page 2: Cabinet Parts

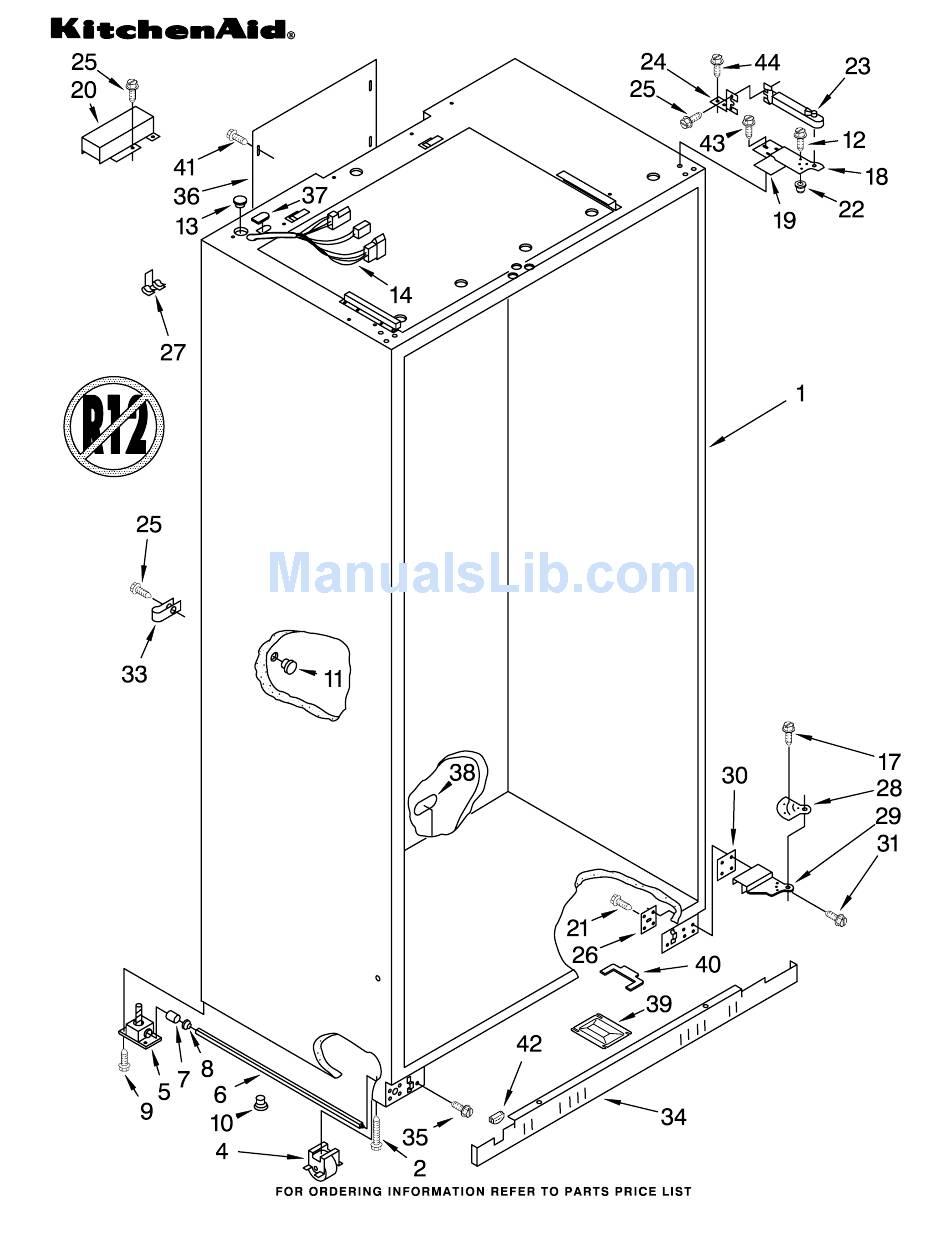

CABINET PARTS For Model: KSSS36MDX04 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Cabinet (Not A Hinge (Top) Hinge (Bottom) Serviceable Part) 2001976 Left Side 2001978 Left Side 1112019 Leveler, Front (2) 2001975 Right Side 2001977 Right Side 1112023 Roller, Front & 2000770 Shim, Hinge 1112942 Shim, Hinge (1) Rear (4) - Page 3 CABINET TRIM PARTS For Model: KSSS36MDX04 Illus. Part DESCRIPTION 2003643 Cabinet, Trim (2) 2003857 Screw 2001297 Screw 2003590 Cabinet, Trim (Bottom) 488649 Screw 2003645 Cabinet, Trim Top 4394447...
-
Page 4: Freezer Liner Parts
FREEZER LINER PARTS For Model: KSSS36MDX04 Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 1113649 Bracket, Light 1113650 Lens 1112613 Light, Socket 548049 Light, Bulb 538533 Support Clip, Icemaker (2) 2000193 Grommet, Screw (2) 488552 Screw 486194 Screw 1112591 Spacer, Control Panel (3) 842534 Clip, Air Duct (4) 1112260 Support,... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSSS36MDX04 4394447... - Page 6 REFRIGERATOR LINER PARTS For Model: KSSS36MDX04 Illus. Part DESCRIPTION LINER (Not A Serviceable Part) 1112591 Spacer, Control Panel (3) 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw 486194 Screw 1112257 Hole Plug 2003579 Meat Pan, Air Duct Cover 2000337 Meat Pan, Air Duct 2003299 Inlay, Control Meat Pan...
- Page 7 REFRIGERATOR CONTROL PANEL PARTS For Model: KSSS36MDX04 Illus. Part DESCRIPTION 1112640 Control Panel 2003301 Inlay, Control Panel 2004005 Circuit Board 2003842 Control Knob 2003841 Retainer, Knob 1118894 Switch, Rocker Arm 1113133 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 1113773 Shield, Control Panel 1112613 Socket, Light (2)
- Page 8 FREEZER CONTROL PANEL PARTS For Model: KSSS36MDX04 Illus. Part DESCRIPTION 1113625 Control Panel 2003307 Inlay, Control Panel 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 1115373 Switch, Rocker Arm 1113132 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 1113767 Shield, Control Panel 1112613 Socket, Light...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSSS36MDX04 4394447... - Page 10 REFRIGERATOR SHELF PARTS For Model: KSSS36MDX04 Illus. Part DESCRIPTION 2174402 Frame, Shelf 2003375 Glass, Shelf 1113546 Reflector, Shelf 1113790 Gasket, Glass (2) 2179375 Rack, Wine 2169933 Egg Bin 2003325 Frame, Assembly Meat Pan 2164373 Egg Carrier 1113893 Cover, Crisper 2003378 Glass, Crisper 2000742 Meat Pan, Connector 2169935 Cover...
-
Page 11: Freezer Shelf Parts
FREEZER SHELF PARTS For Model: KSSS36MDX04 Illus. Part DESCRIPTION 2003142 Solid Shelf 2003133 Front, Ice Compartment 1113564 Shelf, Fixed (2) 1113636 Shelf, Fixed−Deep 2001551 Basket (2) 2002725 Ice Container 2003043 Front Cover Slide, Container 2002720 Right Side 2002721 Left Side 2003046 Hole Plug, Front 2003047 Hole Plug, Rear 2003112 Trim, Basket... - Page 12 TOP GRILLE AND UNIT COVER PARTS For Model: KSSS36MDX04 Illus. Part DESCRIPTION 2003713 Top Grille Assembly 2003267 Cover, Unit 486194 Screw 2002484 Grille, Bracket 2001415 Screw 2003722 Decortive Panel Assembly 2003480 Guard, Compressor Wiring 2003481 Guard, Water Valve Wiring 4394447...
-
Page 13: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSSS36MDX04 4394447... - Page 14 REFRIGERATOR DOOR PARTS For Model: KSSS36MDX04 Illus. Part DESCRIPTION 2003870 Refrigerator Door Panel (Includes Insulation) 939101 Screw Anchor (8) 2001983 Hinge Assembly, 489282 Screw 2003986 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112539 Gasket Retainer, Top & Bottom 2000878 Door Gasket, Magnetic 2003679 Handle, Door 2001230 Washer...
-
Page 15: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSSS36MDX04 4394447... - Page 16 FREEZER DOOR PARTS For Model: KSSS36MDX04 Illus. Part DESCRIPTION 2003876 Freezer Door Panel (Includes Insulation) 2003985 Hinge, Bottom 489282 Screw 2001984 Hinge, Top 1112533 Gasket Retainer, Side (2) 1112538 Gasket Retainer, Top & Bottom 2000877 Door Gasket, Magnetic 486194 Screw (34) 2003681 Handle, Door 2001230 Washer 2003982 Door, Spacer...
- Page 17 UPPER UNIT PARTS For Model: KSSS36MDX04 4394447...
- Page 18 UPPER UNIT PARTS For Model: KSSS36MDX04 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2003398 Assembly, Unit 1113019 Clamp (4) Base 487522 Screw Following Parts Not Illustrated 2163787 Clip, Compressor 851095 Wire Tie (2) and Optional Parts Not Included Mounting (4) 2164492 Drier 2183418 Compressor...
- Page 19 LOWER UNIT AND TUBE PARTS For Model: KSSS36MDX04 4394447...
- Page 20 LOWER UNIT AND TUBE PARTS For Model: KSSS36MDX04 Illus. Part DESCRIPTION 2000528 Defrost Bi−Metal 1113043 Clamp, Bi−Metal 486194 Screw 2003271 Sleeve 2002171 Sleeve 2002999 Condenser Inlet Tube 2003484 Sleeve 2003015 Tube, Connect (Drier) 2002992 Heater, Drain Pan 1113062 Hanger, Heater 1113105 Bracket, Heater 487534 Screw 2002995 Tube, Discharge...
- Page 21 AIR FLOW AND RESERVOIR PARTS For Model: KSSS36MDX04 4394447...
- Page 22 AIR FLOW AND RESERVOIR PARTS For Model: KSSS36MDX04 Illus. Part DESCRIPTION 2003200 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw 2003924 Deflector, Air Duct 488500 Screw, Ground 488366 Clamp, Tube 489348 Clamp, Nylon 2001145 Channel, Wiring 1112871 Fastner...
-
Page 23: Icemaker Parts
ICEMAKER PARTS For Model: KSSS36MDX04 4394447... - Page 24 ICEMAKER PARTS For Model: KSSS36MDX04 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2154472 Connector 2174155 Cover 489322 Screw 841707 Insert, Tube 628228 Mold & Heater 489276 Screw 628379 Clip, Fuse (Also Order 2171593 Shut Off Arm 2003814 Water Inlet 542638 Silicone 2171952 Bracket Tube Assembly...
