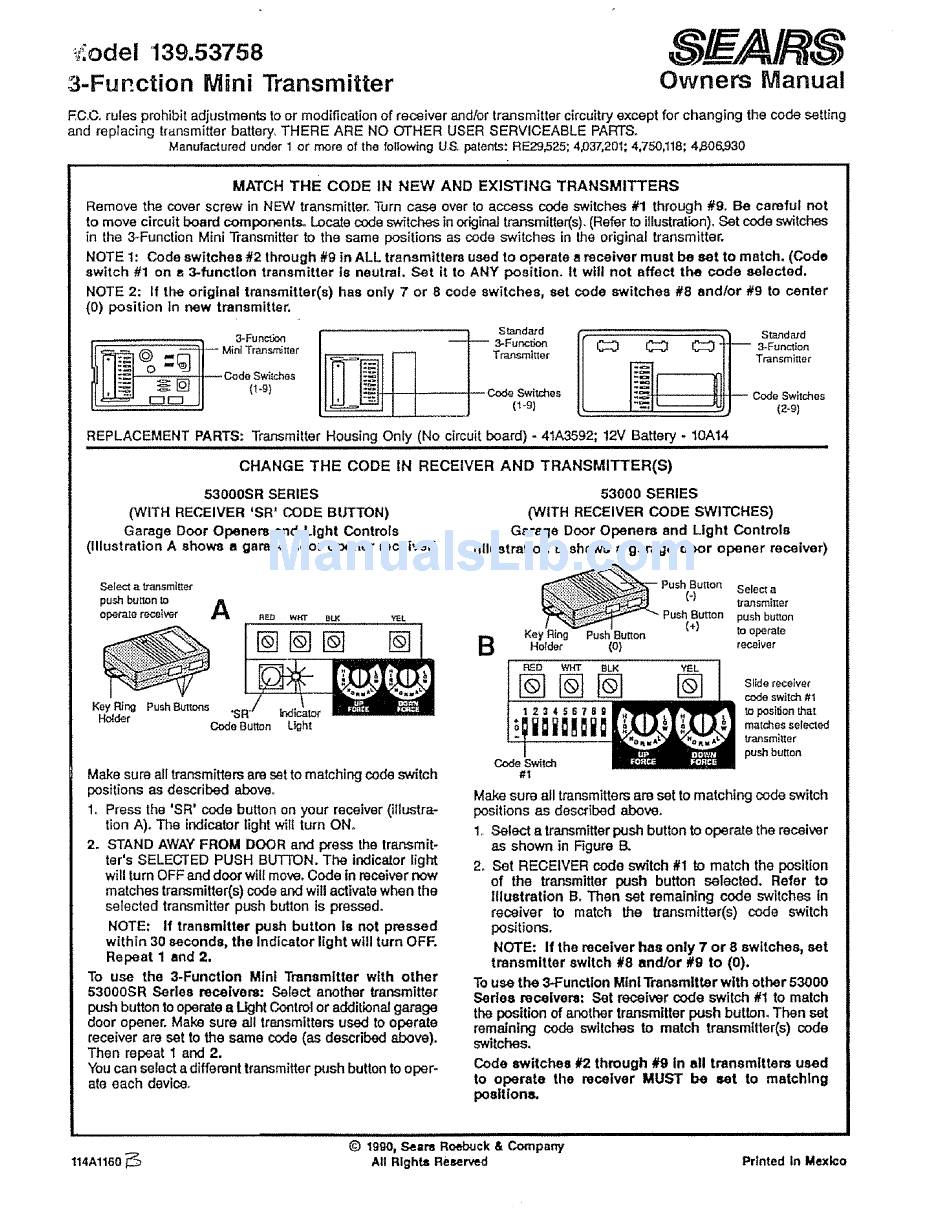

,.odei
139.53758
3-Function
Mini Transmitter
Owners
Manual
EC;,.O.rules prohibit adjustments
to or modification
of receiver and/or transmitter
circuitry except for changing
the code setting
and replacing
transmitter battery. THERE ARE NO OTHER USER SERVICEABLE
PARTS.
Manufactured under 1 or more of the following US. patents: RE29,525; 4,037,201;4,750,118; 4.806,930
i,ll
ii
,i
MATCH
THE CODE
IN NEW AND EXISTING
TRANSMITTERS
Remove the cover screw in NEW transmitter.
Turn case over to access code switches #1 through #9. Be careful not
to move circuit board components.
Locate code switches in c_iginal transmitter(s), (Refer to illustration)_ Set code switches
in the 3_Function Mini Transmitter
to the same positions
as code switches in the original transmitter.
NOTE 1: Code switches #2 through
#g in ALL transmitters
used to operate a receiver
must be sot to match. (Coda
switch
#1 on 8 3-function
transmitter
Is neutral.
Set it to ANY position.
It will not affect
the code selected.
NOTE 2: If the original
transmltter(s)
has only 7 or 8 code switches,
set code switches #8 and!or #9 to center
(0) position
tn new transmitter.
o-_
JJ
"0'
"1
St_,ndard
[I
3-Function
0:3
-.,_
Standard
i
I" 1
€2-9)
REPLACEMENT
PARTS: Transmitter Housing Only (No circuit board) - 4tA3592; 12V Battery - 10A14
CHANGE THE CODE IN RECEIVER AND TRANSMITTER(S)
53000SR SERIES
0NITH RECEIVER 'SR' CODE BUTTON)
Garage Door Openers
and Light
Controls
(illustration
A shows a garage door opener
receiver)
Selec_ a traz_rni_ef
push buttonIo
X
operatereceiver
_
t_
wffr
°u_
_L
Key Ring
Push _ltons
Holder
"S_'
Indicator
....
CodeButton Light
Make sure all transmitters are set to matching code switch
positions as described above.
1o Press the 'SR' code button on your receiver (illt_tra-
tion A). The indicator light wilt turn ONe
2. STAND AWAY FROM DOOR and press the transmit-
ter's SELECTED PUSH BUTTON. The indicator light
will turn OFF and door will move.Code in receiver now
matches transmitter(s) code and will activate when the
selected transmitter push button is pressed,
NOTE: I! transmitter push button ts not pressed
within 30 seconds, the Indicator light will turn OFF.
Repeat 1 and 2,
To use the 3-Function
Mtnl Transmitter with other
53000SR Serlse receivers: Select another transmitter
push button to operate e Light Control or additional garage
door opener. Make sure all transmitters used to operate
receiver are set to the same cote (as described above).
Then repeal I and 2.
You can select a different transmitter push button to oper-
ate each device.
53000 SERIES
(WITH RECEIVER CODE SWITCHES)
Garage Door Openers
and Light
Controls
(illustration
B shows a garage door opener receiver)
Push(_ulton
Select a
transmitter
_ PushButton push button
f
_
J
(+)
Key Ring
Push Button
to operate
g
Holder
(O)
receiver
I
F_D
WHT
BLK
Y_:L
code switch#1
1 2 3 4 _;6 7 8 ii
to positJort
the!
!ltltlMltl
push bur_on
CodeSwitch
#1
Make sure all transmitters are set to matching code switch
positionsas described above.
1, Select a transmitter push buttonto operatethe receiver
as shown in Figure 13.
2, Set RECEIVER code switch #1 to match the position
of the transmitter push button selected. Refer to
illustration
BeThen set remaining code switches in
receiver to match the transmitter(s) code switch
positions.
NOTE: If the receiver has only 7 or 8 switches, sot
transmitter switch #8 and/or #g to (0).
To use the 3-FuncttonMlnl Transmitterwith other 53000
Series receivers: Set receiver code switch #1 to match
the positionof anothertransmitter push button. Then set
remaining code switches to match transmitter(s) code
switches,
Code switches #2 through #9 in all transmitters used
to operate the receiver MUST be set to matching
positions.
IJIIL,I , ll,_,Jll,llJ_Ui
© 19g0, Sears Roebuck & Company
114Al160 _._
All RlghfJi Reserved
Printed In Mexico
