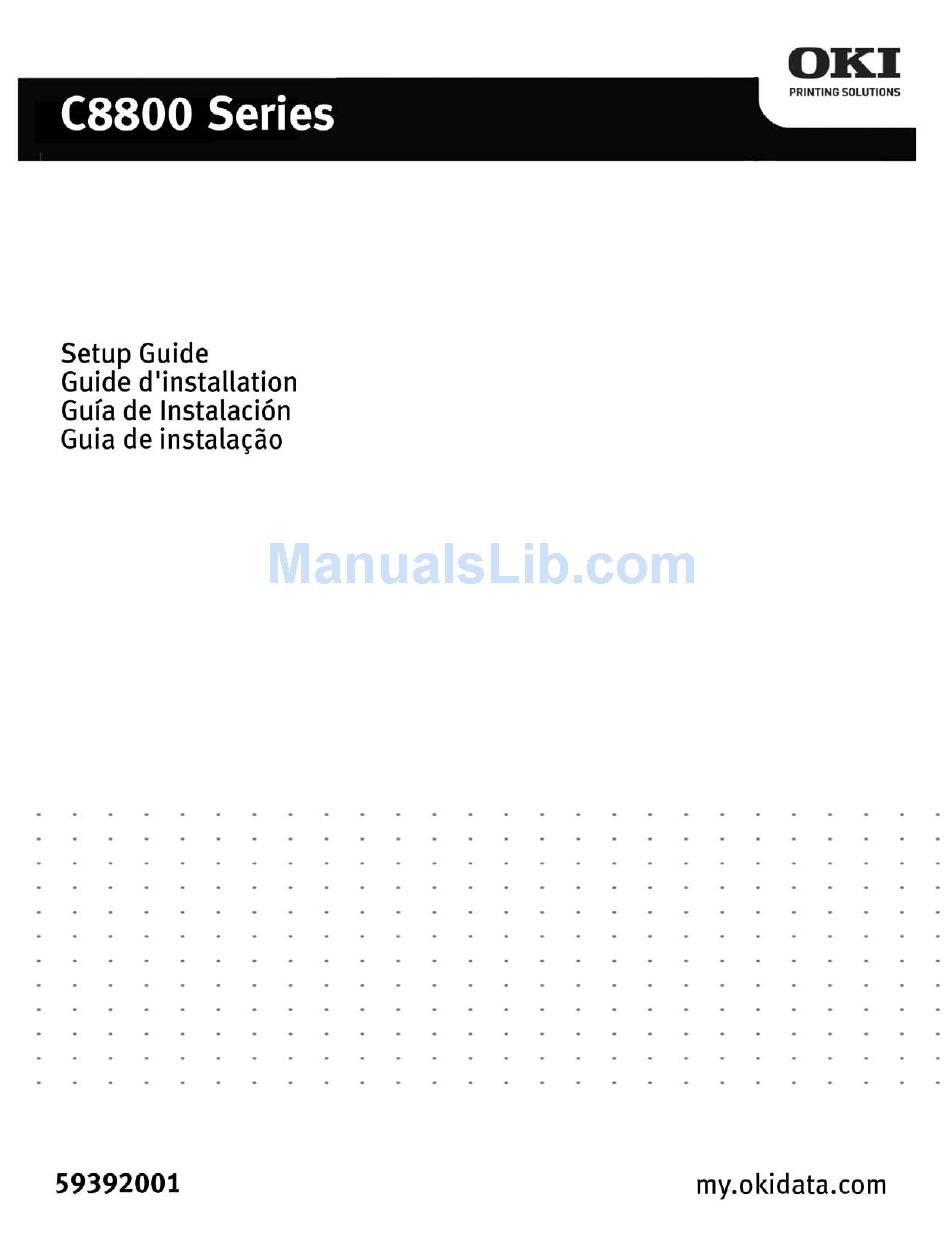

C8800 setup guide (english, fran栩s, espa?ol, portugu鱩
Hide thumbs Also See for C8800dn:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Configuration Manual, User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C8800dn and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Oki C8800dn

Summary of Contents for Oki C8800dn

  • Page 2: Table Of Contents

    Your printer setup will take about 15-20 minutes. Complete these steps: 1. Unpack - page 3 2. Inventory - page 4 3. Setup the Printer - page 5 ® 4. Windows Installation - page 21 ® 5. Macintosh Installation - page 28 La configuration de l'imprimante nécessite de 15 à...

  • Page 3: Unpack

    Unpack English Remove the packing pieces and the protective bag. Note: Illustrations and components are representative only. Your unit may differ slightly from those pictured in this document. Déballage Français Retirez les matériaux d'emballage et le sac de protection. Remarque: Les illustrations et composants sont à des fins d’expllication uniquement.

  • Page 4: Inventory

    (C8800dn) (C8800dtn) English Inventory Liste des composants Français Inventario Español Português inventário...

  • Page 5: Setup The Printer

    English Setup the printer Lift the printer and place it on your selected location (space requirements are approximate). Configurer l’imprimante Français Soulevez l'imprimante et placez-la à l'endroit désiré (les espace requis sont approximatives). Configurar la impresora Español Levante la impresora y colóquela en la ubicación seleccionada (espacio necesario aproximadas).
  • Page 6 English Remove the packing materials and shipping tape. Français Retirez les matériaux d'emballage le ruban d'expédition. Retire el material y cinta de embalaje. Español Português Retire os materiais de embalagem e as fitas adesivas para transporte.
  • Page 7 English Press the release button (a) and lift the top cover (b). Français Appuyez sur le bouton de déverrouillage (a) et ouvrez le capot supérieur (b). Presione el botón de liberación (a) y abra la tapa superior (b). Español Português Pressione o botão de liberação (a) da tampa superior e levante-a (b).
  • Page 8 English Prepare the Image Drums Remove the black image drum (nearest the control panel). CAUTION! Keep unit upright to avoid spillage. Do not let the drum sit in room light for more than 5 minutes. Lower the printer cover to protect the remaining drums from light.
  • Page 9 English 1. Remove the tabs and sheets (a+b). 2. Remove the orange seal (c). Caution! Do not touch the image drum’s shiny green surface. Do not expose the drum to direct sunlight. Français 1. Retirez les rubans et les feuilles (a+b). 2.
  • Page 10 English 1. Lift the cover and replace the black drum. 2. Repeat these steps for each of the remaining drums. Français 1. Ouvrez le capot et remettez en place l'unité tambour d'image. 2. Répétez le processus pour chaque les tambours d’impression. 1.
  • Page 11 English Prepare the Toner Units 1. Shake toner cartridge from side to side to distribute toner (a). 2. Remove sealing tape (b). Préparation des unités toner Français 1. Secourez la cartouche de toner d’un côté à l’autre afin de répartir le toner (a). 2.
  • Page 12 English 1. Place opening on left side of toner cartridge on image drum peg. 2. Slide right edge of toner cartridge into image drum. Français 1. Installez le côté de la cartouche de toner dans l’ergot de positionnement du tam- bour de’impression.
  • Page 13 English 1. Push the lock lever toward the back of the printer as far as it will go. 2. Repeat these steps for each of the remaining toner units. Important! If TONER SENSOR ERROR appears when you turn on the printer, the lever for the toner cartridge color indicated is not pushed all the way back.
  • Page 14 English 1. Close the top cover (a). ® 2. Remove the backing from the Velcro strip on the back of the Handy Reference Guide and mount it on the side of the printer (b). Français 1. Fermez le capot supérieur (a). 2.
  • Page 15 English Fan the paper to be loaded at the edges (1) and in the middle (2) to ensure that all sheets are properly separated, then tap the edges of the stack on a flat surface to make it flush again (3). Français Déployez en éventail le papier à...
  • Page 16 English 1. Load paper print side down, long edge feed (1) up to the mark (a). Letterhead: print side down, top edge towards the right side of the printer. 2. Make sure the rear stopper and paper guides (2) are snug against the paper. For A6 paper, remove and re-install in the A6 position.
  • Page 17 Note: Install printer software BEFORE connecting the USB (a) cable. English 1. Connect the Ethernet cable between the printer (b) and the Ethernet hub or router. 2. Connect the parallel cable if used (c). Remarque: Installiez le logiciel de l’imprimante AVANT de bracher le câble USB (a). Français 1.

  • Page 18: Mise Sous Tension

    électrique murale mise à la terre. 2. Mettez sous tension l'imprimante (b). Mise en garde! Ne branche pas ce produit dans un systéme d’alimentation sans coupure. Pour plus d’information, contactez Oki Data au 1 800 OKI-DATA ou rendez-nous viste à www.okiprintingsolutions.com . Suministro de energía Español...
  • Page 19 On Line Ready Back Enter Attention Menu Cancel English Print the Demo Page 1. Press + one or more times, until you see INFORMATION MENU on the first line of the display. Press ENTER. 2. Press - or + one or more times, until you see DEMO1 on the first line of the display. Press ENTER.
  • Page 20 Windows - Network Setup Print the Configuration Sheets. 1. Turn the Printer ON and wait for the print server status light (a) to stop blinking. 2. Press the TEST button (b) on the print server to print the network information configuration sheets. Keep these sheets handy: they contain information you need to set up the printer on your network.

  • Page 21: Windows ® Installation

    Windows - Install Drivers and Utilities 1. Turn the printer OFF. 2. Insert the CD in the CD-ROM drive. The CD will autorun. 3. Select your language. 4. Accept the license agreement. 5. Click Install Drivers. 6. Select local or network printer. 7.
  • Page 22 Windows - Test the Printer Driver Installation English 1. To make sure the printer driver is correctly installed, print a page from any program. 2. Reinstall the driver if the installation failed. Windows - Test de l’installation du ligiciel Français 1.
  • Page 23 Windows - Network Setup Using a Web Browser (Optional) English Use your web browser to configure print server and printer menu settings on an embedded web page. 1. Activate your web browser (Microsoft Explorer ®/™ , Mozilla ® Firefox ® , Netscape ™...
  • Page 24 Windows - Utilities and Downloads (optional) English Note: You must be connected to the internet to download utilities. 1. Select Optional Utilities or Internet Downloads from the CD installer menu bar. 2. Click on the utilities and downloads you want to install and follow the instructions. Windows - Utilitaires et les téléchargements ( Français Opcionnelle...
  • Page 25 Windows - Install/View Documentation Note: To open the on-line manuals, you must have Adobe ® ® Acrobat Reader 3.0 or higher installed. 1. Select the Driver Setup tab from the CD installer menu bar. 2. Click Install User’s Guide. 3. Follow the on-screen instructions to complete the installation. →...
  • Page 26 Windows - Change the Display Language English Use this utility to select an alternative language for the printer display panel. 1. Select the Optional Utilities tab from the CD installer menu bar. 2. Click Change the Printer Display Language. 3. Follow the on-screen instructions. Windows - Changer la langue d'affichage Français Utilisez cet utilitaire pour choisir une langue différente pour l'affichage de...
  • Page 27 Windows - Activate Optional Accessories English Note: If your printer has an optional second paper tray, duplex unit, hard disk drive, or additional memory installed, you must open the printer driver and activate the device. → → 1. Click Start Settings Printers (and Faxes) on the Windows taskbar.

  • Page 28: Macintosh ® Installation

    Macintosh - Connect USB cable English Note: Printer operation is not assured if another USB compatible device is connected concurrently with it. 1. Turn the printer OFF. 2. Connect the USB cable to the USB port on the computer, then to the USB port (a) on the printer. Macintosh - Connexion le câble USB Français Remarque: Le fonctionnement de l’imprimante n’est pas garanti si un autre...

  • Page 29: Macintosh Instalação

    1. Ligue a impressora. Em seguida, ligue o computador. 2. Insira o CD do Driver na unidade de CD-ROM. 3. Clique duas vezes no icone do CD da OKI exibido no área de trabalho. 4. Clique duas vezes no ícone do MAC. (OSX ou OX9).
  • Page 30 2. Click More Printers. 3. Select OKI USB, OKI TCP/IP, or Rendezvous/Bonjour from the drop-down menu. Note: If you are using USB, select OKI USB and disregard step 4. 4. Enter the printer’s IP address. 5. Select the printer model. Click Add.
  • Page 31 Macintosh - Install the Documentation English Note: Adobe ® ® Acrobat Reader 3.0 or higher is required to view the manuals. 1. Insert the CD into your CD-ROM drive. 2. Double-click the CD icon which appears on the desktop. 3. Scroll to the C8800n_UG_ae.pdf file in the root directory. - To load it: drag the pdf file to the desktop.

  • Page 32: Service And Support

    • Ligue para 0800-11-55-77. OKI, OkiLAN ® Oki Electric Industry Company, Ltd. Microsoft, Windows, Internet Explorer ®/™ Microsoft Corporation in the United States and other countries. Netscape, Netscape Navigator U.S. ™, Netscape Communications Corporation. Novell, NetWare ® Novell Corporation in the U.S. and other countries.
