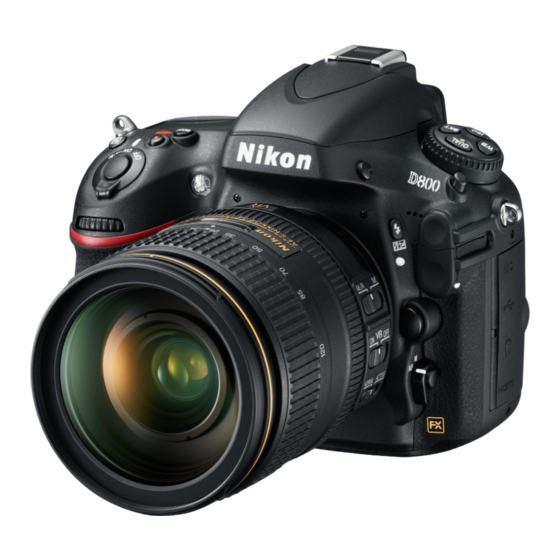

Nikon D800E User Manual

Hide thumbs Also See for D800E:

Advertisement

Quick Links

Download this manual See also: Technical Manual, User Manual
Nikon
DIGITAL
CAMERA
User's Manual

Advertisement

loading

Related Manuals for Nikon D800E

Summary of Contents for Nikon D800E

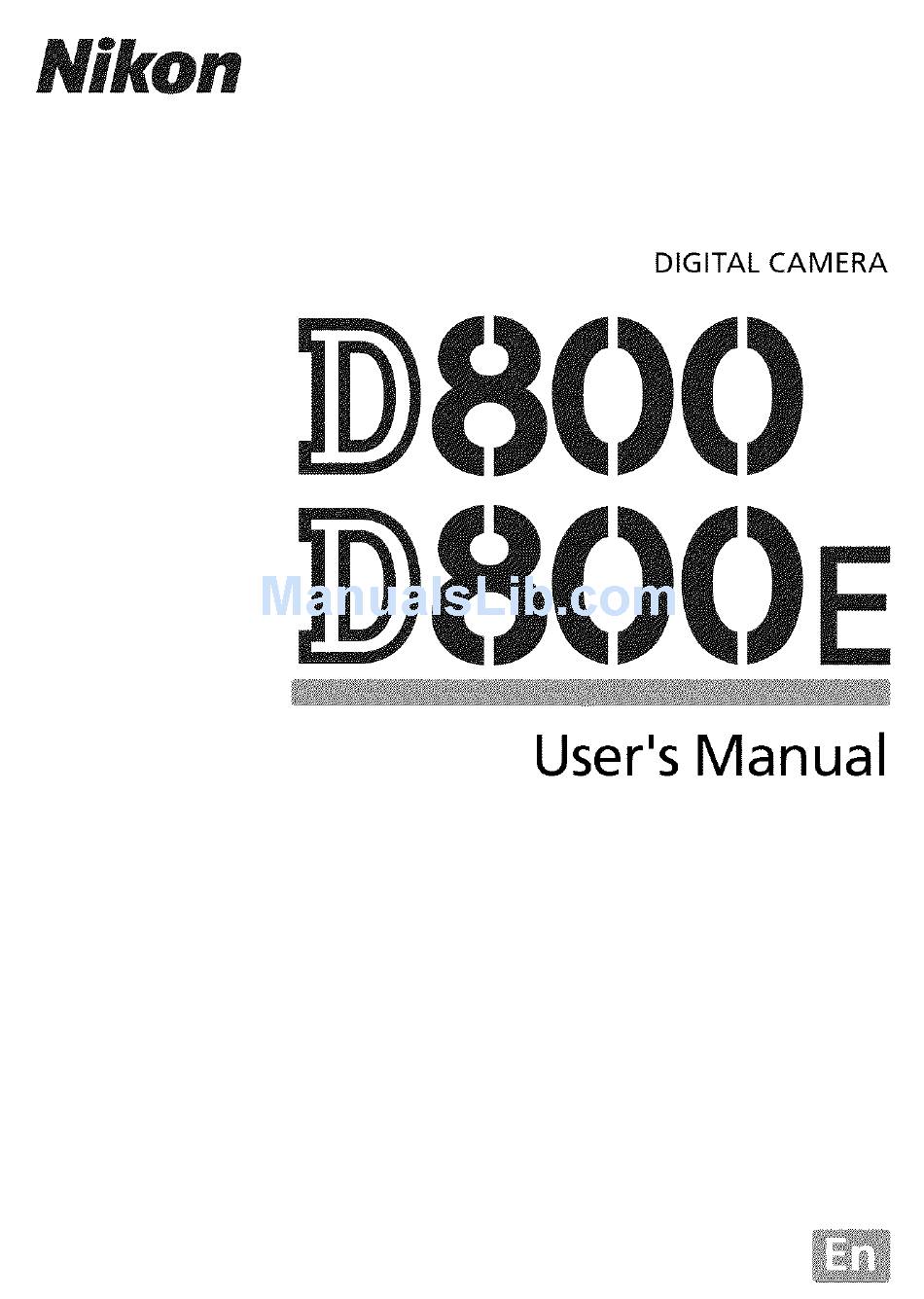

  • Page 1 Nikon DIGITAL CAMERA User's Manual...
  • Page 2 AF-Assist Illumination AF-assist illumination is available with lenses with focal lengths of 24- 200 mm. It can not however be used to assist the focus operation with the following lenses: • AF-S VR Nikkor 200mm f/2G IF-ED • AF-S NIKKOR 200-400mm f/4G ED •...
  • Page 3 Calculating Angle of View The D800 can be used with Nikon lenses for 3Smm (135) format cameras. If Auto DX crop is on (_ 79) and a 3Smm format lens is attached, angle of view will be the same as a frame of 3Smm film (35.9 x 24.0 mm);...
  • Page 4 Calculating Angle of View (Continued) The DX (24x 16) angle of view is about 1.5 times smaller than the 35mm format angle of view, while the 1.2x (30x20) angle of view is about times smaller and the 5:4 (30x24) angle of view is about 1.1 times smaller.
  • Page 5 The camera supports the Nikon Creative Lighting System (CLS) and can be used with CLS-compatible flash units. Optional flash units can be attached directly to the camera accessory shoe as described below. The accessory shoe is equipped with a safety lock for flash units with a locking pin.
  • Page 6 The Nikon Creative Lighting System (CLS) Nikon's advanced Creative Lighting System (CLS) offers improved communication between the camera and compatible flash units for improved flash photography. II CLS-CompatibleFlashUnits The camera can be used with the following CLS-compatible flash units: • TheSB-910,SB-900,SB-800,SB-700,SB-600,SB-400,andSB-R200:...
  • Page 7 The following features are available with CLS-compatible flash units: ' _,,, NsB-91ol i_B:_3_ °_!IT '°7°lSi3:93oT-:7=_[°=:-_ UsB-9oo sB-9oo U LsB-9°°l sBa°° i-TTL flashf0rdigitalSLR _"_ _"' ....Autoaperture 1,15 Non-TTL auto manual Distance-priority Manual Repeating flash Auto FPHigh-Speed Sync 7_ FVlock AF-assistfor multi-area FlashColor Information Communication Rear-curtainsyncv__...
  • Page 8 Other Flash Units The following flash units can be used in non-TTL auto and manual modes. I Flash mode is automatically set to TTL and shutter-release is disabled. Set flash unit to A (non-TTL auto flash). 2 Autofocus is available with AF-SVR Micro-Nikkor 105mm f/2.8G IF-ED and AF-S Micro NIKKOR60mm f/2.8G EDlenses only.
  • Page 9 _I_ Notes on Optional Flash Units Refer to the flash unit manual for detailed instructions. If the unit supports CLS, refer to the section on CLS-compatible digital cameras. The D800 is not included in the "digital SLR" category in the SB-8ODX, SB-28DX, and SB-5ODX manuals.
  • Page 10 The SB-910, SB-900, SB-800, SB-700, SB-600, and SB-400 provide red-eye reduction, while the SB-910, SB-900, SB-800, SB-700, SB-600, and SU-800 3rovide AF-assist illumination with the following restrictions: • $B-910and $B-900:AF-assist illumination is available with 17- 135 mm AF lenses, however, 17-19mm 20-105mm 106-135mm...
  • Page 11 Before using a Nikon flash unit not listed in this section, contact a Nikon-authorized service representative for more information.
  • Page 12 • Rechargeable Li-ionBattery EH-EL15 (L:_ 19, 21): Additional EN-EL15 batteries are available from local retailers and Nikon service representatives. These batteries can be recharged using an MH-25 battery charger. • BatteryChargerMH-25 (L_ 19): The MH-25 can be used to recharge EN-EL15 batteries.
  • Page 13 RubberEyecup DK-19:The DK-19 makes the image in the viewfinder easier to see, preventing eye fatigue. iiii iii_ Diopter-Adjustment V iewfinderLens DK-17C: T o accommodate i iii iiiii individual differences in vision, viewfinder lenses are available with diopters of-3, -2, O,+1, and +2 m 1. Use ii ii ii_ diopter adjustment...
  • Page 14 Software Note: Usethe latest versions of Nikon software; see the websites listed on page xx for the latest information on supported perating systems. At default settings, Nikon Message Center 2 will periodically check for updates to Nikon software and...
  • Page 15 for remote control and automatic photography. terminal is provided with a cap, which protects the contacts when the terminal is not in use. The following accessories can be used (all lengths are approximate): • RemoteCordMC-22: R emote shutter release with blue, yellow, and black terminals for connection to a remote shutter-...
  • Page 16 Attaching a Power Connector and AC Adapter Turn the camera off before attaching an optional power connector and AC adapter. Ready the camera. Open the battery-chamber ((1_) and power connector (_2_)covers. Insert the EP-5B power connector. Be sure to insert the connector in the orientation shown, using the connector...
  • Page 17 Connect the AC adapter. Connect the AC adapter power cable to the AC socket on AC adapter (_3_) and the EP-SB power cable to the DC socket (_4_). When the camera is powered by the AC adapter and power connector, the battery level display in the monitor turns off.
  • Page 18 Storaqe When the camera will not be used for an extended period, remove the battery and store it in a cool, dry area with the terminal cover in place. To prevent mold or mildew, store the camera in a dry, well- ventilated area.
  • Page 19 The Low-Pass Filter The image sensor that acts as the camera's picture element is fitted with a low-pass filter to prevent moire. If you suspect that dirt or dust on the filter is appearing in photographs, you can clean the filter using the Clean image sensor option in the setup menu.
  • Page 20 Select Clean now. Highlight Clean now and press _. The camera will check the image sensor and then begin cleaning. Q button This process takes about ten seconds; during this time, buS-_ is displayed the control panel and other operations can not be performed.
  • Page 21 H "Clean at Startup/$hutdown" Choose from the following options: Description The image sensor is automatically cleaned each time fON Clean at stamp the camera is turned Cleanat The image sensor is automatically cleaned during _OFF shutdown shutdown each time the camera is turned off. _oo_ Cleanatstartup The image sensor is cleaned automatically at startup &...
  • Page 22 Note, however, that the filter is extremely delicate and easily damaged. Nikon recommends that the filter be cleaned only by Nikon-authorized service personnel. Charge the battery or connect an AC adapter. A reliable power source is required when inspecting cleaning the low-pass filter.
  • Page 23 Select Lock mirror up for cleaning. Turn the camera on and press the MENU button to display the menus. MENU b utton Highlight Lock mirror up for cleaning in the setup menu and press I_ (note that this option is not available at battery levels of _ or below).
  • Page 24 Remove any dust and lint from the filter with a blower. Do not use a blower-brush, as the bristles could damage the filter. Dirt that can not be removed with a blower can only be removed by Nikon-authorized service personnel. Under no circumstances should you touch or wipe the filter.
  • Page 25 End cleaning or inspection immediately. [I_ Foreign Matter on the Low-Pass Filter Nikon takes every possible precaution to prevent foreign matter from coming into contact with the low-pass filter during production shipping.
  • Page 26 Donot drop:The product may malfunction if subjected to strong shocks or vibration. Keepdry: This product is not waterproof, and may malfunction if immersed in water or exposed to high levels of humidity. Rusting of the internal mechanism can cause irreparable damage.
  • Page 27 Cleaning:When cleaning the camera body, use a blower to gently remove dust and lint, then wipe gently with a soft, dry cloth. After using the camera at the beach or seaside, wipe off any sand or salt using a cloth lightly dampened in pure water and then dry the camera thoroughly.
  • Page 28 Turnthe productoff beforeremovingor disconnecting the powersource:Do not unplug the product or remove the battery while the product is on or while images are being recorded or deleted. Forcibly cutting power in these circumstances could result in loss of data or in damage to product memory or internal circuitry.
  • Page 29 • Turning the camera on or off repeatedly when the battery is fully discharged will shorten battery life. Batteries that have been fully discharged must be charged before use. • The internal temperature of the battery may rise while the battery is in use.
  • Page 30 The default s ettings fortheoptions inthecamera m enus a relisted below. F or i nformation ontwo-button reset, seepage 193. II PlaybackMenuDefaults Option Default °'_'°'=°'=°'=°'=°'=°'=°'=°'=_ Playback folder (_ 260) ND800 Image review (_ 265) After delete (_ 266) Show next Rotate tall (_ 266) Slide show (_ 267) Still images and movies II ShootingMenuDefaults 1...
  • Page 31 Option Default Set Picture Control (_ 163) Standard Color space (_ 274) sRGB Active D-Lighting (_ 174) HDR (high dynamic range) (_ 176) Normal Vignette control (_ 275) Auto distortion control (_ 276) Long exposure NR (_ 277) Normal High ISO NR (_ 277) ISO sensitivity settings (_ 109)
  • Page 32 II CustomSettingsMenuDefaults .x. Option °-_De_uff-T-' T T T T T' Release AF-C priority selection (_ 281) Focus AF-S priority selection (_ 282) Focus tracking with lock-on (_ 283) 3 (Normal) AF activation (_ 283) Shutter/AF-ON Auto AF point illumination (_ 284) Focus point wrap-around (_ 284) No wrap...
  • Page 33 Option Default Beep (_ 292) Volume Pitch High d2 CL mode shooting speed (_ 293) 2 fps d3 Max. continuous release (_ 293) d4 Exposure delay mode (_ 293) d5 File number sequence (_ 294) d6 Viewfinder grid display (_ 295) Show frame count d7 ISO display and adjustment (_ 295)
  • Page 34 Default Assign preview button (_ 315) Preview Preview button press Preview + command dials None f6 Assign AE-L/AF-L button (_ 315) AE/AF lock None f7 Shutter spd & aperture lock (_ 316) lock __]Aperture lock Auto bracketing Assign BKT button (_ 316) Customize command...
  • Page 35 II Setup Menu Defaults Option Default Z"Z"Z"Z"Z"Z"Z"Z"I7 Monitor brightness (_ 326) Manual Manual Clean image sensor (_ 394) Clean at startup/shutdown (_ 396) Ciean at startup & shutd°own ......HDMI (_ 256) Auto Auto Flicker reduction (_ 329) Auto Time zone and date (_ 329) Daylight saving time (_ 329) Auto image rotation...
  • Page 36 The exposure program for programmed auto (_ 118) is shown in the following graph: ISO100; lens with maximum aperture off/1.4 and minimum aperture of f/16 (e.g.,AF 50mm f/1.4D) f/2,8 ....f/1,4 f/56 f/16 f/11 f/22 f/32 30" 15" 8" 4" 2"...
  • Page 37 If the camera fails to function as expected, check the list of common problems below before consulting your retailer or Nikon representative. mmDisplay Viewfinderisout of focus:Adjust viewfinder focus or use optional diopter adjustment lenses (_ 35, 388). Viewfinder is dark: Insert a fully-charged battery (_ 19, 37).
  • Page 38 II Shooting Deiet ie orfoi ..............e tim Shutter-releasedisabled: • Memory card is full (_ 29, 38). • Release locked is selected for Custom Setting fl 1 (Slot empty release lock; _ 319) and no memory card is inserted (_ 29). •...
  • Page 39 AFassistilluminator doesnot light: • AF-assist lamp does not light if AFt is selected for autofocus mode (_ 91). Choose AF-S.If an option other than auto-area AF is selected for AF-area mode, select center focus point (_ 96). • The camera is currently in live view or a movie is being recorded.
  • Page 40 Image cannot be selectedassource for presetwhite balance:Image was not created with D800 (_ 158). White balancebracketingunavailable: • NEF (RAW) or NEF+JPEG image quality option selected for image quality (_ 84). • Multiple exposure mode is in effect(_ 195). Effectsof PictureControldiffer from image to image:A (auto) is selected for sharpening, contrast, or saturation.
  • Page 41 ComputerdisplaysNEF(RAW)imagesdifferently fromcamera:Third party software does not display effects of Picture Controls, Active D-Lighting, or vignette control. Use ViewNX 2 (supplied) or optional Nikon software such as Capture NX 2 (available separately). Cannot transfer photosto computer:OS not compatible with camera or transfer software.
  • Page 42 (largest (blinks) f-number). aperture. Low battery. fully-charged 19, 37 Battery exhausted. Recharge or replace battery. Contact Nikon- Battery can not be used. authorized service representative. An extremely Replace the battery, exhausted or recharge xix, 19, (blinks) rechargeable...
  • Page 43 T :-] ]:7;T!T_o2_o Ti:.-To_;_::7: ?::T_?:: Indicator iii _ Problem Solution Camera unable to focus Change composition using autofocus. 40, 101 focus manually. Use a lower ISO sensitivity. Use optional ND filter. Subject too bright; In exposure mode: S Increase shutter photo will be overexposed.
  • Page 44 Insert new memory card. Release shutter. If error persists or appears Camera malfunction. frequently, consult (blinks) Nikon-authorized service representative. The _ and ¢_1 Icons These icons flash to show the card affected.
  • Page 45 Solution " _Camera cannot Nomemory_rd._ [-E-_ _detect memory confirm that card is Erroraccessing • UseNikon- memory card. approved card. • Check that contacts Thismemory are clean• If card is cardcannotbe damaged, contact used. retailer orNikon Cardmay be representative• Unable to create • Delete files or insert 29, 234 new folder, new memory...
  • Page 46 I ..Flashcannotbe _lrmwarer°rr, lasn Contacta Nikon- unlt mounted ..used. authorized service _camera was not (:ontacta Nikon- _ _--/-[- [ ..representative. authorized upaa_ea correctly. service [[The internal Wait for the internal Unableto start ..• _temperature circuits to cool before ..
  • Page 47 l C°ntr°t / Solution _File has been _creat.ed _modified using a Lannozalsplay _ ....File can not be played _computer back on camera. this tile, [different make of _x::amera, or file is Images created with _Selected image other devices can not be retouched.
  • Page 48 II NikonD8OO/D8OOE Digital Camera Type Single-lens reflex digital camera Lens mount Nikon F mount (with AF coupling and AF contacts) Effective pixels 36.3 million Image sensor 35.9 × 24.0 mm CMOS sensor (Nikon FX format) Total pixels 36.8 million Dust:reducti0n System...
  • Page 49 Fileformat • NEF (RAW):12 or 14 bit, lossless compressed, compressed, or uncompressed • T,FFIRGBI JPEG: JPEG-Baseline compliant with fine (approx. 1 : 4), normal (approx. 1 : 8), or basic (approx. 1 : 16) compression (Size priority); Optimal quality compression available NEF (RAW)+JPEG: Single photograph recorded in both...
  • Page 50 Compatible lenses Compatible with AF NIKKOR lenses, including type and D lenses (some restrictions apply to PC Micro- NIKKOR lenses) and DX lenses (using DX 24 × 16 1.5× image area), AI-P NIKKOR lenses, and non-CPU lenses (exposure modes A and M only). IX NIKKOR lenses, lenses for the...
  • Page 51 Approximate frame With EN-EL15 b atteries Otherpower sources advance rate Imagearea:FX/5 : 4 Imagearea:FX/5 : 4 Cl.:1-4 fps CL:1-4 fps CH: 4 fps CH: 4 fps Imagearea:DX/1.2× Imagearea: 1.2x CL:1-5 fps eL:1-5 fps CH: 5 fps CH: 5 fps Imagearea: DX CL:1-5 fps CH: 6 fps Self-timer...
  • Page 52 O.3, O.5, O.7, 1, or 2 EV (ISO 25600 equivalent) above ISO 6400; auto ISO sensitivity control available ActiveD-Lighting Can be selected from Auto, Extra high, High, Normal, Low, or Off Autofocus Nikon Advanced Multi-CAM 3500FX autofocus sensor module with TTL phase detection, fine-tuning, focus points...
  • Page 53 Built-inflash Manual pop-up with button release and a Guide Number of 12/39, 12/39 with manual flash (m/if, ISO 100, 20 °C/68 °F) Flashcontrol TTL: i -TTL flash control using RGB sensor with approximately 91K (91,000) pixels is available wit h built-in flash and SB-910, SB-900, SB-800, SB-700, SB-600, or SB-400;...
  • Page 54 Modes Live view photography (still images), movie live view (movies) Lensservo • Autofocus(AF): Single-servo AF (AF-S); f ull-time servo AF (AF-F) • Manual focus (M) AF-area mode Face-priority AF, wide-area AF, normal-area AF, subject- tracking Autofocus Contrast-detect AF anywhere in frame (camera selects focus point automatically when face-priority AF or...
  • Page 55 One rechargeable Li-ion EN-EL15 battery lattery pack Optional MB-D12 multi-power battery pack with one rechargeable Nikon EN-EL18 Li-ion battery (available separately'), one rechargeable Nikon EN-EL15 Li-ion battery, or eight AA alkaline, Ni-MH, or lithium batteries. A BL-5 battery-chamber cover is required when using EN-EL18 batteries.
  • Page 56 • Nikon reserves the right to change the specifications of the hardware and software described in this manual at any time and without prior notice. Nikon will not be held liable for damages that may result from any mistakes that this manual may contain.
  • Page 57 North America) Rated input AC 100-240 V, 50/60 Hz, 0.23-0.12 (in other regions) Rated output DC 8.4 V/1.2 Supported batteries Nikon EN-EL15 rechargeable Li-ion batteries Charging tim e Approx. 2 hours and 35 minutes at an ambient temperature of 25 °C/77 °F when...
  • Page 58 Interface are trademarks or registered trademarks of HDMI Licensing LLC. PictBridge is a trademark. All other trade names mentioned in this manual or the other documentation provided with your Nikon product are trademarks or registered trademarks of their respective holders.
  • Page 59 The camera accepts the SD and CompactFlash memory cards listed in the following sections. Other cards have not been tested. more details on the cards listed below, please contact the manufacturer. II SDMemory Cards The following cards have been tested and approved for use in the camera.
  • Page 60 II CompactFlashMemoryCards The following Type I CompactFlash memory cards have been tested and approved for use in the camera. Type II cards and microdrives can not be used. Extreme....................SDCFX 8GB, 16 GB, 32 GB SanDisk Extreme IV SDCFX4 2 GB, 4 GB, 8 GB, 16 GB Extreme III SDCFX3 2 GB, 4 GB, 8 GB, 16 GB...
  • Page 61 The following table shows the approximate number of pictures that can be stored on an 8 GB Toshiba R95 W8OMB/s UHS-I SDHC card at different image quality (_ 84), image size (_ 87), and image area settings (_ 79). II FX (36x24) ImageArea _ NEF (RAW), Lossless 32.4 MB...
  • Page 62 NEF (RAW), Lossless 14.9 M B compressed, 12-bit NEF (RAW), Lossless 18.6 M B compressed, 14-bit NEF (RAW), 13.2 MB Compressed, 12-bit NEF (RAW), 16.2 M B Compressed, 14-bit NEF (RAW), 25.0 MB Uncompressed, 12-bit NEF (RAW), 32.5 MB Uncompressed, 14-bit 46.6 MB 26.8 MB...
  • Page 63 I All figures are approximate. File size varies with scene recorded. 2 Maximum number of exposures that can be stored in memory buffer at ISO 100. Drops if Optimal quality is selected for JPEG compression, ISO sensitivity is set to Hi 0.3 or higher, High ISO NR is on when auto ISO sensitivity control...
  • Page 64 900 shots One EN-EL15 battery (MB-D12): Approximately 900 shots One EN-EL18 battery (MB-D12): Approximately 1,400 shots Eight AA alkaline batteries (MB-D12): Approximately 1,000 shots • Nikon standard 2 One EN-EL15battery (camera): Approximately 2,400 shots One EN-EL15 battery (MB-D12): Approximately 2,400 shots...
  • Page 65 GP-1 GPS unit • Using VR (vibration reduction) mode with VR lenses To ensure that you get the most from rechargeable Nikon EN-EL15 batteries: • Keep the battery contacts clean. Soiled contacts can reduce battery performance. • Use batteries immediately after charging.
  • Page 66 Symbols Accessory shoe ........380 Active D-Lighting ....... 141,174 P (Programmed auto) ......118 Add items (My Menu) ......367 (Shutter-priority auto) ....119 ADL bracketing ......141,307 FI (Aperture-priority auto) ....120 Adobe RGB (Color space) ....274 /I, (Manual) ..........
  • Page 67 Color sketch ........... 359 Auto-area AF ........94, 95 Autofocus ..48-50, 91-100, 281-286 Color space ..........274 Autofocus mode ......48, 91 Color temperature .... 146, 147, 152 Commander mode ....301,303 CompactFlash ...... 29, 326, 434 Backlight ..........4, 296 Compatible lenses .......
  • Page 68 Digital Print Order Format (DPOF) 251, Fine-tune optimal exposure .... 290 Firmware version ......... 340 254,433 Diopter ..........35, 388 Fisheye ............. 358 Flash ....181,188, 190, 380, 381 Direct sunlight (White balance) ..145 Distortion control ........ 358 Flash (White balance) ......
  • Page 69 Full-time servo AF ........48 i-TTL........181,185,382 FV lock ............. 190 FX (36 × 24) 1.0 × ........80 JPEG ............FX format ..........67, 80 JPEG basic ..........FX-based (movie) format ....67, 68 JPEG compression ......... JPEG fine ............ GPS ..........
  • Page 70 ......Programmed auto ....... 118 Neutral (Set Picture Control) ... Protecting photographs ....233 Nikon Transfer 2 ........No. ofcopies (PictBridge [Setup] menu) Quick adjust ........... 166 Noise reduction ........Quick retouch ........357 Non-CPU lens ......212, 371 Normal-area AF ........
  • Page 71 Red-eye reduction ......183 Single-servo AF ....... 48, 91,282 Release button to use dial ....318 Size ..........68, 87, 346 Release mode ........103 Size priority (JPEG compression) ..86 Remote cord ......... 124, 390 Skylight ............ 348 Slide show ..........267 Remove items (My Menu) ....
  • Page 72 USB cable clip ........I,243 Use G PS toset camera clock ... UTC ........... 27, 217, 229 Vibration reduction mode switch ..2 4 Viewfinder ........8,35,424 Viewfinder eyepiece ... 36, 106, 203 Viewfinder focus ......35, 388 Viewing photographs onTV ...
  • Page 73 (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON CORPORATION. Printed in Thailand NIKON CORPORATION © 2011 Nikon Corporation 5MB 12211-02...

This manual is also suitable for:

D800
