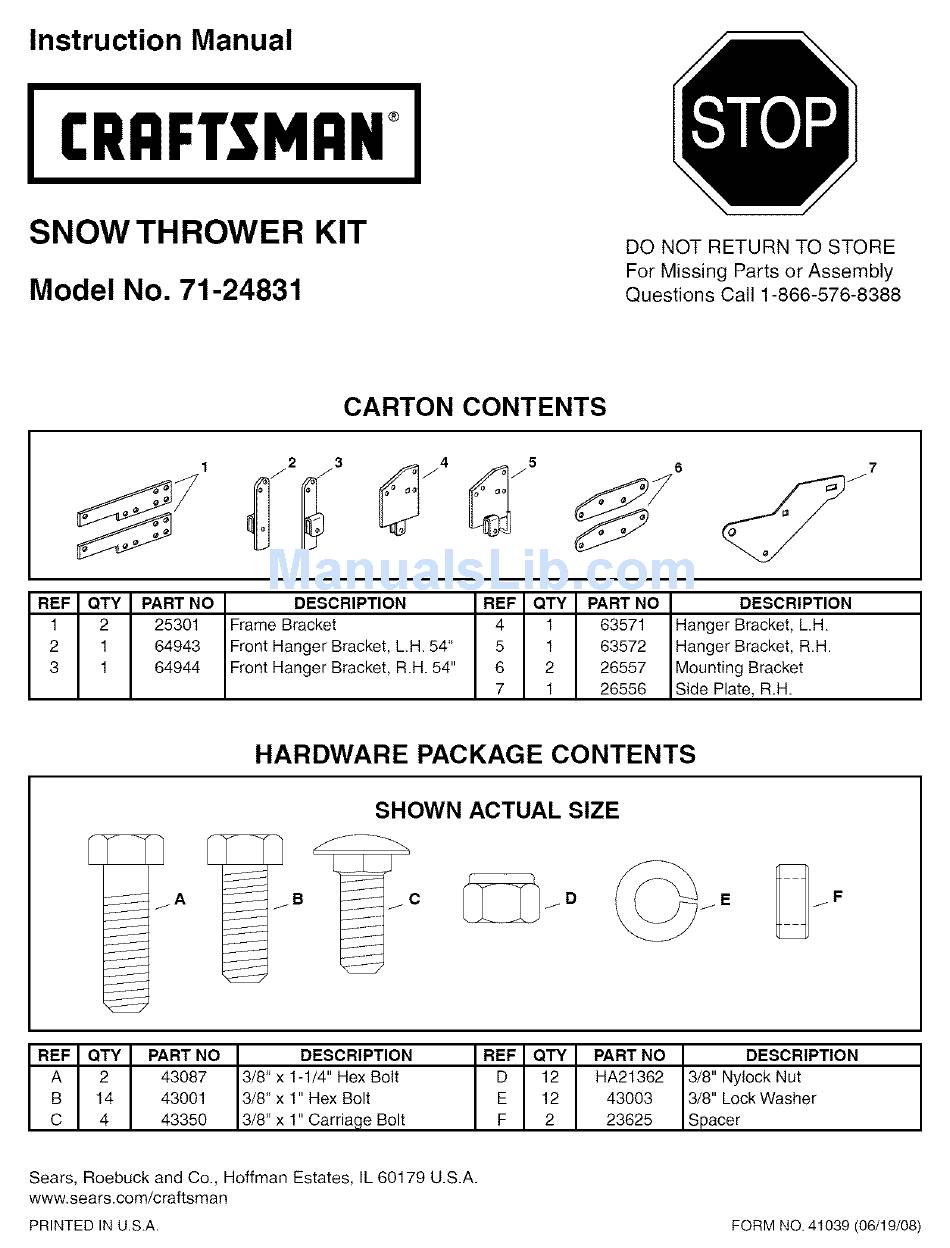

Instruction Manual
I CRRFI"SMRN° I
SNOW THROWER
KIT
Model No. 71-24831
DO NOT RETURN TO STORE
For Missing Parts or Assembly
Questions
Call 1-866-576-8388
CARTON CONTENTS
1
2
3
d
j4
_
5
_/6
REF
QTY
PART NO
1
2
25301
2
1
64943
3
1
64944
DESCRIPTION
REF
QTY
PART NO
Frame Bracket
4
1
63571
Front Hanger Bracket, L.H. 54"
5
1
63572
Front Hanger Bracket, R.H. 54"
6
2
26557
7
1
26556
DESCRIPTION
Hanger Bracket, L.H.
Hanger Bracket, R.H.
Mounting Bracket
Side Plate, R.H.
HARDWARE
PACKAGE CONTENTS
SHOWN ACTUAL
SIZE
B
D
REF
QTY
PART NO
DESCRIPTION
REF
QTY
PART NO
A
2
43087
3/8" x 1-1/4" Hex Bolt
D
12
HA21362
B
14
43001
3/8" x 1" Hex Bolt
E
12
43003
C
4
43350
3/8" x 1" Carriage Bolt
F
2
23625
DESCRIPTION
3/8" Nylock Nut
3/8" Lock Washer
Spacer
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com/craftsman
PRINTED IN U.S.A.
FORM NO. 41039 (06/19/08)
Advertisement
Related Manuals for Craftsman 71-24831
Summary of Contents for Craftsman 71-24831
- Page 1 3/8" x 1-1/4" Hex Bolt HA21362 3/8" Nylock Nut 43001 3/8" x 1" Hex Bolt 43003 3/8" Lock Washer 43350 3/8" x 1" Carriage Bolt 23625 Spacer Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com/craftsman PRINTED IN U.S.A. FORM NO. 41039 (06/19/08)
- Page 2 USE THE FOLLOWING INSTRUCTIONS STEP 2: (SEE FIGURE 2a or 2b) IN PLACE OF STEPS #1 THRU #46 INTHE Attach the RH. side plate (supplied with the kit) to the tractor. If you removed bolts as shown in figure la, SNOW THROWER MANUAL.
- Page 3 If you have a 54" mower deck skip to step #9. STEP 6: (SEE FIGURE 6) For smaller decks use the following instructions, Assemble the L.H. hanger bracket to the left side of the tractor frame using two 3/8" x 1" hex bolts, two STEP 4: (SEE FIGURE 4) 3/8"...
- Page 4 STEP 8: (SEE FIGURE 8) STEP 10: (SEE FIGURE 10) Assemble a frame bracket to the R.H. foot rest. Use Only for 54" mower decks two 3/8" x 1" hex bolts and two 3/8" lock washers. Assemble the 54" R.H. hanger bracket to the holes on Assemble a shoulder bolt (P) and a 3/8"...
- Page 5 ALL PARTS INTHE FOLLOWING INSTRUCTIONS STEP 12: (SEE FIGURE 12) ARE SUPPLIED WITH THE SNOW THROWER EXCEPT Only for 54" mower decks Assemble a frame bracket to the L.H. foot rest. Use FORTHOSE PARTS SHOWN IN GRAY,WHICH ARE SUPPLIED WITH THE KIT. two 3/8"...
- Page 6 STEP 16: (SEE FIGURE 16) STEP 18: (SEE FIGURE 18) Turn the clutch/idler assembly upside down. Two different length drive belts are supplied with your Hook the end of the spring (GG) onto the bottom of the snow thrower. Select the shorter belt with #46989 bolt and nut which secure the idler pulley to the upper printed on it.
- Page 7 COMPLETE STEPS #47 THRU #59 IN THE STEP 19: (SEE FIGURE 19) Only for mower decks smaller than 54" SNOWTHROWER MANUAL,THEN RETURN Attach the rear of the clutch/idler assembly to the tractor TO STEP 21 ON THIS PAGE. frame by sliding the notched arms of the assembly onto the shoulder bolts assembled to the frame brackets.
- Page 8 Your Home For repair - in your home - of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories owner's manuals that you need to do-it-yourself. For Sears professional installation of home appliances and items like garage door openers and water heaters.
