KitchenAid KFGS366VSS00 Parts List
36" gas cooktop
Hide thumbs
Also See for KFGS366VSS00:
- Parts manual (5 pages) ,
- Installation instructions manual (20 pages)
Related Manuals for KitchenAid KFGS366VSS00
Summary of Contents for KitchenAid KFGS366VSS00

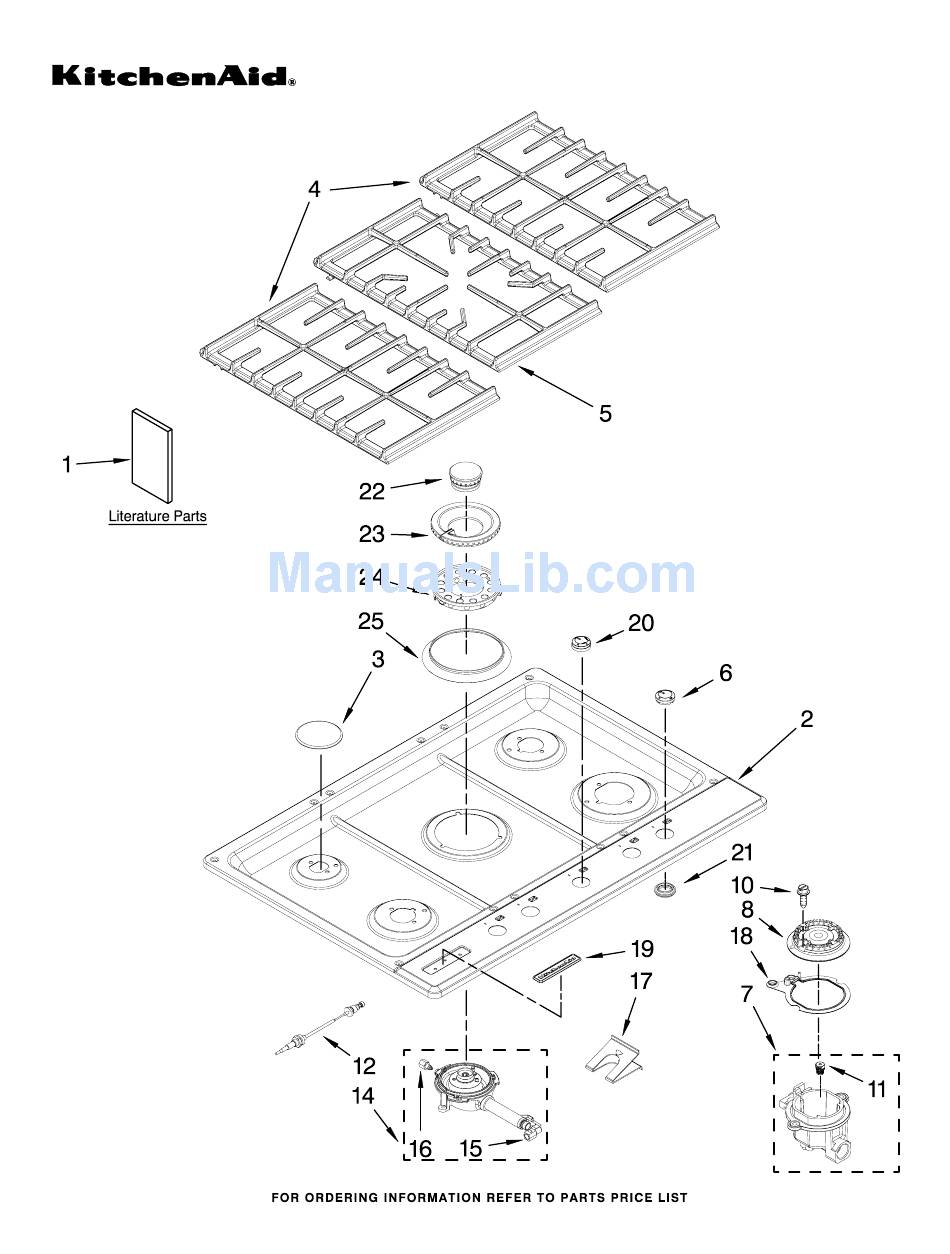

- Page 1 COOKTOP, BURNER AND GRATE PARTS For Models: KFGS366VSS00 (Stainless) 36" GAS COOKTOP 9−10 Litho in U.S.A (amd) (psw) Part No. W10184102 Rev. B...
- Page 2 COOKTOP, BURNER AND GRATE PARTS For Models: KFGS366VSS00 (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 8287049 Grate, Center 8286935 Assembly, Burner Literature Parts 6 W10132192 Knob, Control Base 8286867 Installation Holder, Orifice 15 W10137305 Orifice, External Instructions W10140570 RF,LF Center 8304571 Undercounter,...
- Page 3 BURNER BOX, GAS VALVES, AND SWITCHES For Models: KFGS366VSS00 (Stainless) W10184102...
- Page 4 BURNER BOX, GAS VALVES, AND SWITCHES For Models: KFGS366VSS00 (Stainless) Illus. Part DESCRIPTION 8286753 Rail, Left Burner 8287310 Pipe, Manifold Valve, Gas Burner 8286916 LR 8286919 RR 8286920 RF,LF 8286917 Center 8287055 Bracket, Single Valve (4) 8286754 Rail, Center 8286691 Transformer 8286921 Screw 8286858 Bracket, Mainfold 3196160 Screw...
-
Page 5: Wiring Harness Parts
OPTIONAL PARTS (NOT INCLUDED) For Models: KFGS366VSS00 (Stainless) Illus. Part DESCRIPTION Following Parts Not Illustrated 8286692 Cord, Power 3177991 Screw W10132200 Strain Relief 8286862 Insulation W10183573 Gasket, Rubber 1090mm W10132169 Gasket, Rubber 1765mm Miscellaneous 8287082 Spud Kit W10183556 Clip, Wire W10163327 Assembly, Mounting Hardware WIRING HARNESS PARTS...
