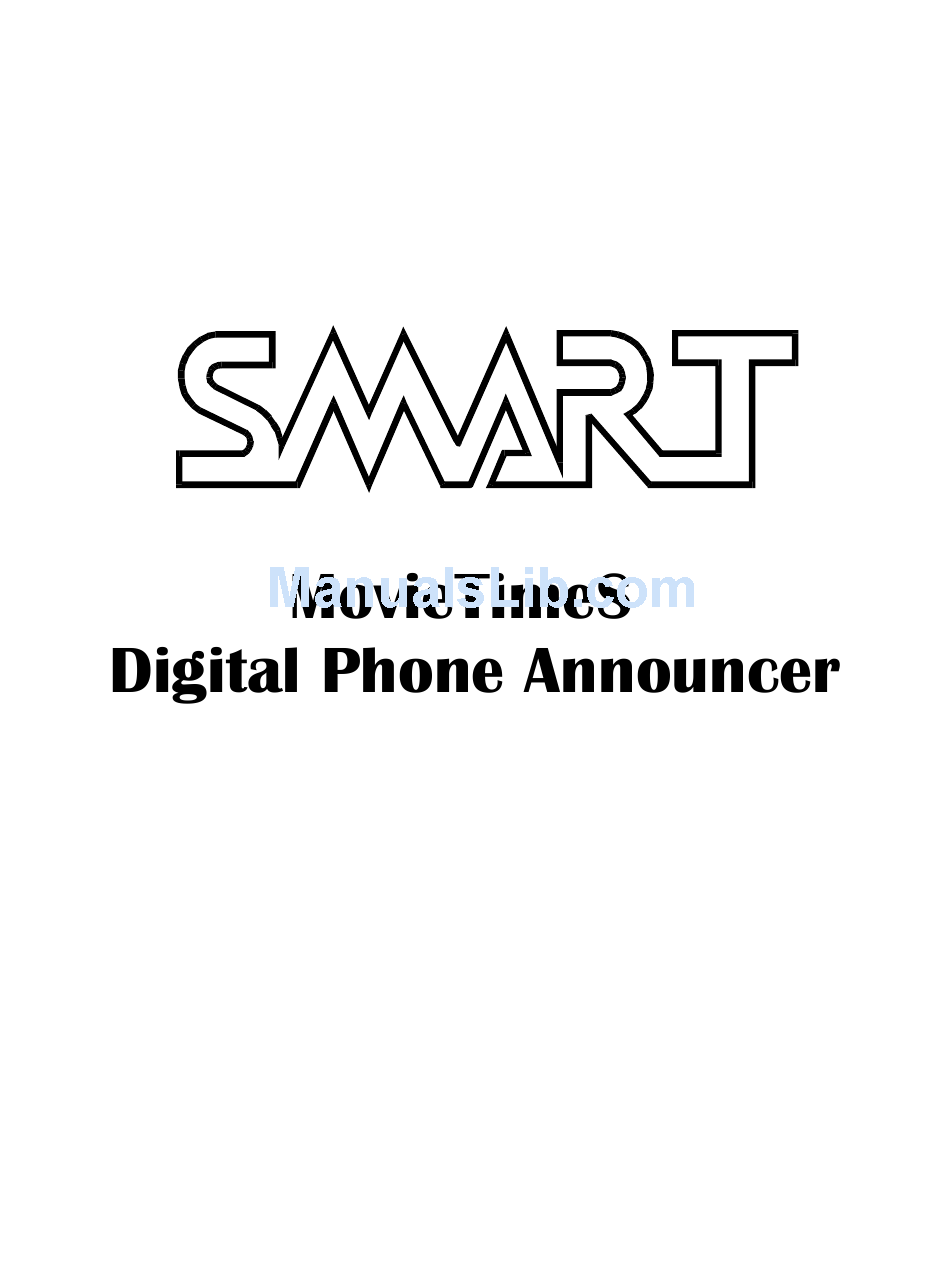

- Page 1 Installation & Operation Manual Please leave this manual with the customer after installation 3/1/99...
- Page 2 Glossary of terms used in this manual. TELCO Telephone company line that comes to your building. KSU/PBX Key Service Unit. A telephone system that has multiple lines. May be mechanical buttons or electronic. PBX means Private Branch Exchange. 117 VAC 117 volts AC current.
-
Page 3: Table Of Contents
Memory Test Restore Defaults APPENDIX A - Message Configuration Table APPENDIX B - Command Summary APPENDIX C - Default Settings SUGGESTIONS FOR RECORDING MESSAGES APPENDIX D - Specifications APPENDIX E - Contacting SMART Customer Support APPENDIX F - Notices & Warranty... -
Page 4: Introduction
INTRODUCTION SYSTEM DESCRIPTION The MovieTimeS is an advanced digital call screening and messaging system designed to answer calls with an informative greeting, then let the callers select any number of the additional pre-recorded messages. The MovieTimeS is a two-line unit capable of handling two calls simultaneously. Message recording and system programming functions are accessed locally or remotely by a standard touch- tone telephone. -
Page 5: Sample Application
Selection Message #4 Star Wars is coming to the Megaplex theatre on May 21. This highly anticipated blockbuster will be played on the new SMART Circle Surround EX 3-channel digital system. Other exciting new releases we have booked are . . . , etc. - Page 6 type phone. This special line can use our MovieTimeS DASA300 digital announcer on the phone line.
-
Page 7: Installation
INSTALLATION GENERAL INFORMATION Install the MovieTimeS in close proximity to the telephone line which the unit is to answer and within 6’ of a 117VAC wall outlet. The MovieTimeS is designed to mount on a wall, shelf or other flat surface. When mounting the unit, be sure to leave clearance at the rear of the unit for connection accessibility. - Page 8 The MovieTimeS must be installed on the phone company side of your phone system. If installed directly to an unsuitable extension line the phone system or the MovieTimeS may be damaged. If you are not familiar with how your phone system is installed, or do not know which lines go directly to your phone company please find a qualified person to perform the installation.
-
Page 9: Installation Notes
INSTALLATION NOTES Required Lines The MovieTimeS does not require phones to be attached to the PHONE connectors for operation. The MovieTimeS does require a working phone line to be attached to the TELCO connector in order to seize control from the associated PHONE connector. Line(s) to be Answered The MovieTimeS can handle two telephone lines. -
Page 10: Lights & Indicators
LIGHTS & INDICATORS The MovieTimeS front panel has a multicolored Mode LED and a green Line LED for each available line. MODE LED The Mode LED normally flashes green to indicate normal operation. The Mode LED also flashes amber as the MovieTimeS processes commands. -
Page 11: Set Up / Operation
If you have a 10-plex, you will have 14 unused show times boxes. You may elect to use these empty boxes for movie reviews of the current movies. For example: In the Movie List box say “For Titanic press 2, for a review of this movie by the leading film critics, press 23.”... -
Page 12: Review
* 5 0 3 3 # Record Info. Message #1 * 5 0 3 4 # Record Info. Message #2 * 5 0 3 5 # Record Info. Message #3 MESSAGE REVIEW The Message Review commands allow the user to review each of the messages. After the command is entered the requested message plays. -
Page 13: Set Repeats
SET NUMBER OF REPEATS The Set Number of Repeats command sets the number of times the Greeting message repeats. Valid numbers of repeats range from 00 to 15. If a user enters a valid number they hear the success beep and return to command mode ready to enter the next command. -
Page 14: Memory Test
MEMORY TEST The Memory Test command performs a diagnostic on the audio memory testing for errors. The Memory Test command erases all messages and resets the unit to the factory default settings. If the command is correctly entered the user hears the system busy signal for a period of time while the test is performed, followed by the success beep or error tone depending on the outcome of the test. -
Page 15: Appendix C - Default Settings
01-24 = Screens, 31 = Greeting, 32 = Movie List, 33-35 = Info. Message Delete * 7 0 X X # None Deletes Messages 01-24 = Selections, 31 = Greeting, 32 = Selection List, 33-35 = Info. Memory Request * 8 0 # None 3 Beeps Memory Test... - Page 16 Extra The 4 box can be used for any special promotion or event. It could be used to announce coming attractions. Example: Star Wars is coming to this theatre in May. Presented in digital sound with the new Circle Surround EX extended surround sound. All options should be included in the opening greeting message.
-
Page 17: Appendix D - Specifications
APPENDIX D SPECIFICATIONS AUDIO Encoding/Decoding 8 Bit -Law Sampling Frequency 8kHz Frequency Response 50 Hz to 3.5 kHz +/- 1.5 dB MEMORY Type Flash Size 16 Megabytes MESSAGING Number of Messages Total Message Time 16 minutes CONNECTORS Power 2.5mm Power Connector Line 1 Telco RJ-11 Type Modular Jack Line 1 Phone... - Page 18 WALL MOUNTING THE MovieTimeS DIGITAL ANNOUNCER. A plastic mounting plate and 2 self taping screws is furnished with the MovieTimeS machine for wall mounting the product. 1. Screw the plate to the wall where you wish to mount the machine, making sure the plate is level. 2.
-
Page 19: Appendix E - Contacting Smart Customer Support
SMART hourly rate plus the cost of parts, and shipping. All implied warranties, if any, terminate two years from date of original purchase. SMART is not responsible for damage to other equipment or property or any other consequential incidental damage of any kind, whether based upon contract, negligence or strict liability. Maximum liability shall not, in any case, exceed the purchase price of the equipment.
