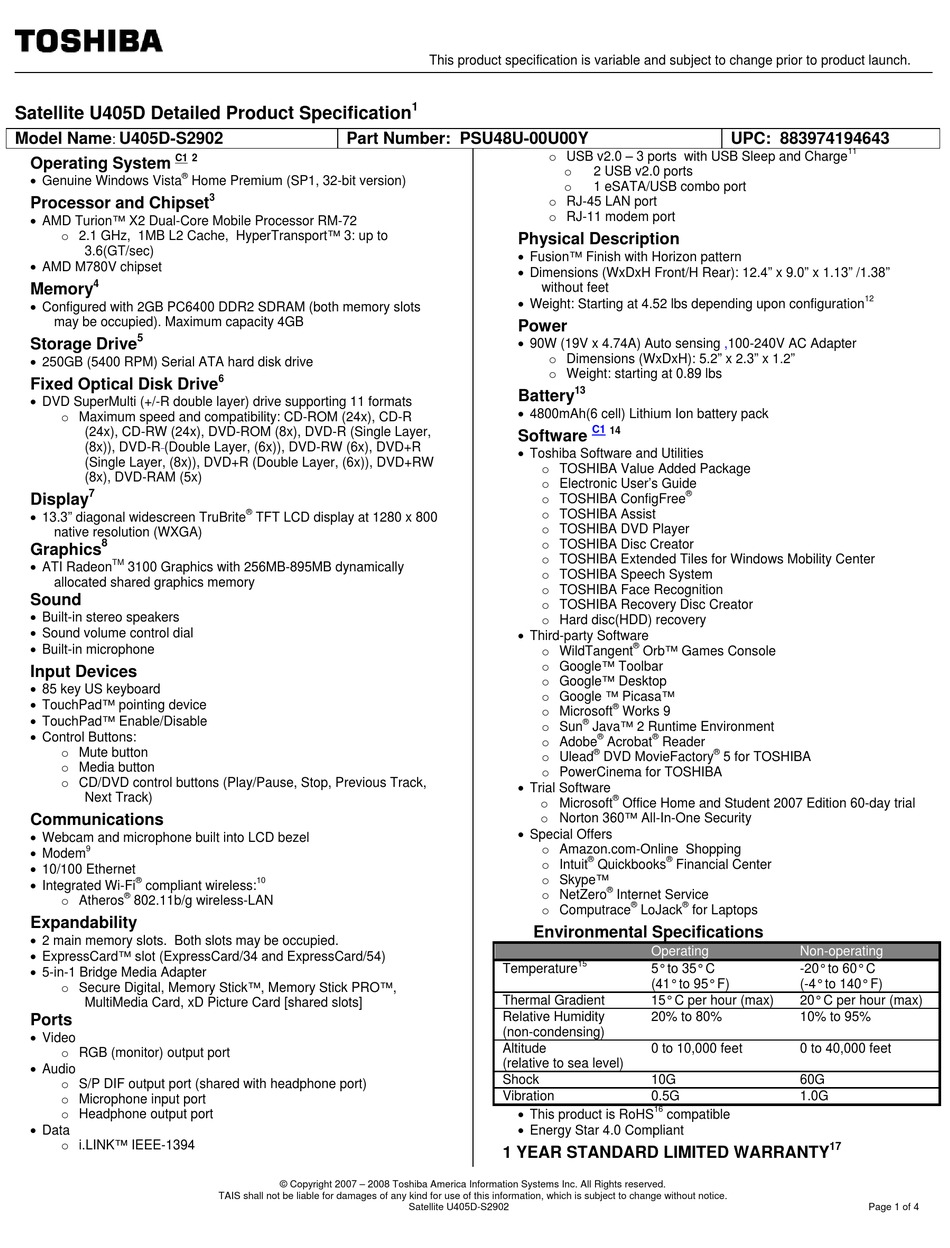

Toshiba Satellite U405D-S2902 Specification Sheet

Satellite U405D Detailed Product Specification
Model Name U405D-S2902
:
C1 2

Operating System

 Genuine Windows Vista ®
Home Premium (SP1, 32-bit version)

Processor and Chipset

 AMD Turion™ X2 Dual-Core Mobile Processor RM-72
o 2.1 GHz, 1MB L2 Cache, HyperTransport™ 3: up to
3.6(GT/sec)
 AMD M780V chipset
4

Memory

 Configured with 2GB PC6400 DDR2 SDRAM (both memory slots
may be occupied). Maximum capacity 4GB
5

Storage Drive

 250GB (5400 RPM) Serial ATA hard disk drive
Fixed Optical Disk Drive
 DVD SuperMulti (+/-R double layer) drive supporting 11 formats
o Maximum speed and compatibility: CD-ROM (24x), CD-R
(24x), CD-RW (24x), DVD-ROM (8x), DVD-R (Single Layer,
(8x)), DVD-R (Double Layer, (6x)), DVD-RW (6x), DVD+R
(Single Layer, (8x)), DVD+R (Double Layer, (6x)), DVD+RW
(8x), DVD-RAM (5x)
7

Display

 13.3" diagonal widescreen TruBrite
native resolution (WXGA)
8
Graphics
 ATI Radeon TM
3100 Graphics with 256MB-895MB dynamically
allocated shared graphics memory
Sound
 Built-in stereo speakers
 Sound volume control dial
 Built-in microphone
Input Devices
 85 key US keyboard
 TouchPad™ pointing device
 TouchPad™ Enable/Disable
 Control Buttons:
o Mute button
o Media button
o CD/DVD control buttons (Play/Pause, Stop, Previous Track,
Next Track)
Communications
 Webcam and microphone built into LCD bezel
 Modem
9
 10/100 Ethernet
 Integrated Wi-Fi
®
compliant wireless:
®
o Atheros 802.11b/g wireless-LAN
Expandability
 2 main memory slots. Both slots may be occupied.
 ExpressCard™ slot (ExpressCard/34 and ExpressCard/54)
 5-in-1 Bridge Media Adapter
o Secure Digital, Memory Stick™, Memory Stick PRO™,
MultiMedia Card, xD Picture Card [shared slots]
Ports
 Video
o RGB (monitor) output port
 Audio
o S/P DIF output port (shared with headphone port)
o Microphone input port
o Headphone output port
 Data
o i.LINK™ IEEE-1394
Part Number: PSU48U-00U00Y
3
6
®
TFT LCD display at 1280 x 800
10
© Copyright 2007 – 2008 Toshiba America Information Systems Inc. All Rights reserved.
TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
This product specification is variable and subject to change prior to product launch.
1
o USB v2.0 – 3 ports with USB Sleep and Charge
o
o
o RJ-45 LAN port
o RJ-11 modem port
Physical Description
 Fusion™ Finish with Horizon pattern
 Dimensions (WxDxH Front/H Rear): 12.4" x 9.0" x 1.13" /1.38"
without feet
 Weight: Starting at 4.52 lbs depending upon configuration
Power
 90W (19V x 4.74A) Auto sensing ,100-240V AC Adapter
o Dimensions (WxDxH): 5.2" x 2.3" x 1.2"
o Weight: starting at 0.89 lbs
13
Battery
 4800mAh(6 cell) Lithium Ion battery pack
Software
 Toshiba Software and Utilities
o TOSHIBA Value Added Package
o Electronic User's Guide
o TOSHIBA ConfigFree
o TOSHIBA Assist
o TOSHIBA DVD Player
o TOSHIBA Disc Creator
o TOSHIBA Extended Tiles for Windows Mobility Center
o TOSHIBA Speech System
o TOSHIBA Face Recognition
o TOSHIBA Recovery Disc Creator
o Hard disc(HDD) recovery
 Third-party Software
o WildTangent
o Google™ Toolbar
o Google™ Desktop
o Google ™ Picasa™
o Microsoft
®
o Sun
o Adobe
o Ulead
o PowerCinema for TOSHIBA
 Trial Software
o Microsoft
o Norton 360™ All-In-One Security
 Special Offers
o Amazon.com-Online Shopping
o Intuit
o Skype™
o NetZero
o Computrace
Environmental Specifications
15
Temperature
Thermal Gradient
Relative Humidity
(non-condensing)
Altitude
(relative to sea level)
Shock
Vibration
 This product is RoHS
 Energy Star 4.0 Compliant
1 YEAR STANDARD LIMITED WARRANTY
Satellite U405D-S2902
UPC: 883974194643
2 USB v2.0 ports
1 eSATA/USB combo port
C1
14
®
®
Orb™ Games Console
®
Works 9
Java™ 2 Runtime Environment
® ®
Acrobat Reader
® ®
DVD MovieFactory 5 for TOSHIBA
®
Office Home and Student 2007 Edition 60-day trial
® ®
Quickbooks Financial Center
®
Internet Service
® ®
LoJack for Laptops
Operating
5° to 35° C
(41° to 95° F)
15° C per hour (max)
20% to 80%
0 to 10,000 feet
10G
0.5G
16
compatible
11
12
Non-operating
-20° to 60° C
(-4° to 140° F)
20° C per hour (max)
10% to 95%
0 to 40,000 feet
60G
1.0G
17
Page 1 of 4
