Scitec 205T User Manual

2510D / 2510D-e / 2554W
205TMW / 205T Single-Line
Telephones
This telephone user guide details installation, programming, and
operation instructions for industry standard telephone models.
Please refer to the Scitec website News section and click on
Product Notes for updates to this and other Scitec products.
Package Contents:
• Telephone base unit
• Handset
• Coiled handset cord
• Straight line cord
• Short line cord (205TMW/205T)
Installation (desk set):

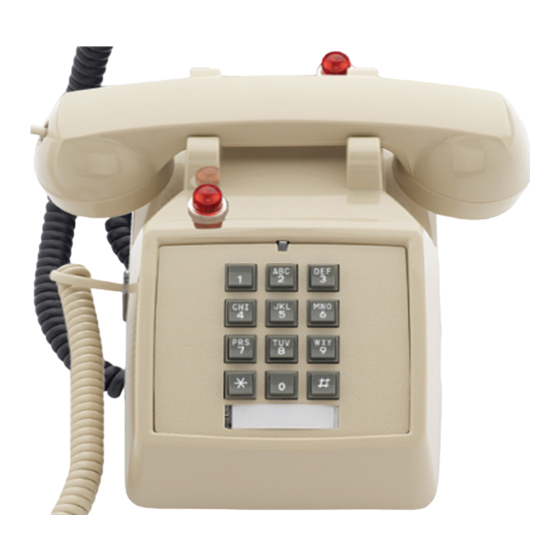

The 2500 telephone is designed for use behind a registered
PBX system. The telephone user or system installer must
supply an RJ-11 modular wall jack to connect this telephone to
the PBX system. The PBX "station port" type must be "Industry
Standard Analog" or "POTS." This telephone cannot be used
with "digital" PBX station ports. Insert one end of the coiled
handset cord into the jack on the LEFT SIDE of the base unit.
STANDARD SERIES
Telephone User Guide
Insert the other end of the cord into the jack on the bottom end
of the handset. Connect the straight line cord from the wall jack
to one of the "Line or Data" jacks located on the rear of the base
unit. Lift the handset. A dial tone should be heard in the receiver.
Installation (wall set)
The 2554W telephone is designed for use behind a registered
PBX system. The telephone user or system installer must supply
an RJ-11W modular wall jack to connect this telephone to the
PBX system. The PBX "station port" type must be "Industry
Standard Analog" or "POTS." This telephone cannot be used
with "digital" PBX station ports. Insert one end of the coiled
handset cord into the jack on the BOTTOM SIDE of the base
unit. Insert the other end of the cord into the jack on the bottom
end of the handset. Fit the plug on the back of the telephone
into the wall jack. Align the slotted holes on the back of the
telephone over the mounting studs on the wall jack. Pull down
them on the telephone until the studs are locked in place. Lift
the handset. A dial tone should be heard in the receiver.
Conversion to wall mount (trimlines)
Connect the base unit to the handset as instructed above. Con-
nect the 5 inch straight line cord from the wall jack to the line
jack located underneath the base unit. Align the slotted holes
on the back of the telephone over the mounting studs on the
wall jack. Pull down on the telephone until the studs are locked
in place.
