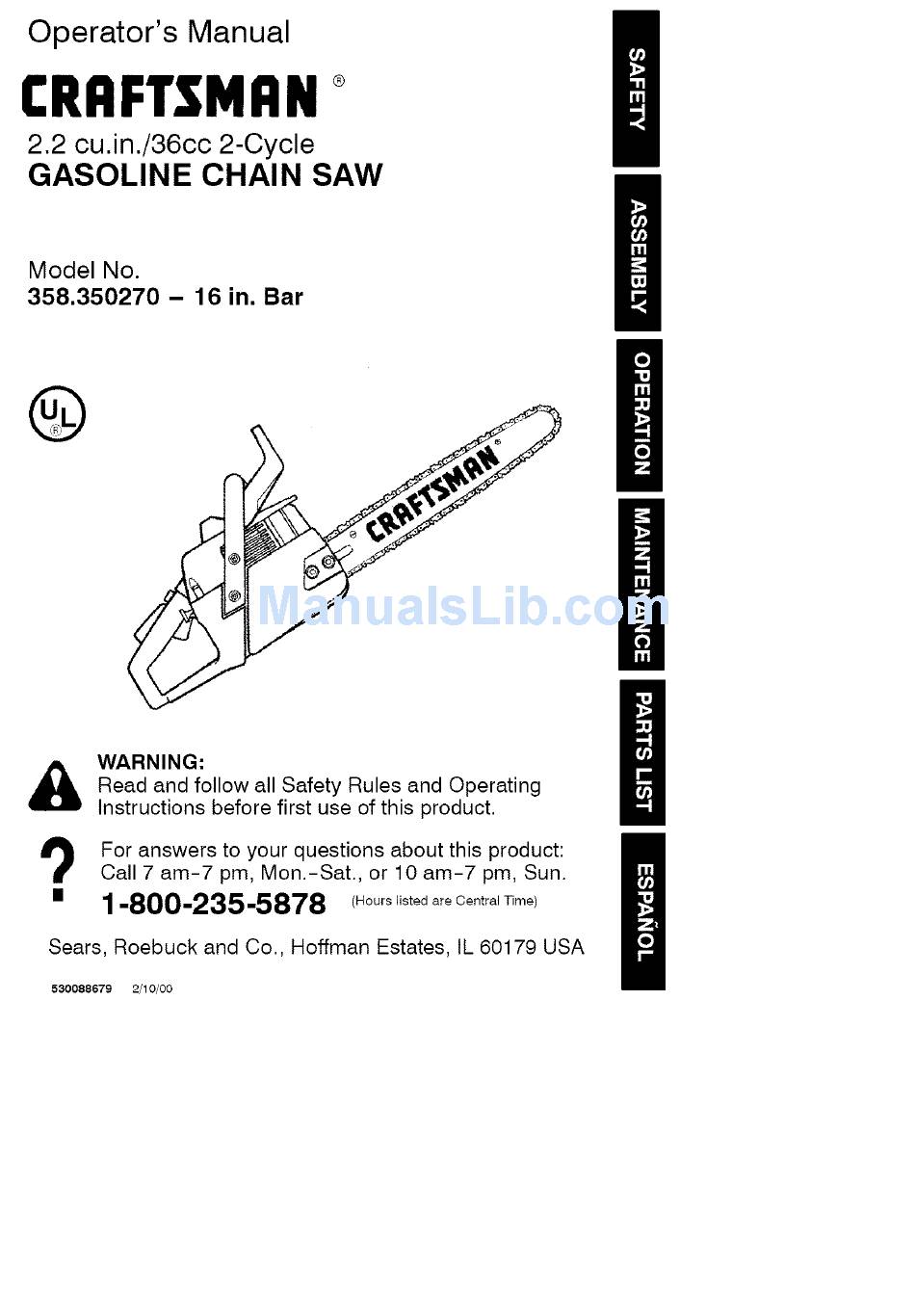

Operator's
Manual
CRRFTSMRN o
2.2 cu.in./36cc
2-Cycle
GASOLINE
CHAIN
SAW
Model No.
358.350270
- 16 in. Bar
@
A
WARNING:
Read and follow all Safety
Rules and Operating
Instructions
before first use of this product.
For answers
to your questions
about this product:
Call 7 am-7
pm, Mon.-Sat.,
or 10 am-7
pm, Sun.
1-800-235-5878
(Hours listed are Central Time)
Sears, Roebuck
and Co., Hoffman
Estates,
IL 60179 USA
530088679
2/10/00
