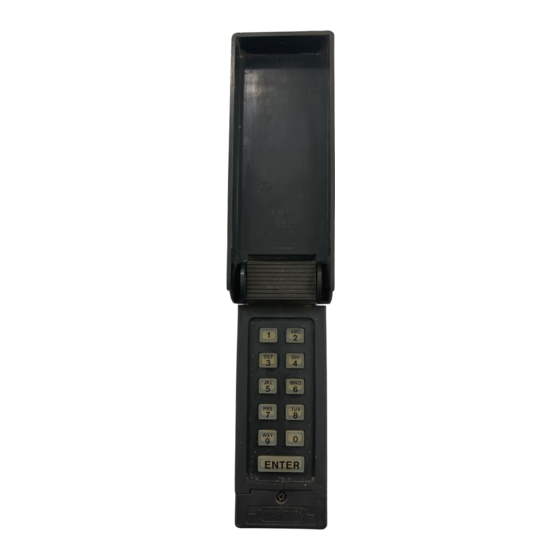

TOUCH CODE TRANSMITTER
MODEL
139.53776
OWNERS
MANUAL
FCC. rules prohibit adfustments
to or modification of receiver and transmitter
circuitry
except for changing
the code setting
and replacing
the transmitter
battery. THERE ARE NO OTHER USER SERVICEABLE
PARTS.
Manufactured
under" 1 _ m_e
of the following
U S. patents:
RE29,.525; 4,037",201; 4,750,118; 4,806,930
FEATURES
OF THE
TOUCH
CODE
TRANSMITTER
Personalized
Code:
Upto 10,000 possible combinations,
Code can easily be changed if desired.
Operation:
Opener activates when programmed code is
keyed into transmitter
and ENTER button is pressed,
The user has 10 seconds to key in the 4-digit code and
press the ENTER button.
tf wrong numbers are accidentally pressed, correction can
be made immediately.
The ENTER key will transmit only
the last four digits°
This transmitter
can be used with any 5B000SR Series
garage door opener and/or Light Control.
Keypad will Illuminate
for 10 seconds at the first push of
ANY number
key,
Keypad will remain illuminated
for 20 seconds after code
is transmitted°
During
that
time
you
can STOP
or
REVERSE
door travel just by pressing
the ENTER key.
Power Supply:
12Volt battery.
Installation:
Simple to install, Fastening screws and plug
are provided_
All 53000SR Sedes Receivers have two memory channels;
one for the Touch Code Transmitter
and the other for all
portable transmitters
used to operate an opener or to turn
on lights.
INSTALL
TRANSMITTER
Open the transmitter
cover and remove the battery compartment
screw. Set cover aside and remove battery. NOTE BATTERY
POLARITY
AS MARKED
ON COMPARTMENT
Follow
the mounting
instructions
which
apply to your type of door as
described
below.
NOTE:
If you want the transmitter'
in a location
different
from the one illustrated,
it is recommended
that you program
the code into the receiver and test the operation
of the transmitter
before mounting
it. A metal door, foil-backed
insula-
lion or aluminum
siding
will lessen transmission
range.
SECTIONAL
DOOR
INSTALLATION:
Center the trans-
mitter on garage jamb face at eye level as shown (Figure 1).
Hold the transmitter
firmly against jamb with cover half open
so both top and bottom mounting
holes are visible_ Use a
punch to mark each hole.Drill two 1/8" pilot holes, Fasten
transmitter
securely with screws provided.
insert the plug provided into top hoTe to cover the fastening
screw. W l'len installing
the battery,
be sure to observe
polarity
(refer
to illustration),
Re-fasten
compartment
cover.
ON_=-PIECE
DOOR
INSTALLATION:
Install
the
transmitter
on exterior front wall of a FRAME garage. Be sure
to position
it away from the door opening to avoid injury as
door swings out and up (Figure 2). NOTE:
If the garage is
constructed
of material
other than wood (brick, stone or
aluminum
siding),
install
transmitter
on door jamb with
this
important
exception:
LOCATE TRANSMITTER
ON
OUTSIDE
EDGE OF DOOR JAMB TO AVOID INJURY AS
DOOR SWINGS OUT AND UP.
Mark fastening
holes, drilt and install
the transmitter
as
instructed
for sectional
door_ NOTE BATTERY POLARITY.
Keyboard
FIGURE t
b
FIGURE
2
Garage
!
Side 1
