Craftsman 917.773730 Owner's Manual

Craftsman 917.773730 Owner's Manual

625 series briggs & stratton engine 22 inch cut wheeled weedtrimmer
Hide thumbs

Advertisement

Available languages

Available languages

Quick Links

Download this manual

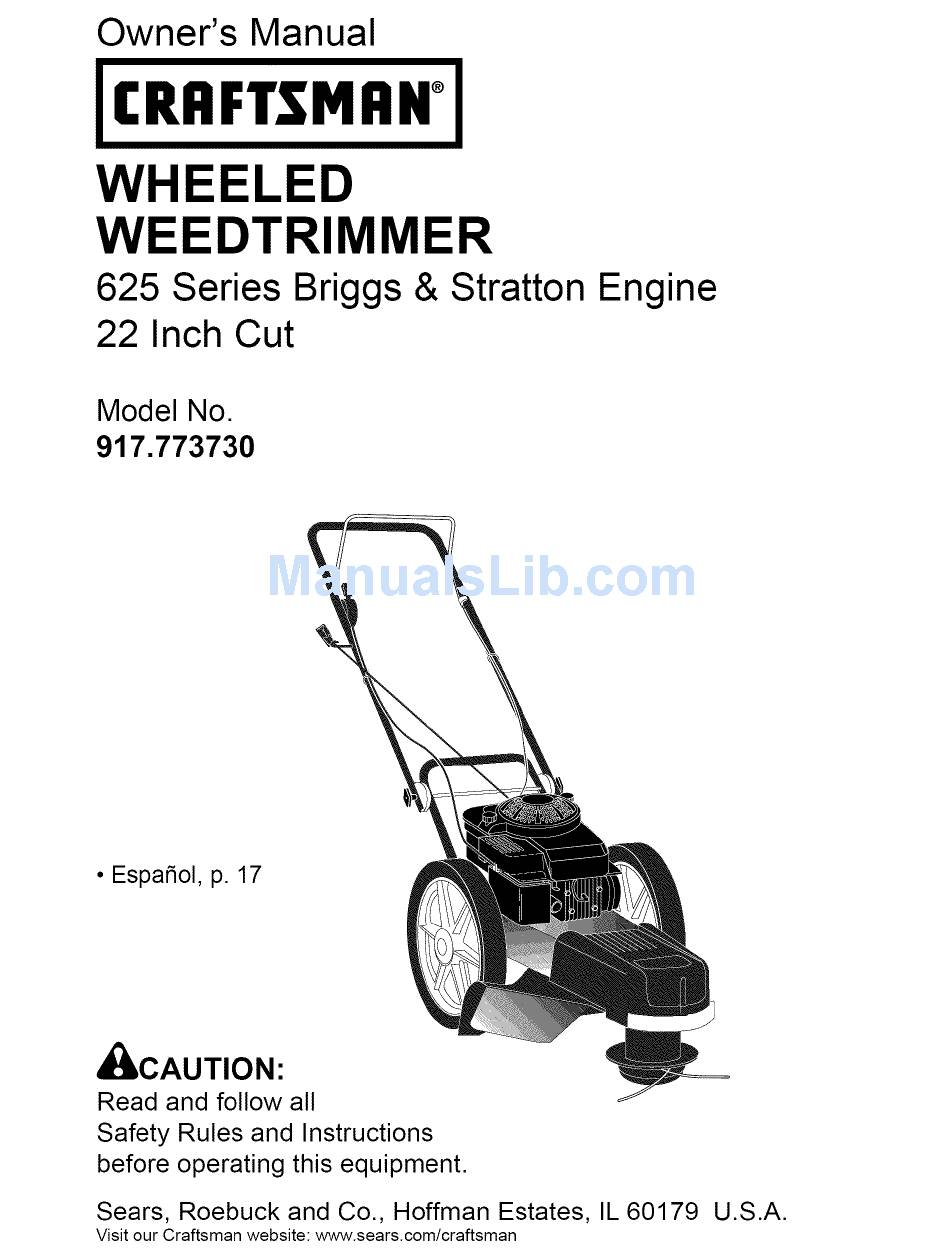

Owner's
Manual
(RRFTSMRH °
WHEELED
WEEDTRIMMER
625 Series Briggs & Stratton Engine
22 Inch Cut
Model No.
917.773730
• EspaSol, p 17
_,CAUTION:
Read and follow all
Safety Rules and Instructions
before operating this equipment.
Sears, Roebuck and Co, Hoffman Estates, IL 60179
Visit our Craftsman website: www sears com/craftsman
USA
