PARTS
MANUAL
MODEL NO.
919.165330
IMPORTANT:
Read the
Safety
Guidelines
and
All Instructions
Carefully
Before
Operating,
CRRFTSMRNo
"TWIN-V"
OILFREE
AIR COMPRESSOR
SPECIFICATION
CHART
Model
No.
919.165330
Horsepower
6.5
Displacement CFM
21.2
Bore
2 3/8"
Stroke
1.2"
Voltage-Single Phase
240
Minimum Branch Circuit Requirement
15 amps
Fuse Type
Time Delay
Air Tank Capacity - GAL
33 Gal. ASME
ApproximateCut-in
Pressure
100
Approximate Cut-out Pressure
130
SCFM @40 psig
14.2
SCFM @90 psig
9.9
Sears,
Roebuck
and Co.,
Hoffman
Estates,
IL 60179
U.S.A.
M-165330
10/6/97
Advertisement
Table of Contents
Related Manuals for Craftsman 919.165330
Summary of Contents for Craftsman 919.165330

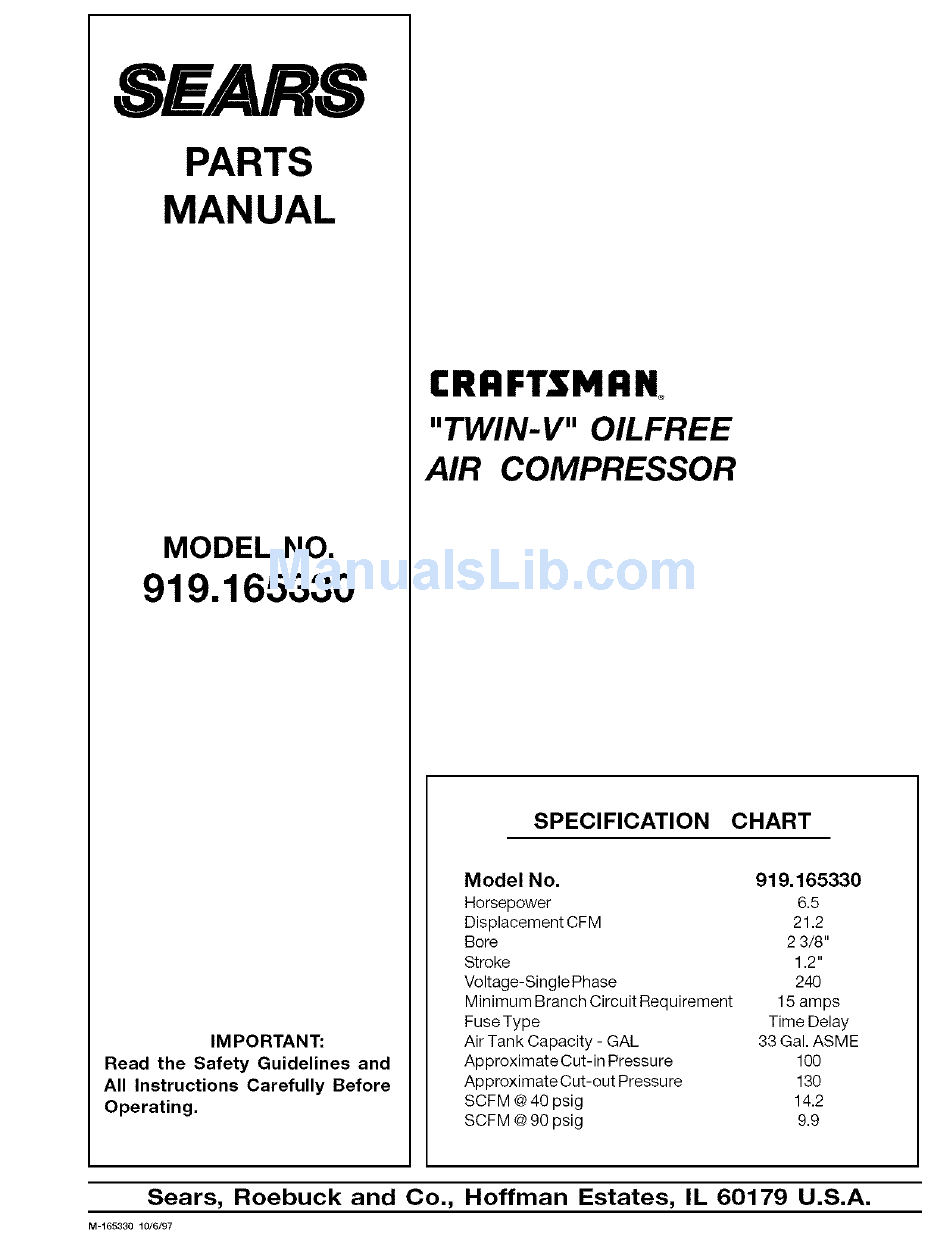

- Page 1 $ 4R$ PARTS MANUAL CRRFTSMRNo "TWIN-V" OILFREE AIR COMPRESSOR MODEL NO. 919.165330 SPECIFICATION CHART Model 919.165330 Horsepower Displacement CFM 21.2 Bore 2 3/8" Stroke 1.2" Voltage-Single Phase Minimum Branch Circuit Requirement 15 amps Fuse Type Time Delay IMPORTANT: Air Tank Capacity - GAL 33 Gal.
-
Page 2: Air Compressor
AIR COMPRESSOR DIAGRAM... -
Page 3: Parts List
Screw, 1/4" - 20 x 1 1/8" (2 used: Torque 9-12 ft.-Ibs.) ACG-18 Cup, Saddle Mount (2 used) AC-0099 OutletTube ACG-19 Isolator (3 used) TA-4431 Tank - 33 Gallon LA-3105 Label, Craftsman LA-3027 Label, Drain Tank SSP-470 Hex Reducer Bushing SS-2707 Drain Valve SUDL-6-1 Strip, Rubber Foot SSF-832... -
Page 4: Pump Diagram
COMPRESSOR PUMP DIAGRAM... - Page 5 PARTS LIST DESCRIPTION PARTNUMBER Motor MO-3024 ACG-8 Pin, Eccentric ACG-6 Counter Balance, Inner Washer ACG-9 ACG-7 Counter Balance, Outer ACG-23 Nut (Torque 85-100 ft.-Ibs.) ACG-22 39124607 Screw, Self Tap 1/4 x 5/8 ( Torque 75-90 in.-Ibs.) +*59 AC-0263 Sleeve, Cylinder (2 used) ACG-65 Connecting Rod (2 used) DAC-308...
-
Page 6: Service Notes
SERVICE NOTES... - Page 7 SERVICE NOTES...
- Page 8 CRRFTSMRH "TWIN-V" OILFREE PARTS AIR COMPRESSOR MANUAL For the repair or replacement parts you need Call 7 am - 7 pm, 7 days a week MODEL NO. 1 -8OO-366-PART 919.165330 (1-800-366-7278) For in-home major brand repair service When requesting service or ordering Call 24 hours a day, 7 days a week parts, always provide the following in- formation:...
- Page 9 MANUAL DE PARTES CRRFTSMRN, COMPRESOR DE AIRE "TWIN-V" SIN LUBRICACI(_N MODEL NO. 919.165330 TABLA DE ESPECIFICACIONES Modelo 919.165330 Caballaje Desplazamiento CFM 21.2 Orificio 2 3/8" Carrera 1.2" Voltaje - Una Fase Requerimientos Minimos de Circuito 15 Amperios Tipo de Fusible Retardo Capacidad del Tanque de Aire - Gal.
-
Page 10: Diagrama Del Compresor
DIAGRAMA DEL COMPRESOR DE AIRE... -
Page 11: Lista De Partes
Cubiertas del Montaje de la Montura (se usan 2) AC-0099 Tube de Salida ACG-19 Aisiante (se usan 3) TA4431 Tanque de 33 Gal. LA-3105 R6tulo de Craftsman LA-3027 R6tulo - Drenaje del Tanque SSP-470 Buje Reductor Hexagonal SS-2707 Valvula de Drenaje SUDL-6-1... - Page 12 DIAGRAMA DE LA BOMBA DEL COMPRESOR <:_ -- ..............
- Page 13 LISTA DE PARTES NO. EN DIAG. NUMERO DE PARTE DESCRIPCION MO-3024 Motor ACG-8 Clavija Excentrica ACG-6 Contrapeso Interior ACG-9 Arandela ACG-7 Contrapeso Exterior ACG-23 Tuerca (Torque 85-100 Pies. - Lbs.) ACG-22 Ventilador 39124607 Tornillo Autoenroscante 1/4 x 5/8 (Torque 75 - 90 Pulg. - Lbs.) X •...
-
Page 14: Notas De Servicio
NOTAS DE SERVICIO... - Page 15 NOTAS DE SERVICIO...
-
Page 16: Compresor De Aire
CRAFTSI4RNo COMPRESOR DE AIRE MANUAL " TWIN-V " SIN LUBRICACION DE PARTES MODELO NO. 919.165330 Para solicitar servicio de reparaci6n o repuestos que usted necesite, Ilamar de 7 am a 7 pm, los 7 dias de la semana al 1 -800-366-PART AI ordenar repuestos, siempre dar la siguiente informaci6n: (1-800-366-7278)
