Use and Care Manual

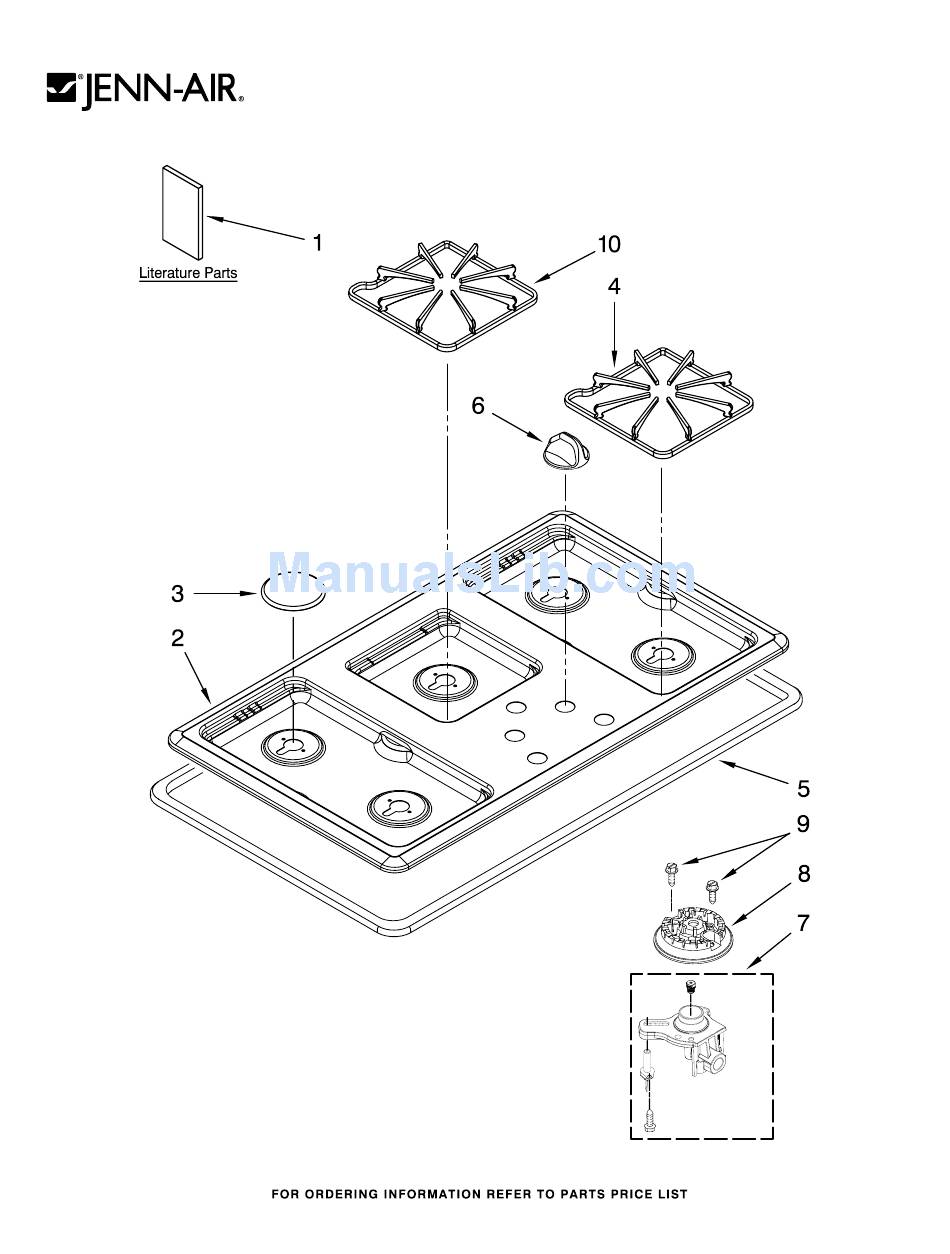

COOKTOP, BURNER AND GRATE PARTS
For Models: JGC1536ADW15, JGC1536ADB15, JGC1536ADS15
(White)
(Black)
(Stainless)
36" GAS COOKTOP
1
9−10 Litho in U.S.A. (JMJ) (psw)
Part No. W10260332 Rev. C
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Jenn-Air JGC1536ADB15
Summary of Contents for Jenn-Air JGC1536ADB15
- Page 1 COOKTOP, BURNER AND GRATE PARTS For Models: JGC1536ADW15, JGC1536ADB15, JGC1536ADS15 (White) (Black) (Stainless) 36" GAS COOKTOP 9−10 Litho in U.S.A. (JMJ) (psw) Part No. W10260332 Rev. C...
- Page 2 COOKTOP, BURNER AND GRATE PARTS For Models: JGC1536ADW15, JGC1536ADB15, JGC1536ADS15 (White) (Black) (Stainless) Illus. Part DESCRIPTION Literature Parts 8101P736−60 Installation Instructions 8111P536−60 Use & Care Guide Wiring Diagram W10204418 English W10205174 French Safe Cooking Tips 9762761 English W10065852 French Cooktop 2001N297−81 White 2001N297−09 Black 2001N295−55 Stainless...
- Page 3 BURNER BOX, GAS VALVES, AND SWITCHES For Models: JGC1536ADW15, JGC1536ADB15, JGC1536ADS15 (White) (Black) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1 W10176504 Burner Box 7513P515−60 Pipe, Manifold 7506P346−60 Tubing, Gas 8008P065−60 Seal, Valve Shaft (Includes Valves) (Right Front) 7431P066−60 Spark Module 7208P024−60 Seal, Manifold 7506P347−60 Tubing, Gas...
- Page 4 OPTIONAL PARTS (NOT INCLUDED) For Models: JGC1536ADW15, JGC1536ADB15, JGC1536ADS15 (White) (Black) (Stainless) Illus. Part DESCRIPTION Following Parts Not Illustrated 7402P087−60 Cord, Power 7101P062−60 Screw 8007P003−60 Strain Relief 8019P038−60 Wire Tie Miscellaneous 7509P173−60 Conversion Kit LP WIRING HARNESS PARTS W10173479 Harness, Cooktop W10177768 Wire, Jumper (White) W10177769 Wire, Jumper...
