Craftsman 917.375351 Owner's Manual

Craftsman 917.375351 Owner's Manual

Rotary lawn mower 6.5 horsepower power-propelled 22" multi-cut
Hide thumbs

Advertisement

Available languages

Available languages

Quick Links

Download this manual
Owner's Manual
Husqvarna

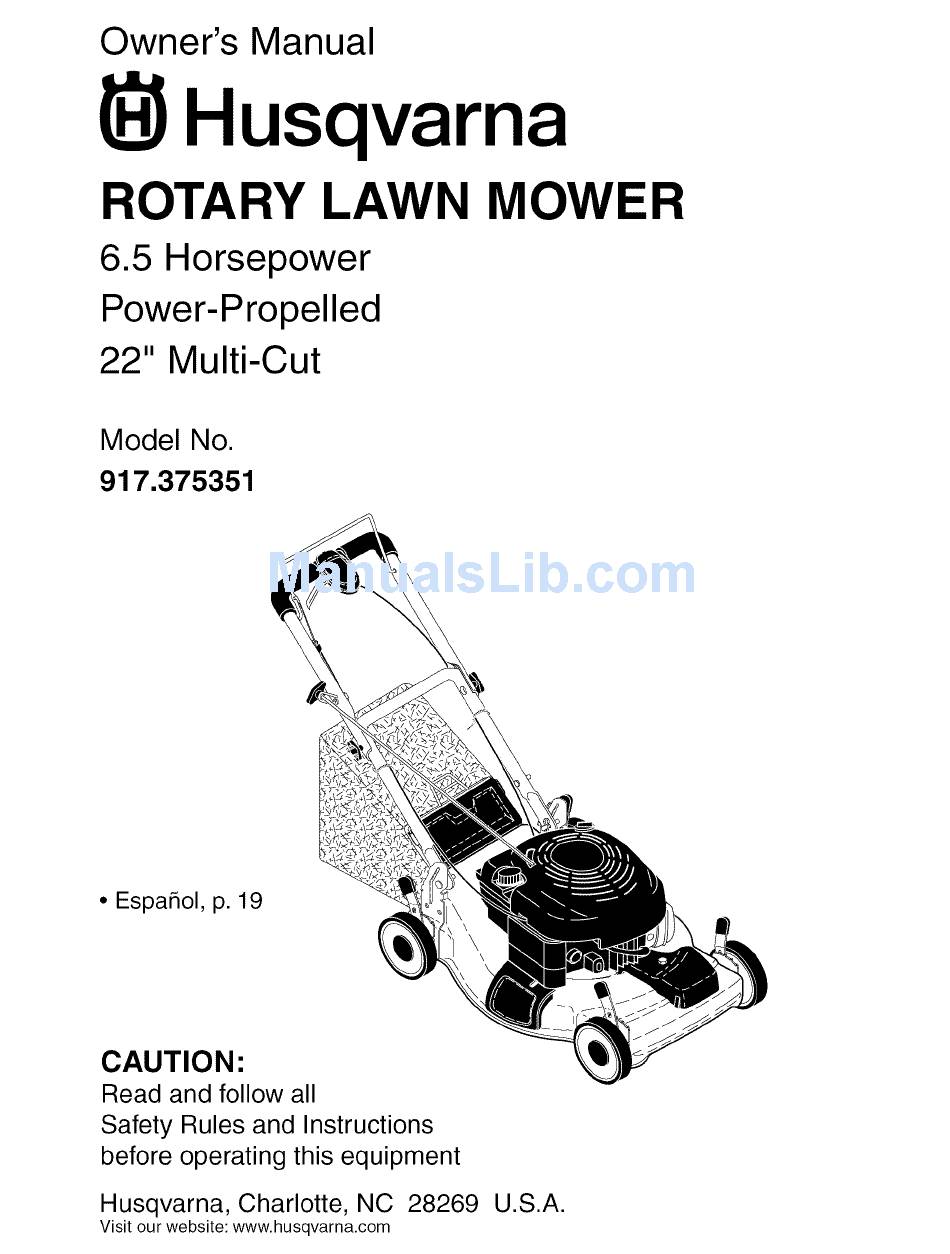

ROTARY LAWN MOWER
6.5 Horsepower
Power-Propelled
22" Multi-Cut
Model No.
917.375351
• Espahol, p. 19
CAUTION:
Read and follow all
Safety Rules and Instructions
before operating this equipment
Husqvarna,
Charlotte, NC 28269
Visit our website: www.husqvarna.com
U.S.A.
