Craftsman 917.375610 Owner's Manual

Craftsman 917.375610 Owner's Manual

550 series briggs & stratton engine power-propelled 22" side discharge rotary lawn mower
Hide thumbs

Advertisement

Available languages

Available languages

Table of Contents

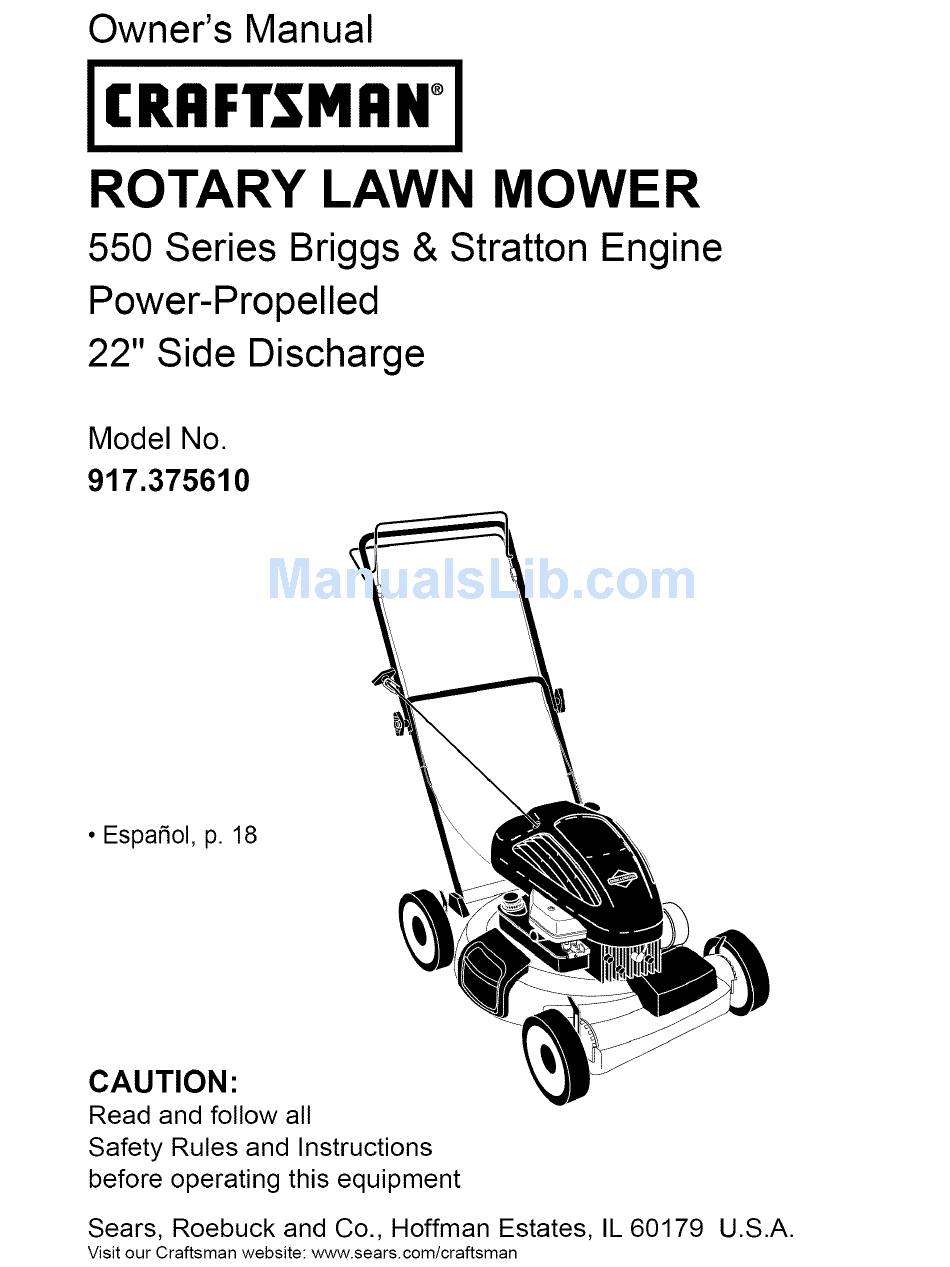

Owner's
Manual
CRRFTSMRN °
ROTARY LAWN MOWER
550 Series Briggs & Stratton Engine
Power-Propelled
22" Side Discharge
Model No.
917.375610
• EspaSol, p. 18
CAUTION:
Read and follow all
Safety Rules and Instructions
before operating this equipment
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Visit our Craftsman website: www.sears.com/craftsman
U.S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 917.375610 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Craftsman 917.375610

Summary of Contents for Craftsman 917.375610

  • Page 1 550 Series Briggs & Stratton Engine Power-Propelled 22" Side Discharge Model No. 917.375610 • EspaSol, p. 18 CAUTION: Read and follow all Safety Rules and Instructions before operating this equipment U.S.A. Sears, Roebuck and Co., Hoffman Estates, IL 60179 Visit our Craftsman website: www.sears.com/craftsman...
  • Page 2 Lawn Mower fails due to manufacturer defects in material workmanship within two years from the date of purchase, return it to any Sears store, Parts & Repair Center or other Craftsman outlet for free repair (or replacement if repair proves impossible). This warranty applies...
  • Page 3 I. GENERAL OPERATION • Always wear safety goggles or safety glasses with side shields when operating • Read, understand, and follow all mower. instructions on the machine and in the manual(s) before starting. Be thoroughly II. SLOPE OPERATION familiar with the controls and the proper Slopes are a major factor...

  • Page 4: General Service

    • Neverfill containersinsidea vehicle, on • Keepnuts and bolts, especiallyblade a truck or trailer bedwith a plasticliner. attachmentbolts, tight and keepequip- Always place containerson the ground mentin good condition. awayfrom yourvehicle beforefilling. • Nevertamperwith safetydevices.Check • Removegas-poweredequipmentfrom their proper operationregularly. the truck or trailerand refuel it on the •...
  • Page 5 Repair Protection Agreements Congratulations on making a smart pur- • Fast help by phone- phone sup- chase. Your new Craftsman® product port from a Sears representative designed and manufactured for years of products requiring in-home repair, plus dependable operation. But like all prod- convenient repair scheduling.

  • Page 6: How To Set Up Your Mower

    Read these instructions and this manual HOW TO SET UP YOUR MOWER its entirety before you attempt to assemble TO UNFOLD HANDLE or operate your new lawn mower. IMPORTANT: Unfold handle carefully IMPORTANT: This lawn mower is shipped as not to pinch or damage control cables.
  • Page 7 KNOW YOUR LAWN MOWER READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING YOUR LAWN MOWER. Compare the illustrations with your lawn mower to familiarize yourself with the location of various controls and adjustments. Save this manual future reference. These symbols may appear...

  • Page 8: Safety Glasses

    LEVER BACKWARD Plate tab The operation of any lawn TO LOWER MOWER SAFETY GLASSES mower can result in foreign objectsthrownintothe eyes, which can result in severe eye damage. Always wear safety glasses or eye shields while oper- ating your lawn mower or performingany adjustmentsor repairs.We recommenda LEVER FORWARD TO RAISE MOWER Lever...
  • Page 9 BEFORE STARTING ENGINE Engine oil cap ADD OIL Your lawnmower is shipped without oil in the engine. For type and grade of oil to use, see "ENGINE" in the Maintenance Primer section of this manual. _i, CAUTION: DO NOT overfill engine with oil, or it will smoke heavily...

  • Page 10: Mowing Tips

    MOWING TIPS MULCHING MOWING TIPS CAUTION: Do not use de-thatcher IMPORTANT: For best performance, bladeattachmentson your mower.Such keep mower housing free of built-up attachmentsare hazardous,will damage grass and trash. See "CLEANING" in the your mowerand could void your warranty. Maintenance section of this manual.
  • Page 11 BEFORE AFTER EVERY EVERY EVERY EACH EACH 25HOURS BEFORE SCHEDULE HOURS OR SEASON HOURS STORAGE Check for Loose Fasteners Clean / Inspect Grass Catcher* Check Tires N Check Drive Wheels Clean Lawn Mower ..M Clean under Drive Cover *** Check Drive Belt / Pulleys Check / Sharpen...
  • Page 12 LAWN MOWER NOTE: Protect your hands with gloves and/or wrap blade with heavy cloth. Always observe safety rules when per- Remove blade bolt by turning counter- forming any maintenance. clockwise. TIRES Remove blade and attaching hardware • Keep tires free of gasoline, oil, or insect (bolt, lock washer, hardened...

  • Page 13: Grass Catcher

    GRASSCATCHER (If purchasedas an accessory) • The grass catchermay be hosedwith water, but must be dry when used. • Checkyour grasscatcheroften for dam- age or deterioration. Throughnormal use it will wear. If catcherneeds replac- ing, replaceonlywith approvedreplace- ment catchershown in the Repair Parts sectionof this manual.
  • Page 14 MUFFLER • Clean the underside of your mower scraping to remove build-up of grass/ Inspect and replace corroded muffler as it trash. could create a fire hazard and/or damage. • Clean engine often to keep trash from SPARK PLUG accumulating. A clogged engine runs...
  • Page 15 TO REPLACE DRIVE BELT Place new drive belt in engine pulley and belt retainer of debris shield. Route the other end of the new drive belt through hole in housing. Reinstall debris shield. Reinstall blade. Return mower to upright position. Push down on arm, install new belt on gearcase pulley.
  • Page 16 Immediately prepare your lawn mower for MOWING Operator storage at the end of the season or if the POSITION presence control bar unit will not be used for 30 days or more. LAWN MOWER When lawn mower is to be stored for a FOLD '..
  • Page 17 CYLINDER • If possible, store your unit indoors cover it to protect it from dust and dirt. Remove spark plug. • Cover your unit with a suitable protec- Pour one ounce (29 ml) of oil through tive cover that does not retain moisture. spark plug hole into cylinder.

  • Page 18: Troubleshooting

    TROUBLESHOOTING - See appropriate section in manual unless directed to a Sears Parts & Repair Center, CAUSE PROBLEM CORRECTION Loss of power Rear of mower housing Raise cutting height. blade dragging in grass. Cutting too much grass. Raise cutting height. Dirty air filter.
  • Page 19 Sears, al Centro de Repuestos y Reparacion, o a otro comercio donde se vendan los equipos Craftsman, a efectos de que se la reparen sin costo (o bien se la reemplacen, en caso que no sea posible repararla).
  • Page 20 I. OPERACION • Siempre use gafas de seguridad o anteojos con protecci6n lateral cuando opere la sega- • Antes de empezar, debe familiarizarse dora. completamente con los controles y el uso correcto de la maquina. Para esto, debe leer y comprender todas las instrucciones que II.
  • Page 21 • Nunca repostar la maquina al interior de un • Mantenga las tuercas y los pernos, espe- local. cialmente los pernos del accesorio de la • Nunca guardar la maquina o el contenedor cuchilla, apretados y mantenga el equipo en buenas condiciones.

  • Page 22: Mantenimiento

    Congratulaciones por su buena compra. • Ayuda r&pida por telefono - soporte tele- nuevo producto Craftsman@ esta dise5ado f6nico por parte de un representento Sears y fabricado para funcionar de modo fiable por sobre productos que requieren un arreglo en muchos a5os.
  • Page 23 Lea estas instrucciones y este manual comple- COMO PREPARAR SU SEGADORA tamente antes de tratar de montar u operar su PARA DESDOBLAR EL MANGO segadora nueva. IMPORTANTE: Despliegue el mango con IMPORTANTE: Este cortacesped viene SIN mucho cuidado para no pellizcar o dadar los ACEITE O GASOLINA en el motor.
  • Page 24 FAMILIARICESE CON SU SEGADORA LEA ESTE MANUAL DEL DUENO Y LAS REGLAS DE SEGURtDAD ANTES DE OPARAR SU SEGADORA. Compare las ilustraciones con su segadora para familiarizarse con la ubicacion de los diversos controles y ajustes. Guarde este manual para referencia en el futuro. Estos simbolos pueden apareser sobre su segadora o en la literatura proporcionada con el producto.

  • Page 25: Para Ajustar La Altura De Corte

    PALANCA HACIAATRAS Mango La operacion de cualquier segadora puede hacer que PARA BAJAR EL CORTACESPED salten objetos extraSos dentro de sus ojos, Io que puede producir daSos graves en estos. Siempre use anteojos de seguridad o proteccion para los ojos mientras opere su segadora o cuando haga ajustes o reparaciones.
  • Page 26 ANTES DE HACER ARRANCAR por un periodo de 30 dias o mas. Vacie el MOTOR estanque del combustible, haga arrancar el motor y hagalo funcionar hasta que las lineas AGREGUE ACEITE del combustible y el carburador queden vacios. Su segadora fue enviada sin aceite en el motor. La pr6xima temporada use combustible nuevo.
  • Page 27 _NSEJOS PARA SEGAR CONSEJOS PARA SEGAR Y ACOLCHAR PRECAUClON: No utilizar dispositivos anti- IMPORTANTE: Para obtener el mejor paja de la hoja en la segadora ya que estos rendimiento mantenga la caja de la segadora accesorios son peligrosos, pueden da5ar su sin acumulacion de cesped y basura.
  • Page 28 PROGRAMA ANTES DEsPuEs CADA CADA CADA ANTESDEL DE CADA OE CADA 2S.ORAS O ALMACE- MANTENIMIENTO uso .ORASTEMPO.ADA.ORAS.AM,E.TO Revisar si hay Sujetadores Sueltos Limpiar/Inspeccionar el Recogedor de Cesped * Controlar los Neumaticos Controlar las Ruedas Motrices *** Limpiar la Segadora ..Limpiar debajo la Cubierta de la TransmisiSn *** Revisar las Correas y las Poleas Impulsadas...
  • Page 29 SEGADORA AVlSO: Remueva el adaptador de la cuchilla y revise el cubo interior de la ranura del adaptador Siempre observe las reglas de seguridad cu- ando haga el mantenimiento. de la cuchilla. La ranura tiene que estar en LLANTAS buenas condiciones para que funcione en forma adecuada.
  • Page 30 RECOGEDOR DECO:SPED (Sicomprado c omoaccesorio) • El recogedor decesped puedeserrociado el agua de la manguera pero tiene que estar seco cuando se vaya a usar. • Revise su recogedor de cesped a menudo para verificar si esta dafiado o deteriorado. Se va a desgastar con el uso normal.
  • Page 31 SILENClADOR • Haga descansar la segadora en su lado. Inspeccione y cambie el silenciador siesta AsegQrese que el filtro de aire y que el car- corroido puede producir un peligro de incendio burador queden mirando hacia arriba. Limpie y/o dafio. la parte inferior de su segadora raspandola para remover la acumulaci6n de cesped y basura.
  • Page 32 Polea del motor Correa mando Estribo de la correa Defensa contra del desperdicio PARA CAMBIAR CORREA DE IMPULSION 1. Colocar la nueva correa de mando en la polea del motor y el estribo de la pantalla de los escombros. Mango Colocar la otra extremidad de la nueva correa de mando a traves del orificio en el bastidor.
  • Page 33 Inmediatamente prepare su segadora para el POSICION Barra de control almacenamiento al final de cada temporada o si PARA que exige la unidad no se va a usar por 30 dias o mas. SEGAR presencia operador /' / SEGADORA //// Cuando se va a guardar la segadora por cierto periodo de tiempo, limpiela cuidadosamente, DOBLAR...
  • Page 34 ACEITE DEL MOTOR • Cambie el envase de la gasolina si se empie- za a oxidar. La oxidacion y/o la mugre en su Drene el aceite (con el motor caliente) y cam- gasolina produciran problemas. bielo con aceite de motor limpio. (Vea "MO- •...

  • Page 35: Solucion De Problemas

    SOLUCION DE PROBLEMAS - Vea la secci6n apropiada en el manual amenos estd dirigido a un centro de servico Sears. PROBLEMA CAUSA CORRECCION Eleve la altura de corte. Falta de 1. Cuchilla desgastada, doblada fuerza o suelta. Eleve la altura de corte. AItura de las ruedas dispareja.
  • Page 36 CRAFTSMAN ROTARY LAWN MOWER- - MODEL NUMBER 917.375610...
  • Page 37 CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 917.375610 PART PART DESCRIPTION DESCRIPTION 194203X479 Upper Handle 152124 Spring, Torsion 175148 Engine Zone Control Cable 73800400 Locknut, Hex 1/4-20 750634 Screw 410273 Kit, Mower Housing (Includes Key Number 52) 850733X004 Bracket, Upstop...
  • Page 38 CRAFTSMAN ROTARY LAWN MOWER- - MODEL NUMBER 917.375610...
  • Page 39 CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 917.375610 PART PART DESCRIPTION DESCRIPTION 194653 Drive Control Cable Assembly 86012 Driveshaft Cover 191039 Bearing, Wheel Adjuster 183497 * Case, Lower 143603 Pan Head Tapping Screw #10-24 x 2-3!4 183498 * Case, Upper...
  • Page 40 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 10T802-0708-EA 534 I 525_ 3o7_ 287_ 48 SHORT BLOCK...
  • Page 41 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 10T802-0708-EA 1830 633 ÷ 0 1390 612 f(_ 1218 1058 OPERATOR'S MANUAL 69 9 1211 689 O 1210 1329 REPLACEMENT ENGINE] [1036 EMISSIONS LABEL [1330 REPAIR MANUAL...
  • Page 42 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 10T802-0708-EA KEY PART PART DESCRIPTION DESCRIPTION 691998 Gear-Cam 699650 Cylinder Assembly - - - Short Block 399269 Bushing/Seal Kit (PTO Side) 699644 Manifold-Intake 299819s • Seal-Oil (PTO Side) 699649 • Gasket-Intake 698691 Sump-Engine 790169 Head-Cylinder 691111...
  • Page 43 BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 10T802-0708-EA KEY PART PART DESCRIPTION DESCRIPTION 745A 690859 790029 Screw (Carburetor) Screw (Brake) 691870 89838s Wrench-Spark Plug SeaI-O Ring (Dipstick) 691440 691839 Spring-Choke Diaphragm Dipstick/Tube Assembly 691837 Screen-Carburetor 493880s Terminal-Spark Plug 697338 Seal-Valve 495770 Diaphragm-Carburetor 699641...
  • Page 44 Your Home For repair - in your home - of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter made it, no matter sold For the replacement parts, accessories owner's manuals that you need to do-it-yourself. For Sears professional installation of home appliances...
