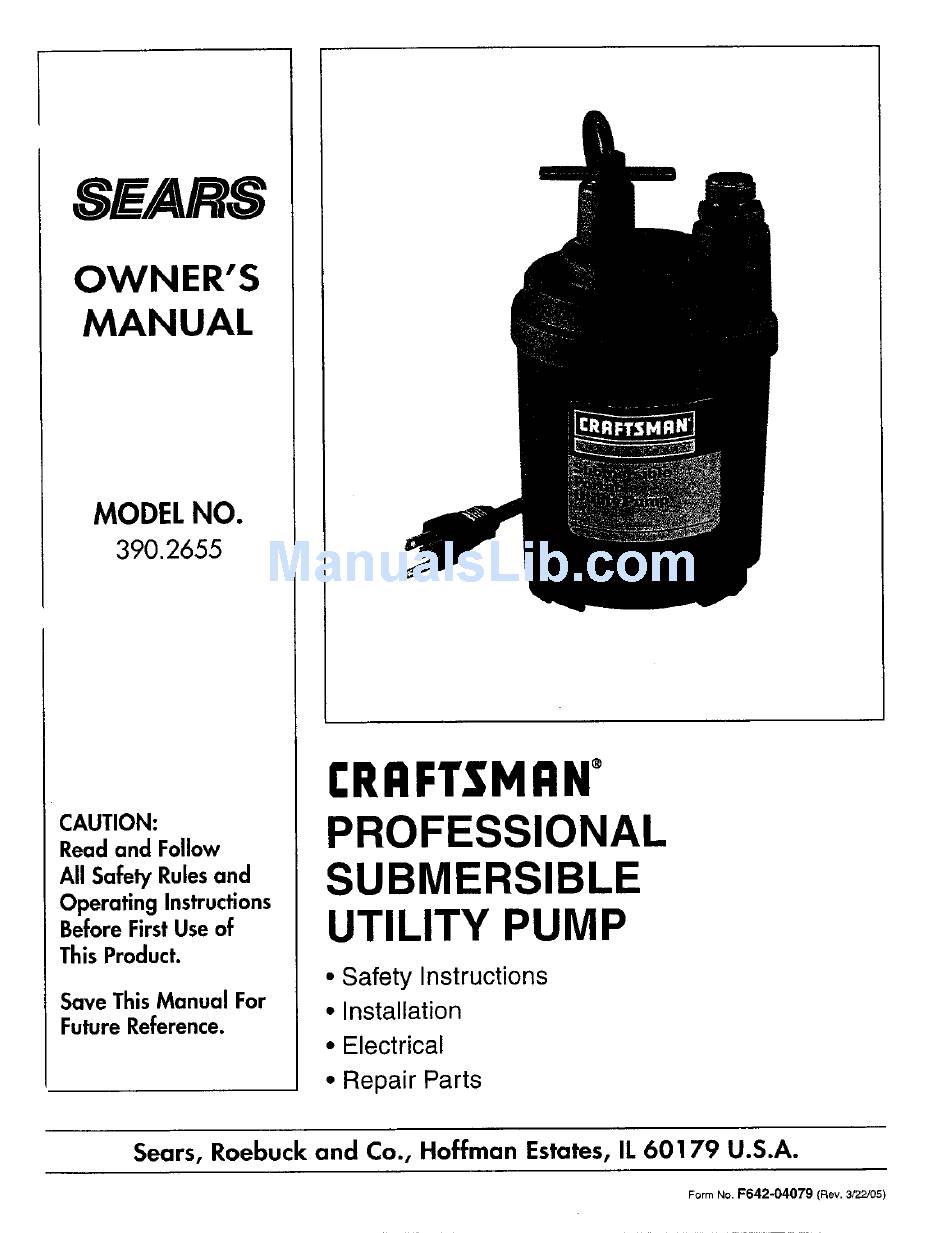

Craftsman 390.2655 Owner's Manual

Professional submersible utility pump
Hide thumbs Also See for 390.2655:
Table of Contents

Advertisement

Quick Links

SEARS
OWNER'S
MANUAL
MODEL NO.
390.2655
CAUTION:
Read and Follow
All Safety Rulesand
Operating Instructions
Before FirstUse of
This Product.
Save ThisManual For
Future Reference.
I:RRFTSMRW
PROFESSIONAL
SUBMERSIBLE
UTILITY PUMP
• Safety Instructions
• Installation
• Electrical
• Repair Parts
Sears, Roebuck and Co., Hoffman Estates, IL 60179
U.S.A.
Form No.
F642-04079
(Rev. 3/22/05)

Advertisement

Table of Contents
loading

Related Manuals for Craftsman 390.2655

Summary of Contents for Craftsman 390.2655

  • Page 1 SEARS OWNER'S MANUAL MODEL NO. 390.2655 I:RRFTSMRW PROFESSIONAL CAUTION: Read and Follow SUBMERSIBLE All Safety Rulesand Operating Instructions UTILITY PUMP Before FirstUse of This Product. • Safety Instructions Save ThisManual For • Installation Future Reference. • Electrical • Repair Parts Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

  • Page 2: Safety Information

    CONTENTS INTRODUCTION INTRODUCTION/WARRANTY ......... Please read our instructions before you install and use your new pump; tins will help you obtain hall value and good ser- SAFETY ................vice from it. It will also help you avoid needless service costs INSTALLATION ..............

  • Page 3: Installation

    14.Protect electrical cordfromsharp objects, hot surfaces, ELECTRICAL CONNECTIONS oil,andchemicals. Avoidkinking thecord• R eplace orre- pairdamaged orworncords immediately. The Pump has a 3-prong electric plug. The third prong is used to ground the pump to prevent possible fatal shock. 15. D onot touch an operating motor.

  • Page 4: Generator Sizing

    OPERATION Grounding Outlet If your outlet is not grounded, install a copper wire, at least [a_'WARNINGJRJsk of electric shock. handle 14 gauge (2mmZ), from the outlet box, as shown in Figure pump or pump motor with wet hands or when stand- B, to a metal cold water pipe.

  • Page 5: Pump Cleaning

    HAINTENANCE SERVICE General Make certain that pump is unplugged before attempting to service or remove any component. _Risk of electric shock. When servicing 1. The motor in the unit is sealed in oil. No additional lubri- pump always disconnect power to electrical outlet cation...

  • Page 6: Pump Performance

    PUMP PERFORMANCE Discharge Height in Feet Above Pumping Level Model 390.2655 30.0 28.5 24.5 20.0 14.5 For maximum performance, purchase Sump/Utility Hose Kit, SEARS Stock No. 27909. GARDEN HOSE PERFORMANCE Model No. 390.2655 Vertical Pumping Distance Type of Length of Hose Hose 112"...

  • Page 7: Repair Parts

    REPAIR PARTS Anti-Airlock Hole Repair Parts Part 390.2655 1/4 HP Description Qty. Power Cord PS117-51-TSU Motor PS5-25P Impeller PS70-3P Shield Screen PS8-5P #8 x 5/8 Pan Head Screw FT0013-43 Garden Hose Adapter • Not illustrated. * If motor fails, replace entire pump. ** Standard hardware item;...
