Jenn-Air JDB1095AWB41 Parts List

Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10158012 Instructions,
Installation
W10119999 Energy Guide
W10164024 Guide, Use & Care
2 99002693 Insulation, Door
3 99003048 Barrier, Foam
4 Block, Foam
99003046 Left
99003047 Right
5 99003049 Wrap, Foam
6 Bracket, Hinge
99002929 Left
99002930 Right
12−08 Litho In U.S.A. (cre) (eeb)

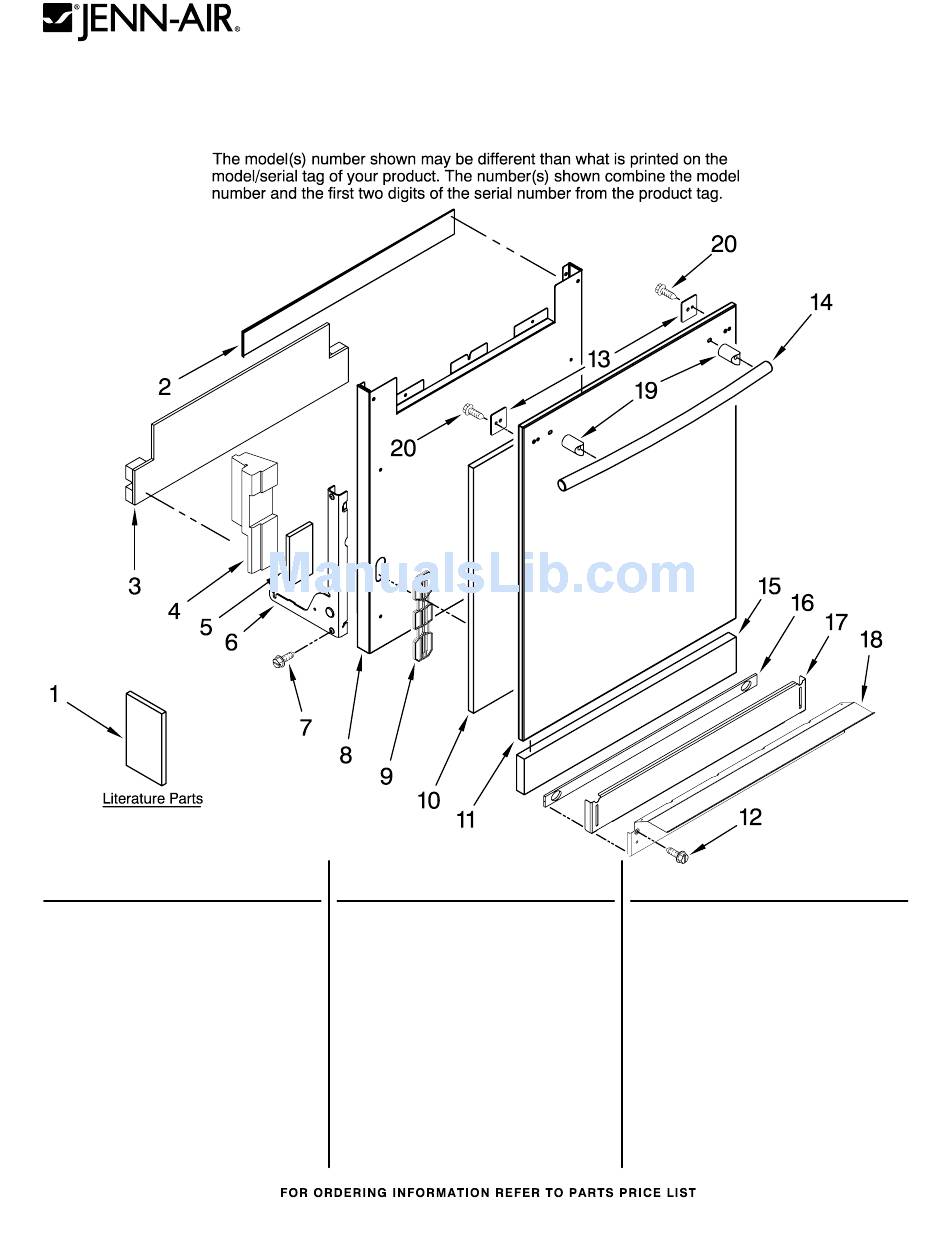

DOOR AND PANEL PARTS
For Models: JDB1095AWB41, JDB1095AWW41,JDB1095AWS41
JDB1095AWB42, JDB1095AWW42,JDB1095AWS42
JDB1095AWB44, JDB1095AWW44,JDB1095AWS44
JDB1095AWB45, JDB1095AWW45,JDB1095AWS45
(Black)
Illus. Part
No. No.
7 99001075 Screw
8 99003094 Support, Inner
9 99003095 Anchor, Panel
10 99003093 Pad, Foam
11
99003090 Black
99003092 White
W10166535 Stainless
12
912366 Black
99001194 White
13 99003097 Plate, Handle
(White) (Stainless)
Illus.
DESCRIPTION No.
14
15
Door
16
Fastener
Panel, Front 17
Screw 18
19
Black 20
1
UNDERCOUNTER
DISHWASHER
Part
No. DESCRIPTION
99003088 Handle, Door
99002414 Insulation, Toe
Panel
Damper, Toe Panel
99002694 Black
99002698 White
Panel, Toe
(Includes Item 16)
99002765 Black
99002766 White
Support, Front
99002859 Black
99002860 White
99003089 Stud, Handle
99003154 Screw
Part No. W10245756 Rev. A
