Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10158012 Instructions,
Installation
W10119999 Energy Guide
W10164024 Guide, Use & Care
2
99003044 Insulation, Door
3
99003048 Barrier, Foam
4
Block, Foam
99003046 Left
99003047 Right
5
99003049 Wrap, Foam
6
Bracket, Hinge
W10118636 Left
W10118635 Right
7
99001075 Screw
6−11 Litho in U.S.A. (cre) (eeb)

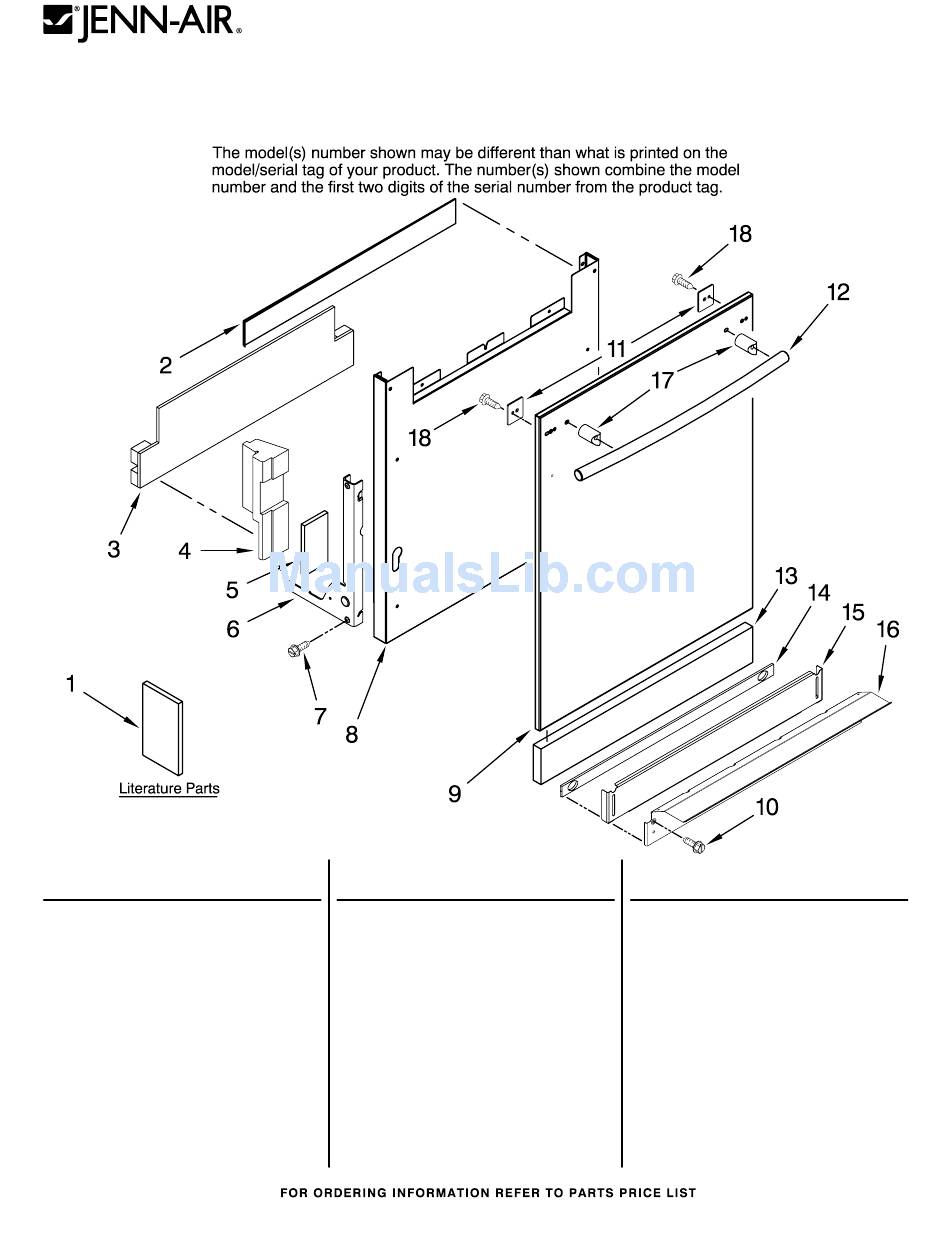

DOOR AND PANEL PARTS
For Models: JDB1275AWF41, JDB1275AWY41,
JDB1275AWF44, JDB1275AWY44,
JDB1275AWF45, JDB1275AWY45,
JDB1275AWF46, JDB1275AWY46
(White)
Illus.
Part
No.
No.
DESCRIPTION
8
Support, Inner
99003433 White
99003094 Black
9
99003095 Anchor, Pnl. Fastener
10
99003093 Pad, Foam
11
Panel, Front
99003422 Black
(also order 99003344
Facia)
99003423 White
(also order 99003445
Facia)
12
Screw
912366 Black
99001194 White
(Black)
Illus.
No.
13
14
15
16
17
18
1
UNDERCOUNTER
DISHWASHER
Part
No.
DESCRIPTION
99003097 Plate, Handle
Black
99003088 Handle, Door
99002414 Insulation, Toe
Panel
Damper, Toe Panel
99002694 Black
99002698 White
Panel, Toe
(Includes Item 16)
99002765 Black
99002766 White
Support, Front
99002859 Black
99002860 White
Part No. W10246579 Rev. A
