MODELS
W2005, W2006, W2007

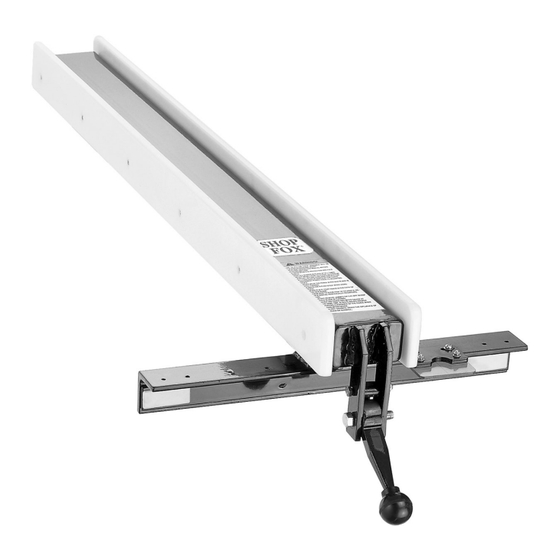

CLASSIC FENCE
INSTRUCTION MANUAL
Phone: 1-360-734-3482 • On-Line Technical Support: tech-support@shopfox.biz
COPYRIGHT © JANUARY 2000, REVISED MARCH 2004 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
Printed in Taiwan
Advertisement
Table of Contents
Related Manuals for Shop fox SHOP FOX W2006
Summary of Contents for Shop fox SHOP FOX W2006
- Page 1 INSTRUCTION MANUAL Phone: 1-360-734-3482 • On-Line Technical Support: tech-support@shopfox.biz COPYRIGHT © JANUARY 2000, REVISED MARCH 2004 BY WOODSTOCK INTERNATIONAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION .................... 2 ¦¦¦¦ General ......................2 Warranty ......................3 SAFETY PRECAUTIONS ................... 4 INSTALLATION ..................... 5 Inventory ......................5 Rail Installation ....................6 Correcting Mounting Hole Misalignment ..............7 Magnetic Switch ....................8 7-Foot Rails ..................... 9 Blade Guard ....................10 Fence ...................... -
Page 4: Introduction
INTRODUCTION General Thank you for purchasing Woodstock Woodstock is pleased to provide this manual International’s SHOP FOX Classic Fence. ® to assist in the installation and operation of This fence is classic in its design and function, the SHOP FOX Classic Fence. -
Page 5: Warranty
In no event shall Woodstock’s liability under this warranty exceed the purchase price paid for the product and any legal actions brought against Woodstock shall be tried in the State of Washington, County of Whatcom. Shop Fox Classic Fence... -
Page 6: Safety Precautions
SAFETY PRECAUTIONS These safety rules cannot cover every situation in a woodshop. Consider your conditions when setting up and using your SHOP FOX Classic Fence. ® 12. USE A PUSH STICK WHEN CUTTING KNOW YOUR TABLE SAW. Read the NARROW PIECES. owner’s manual carefully. -
Page 7: Installation
INSTALLATION Inventory Model W2007 Back Rail 7' ........1 Front Rail 7' ........1 Installation of the SHOP FOX Classic Fence ® Front Rail Rectangular Tube 7' .... 1 involves mounting the front and back rails to Scale ........... 1 your table saw, setting the fence on the rails Drill and Tap ......... -
Page 8: Rail Installation
3. Position the back rail so its top edge is flush with the table top and the rectangular cut-outs are in line with the UNPLUG the saw power cord, and TURN miter slots. See Figure 1. OFF the power switch before you begin fence installation procedures. - Page 9 Mounting The Front Rail 1. Align the side of the front rail with two rectangular cutouts against the edge of the table. 2. Set the top edge of the front rail so it is flush with the table top and the cutouts are in line with the miter slots.
-
Page 10: 7-Foot Rails
Fence 7-Foot Rails 1. Raise the lock handle up to release the The W2006/2007 extended 7' rail set for the fence locking tab and place the fence down Classic Fence increases the rip SHOP FOX ® on the rails. capacity to the right of the blade to 54''. These are mounted in the same manner as the 2. - Page 11 Extension Table 2. When installing the extension table, be sure it is flush with the table saw top by placing a long straightedge across both tables and An extension table should be mounted between adjusting the extension until it is even along the fence extension rails to provide workpiece the length of the straightedge.
-
Page 12: Blade Guard
⁄ -20 X ⁄ " flat head screws, ⁄ -20 hex nuts, contact Woodstock’s Technical Support. ⁄ " flat washers. Always make certain the saw is disconnected from the power supply before opening the switch box. DO NOT operate the saw without a blade guard installed. - Page 13 Your SHOP FOX Classic Fence requires little ® adjustment since most of the features are built- in to the fence at the factory. The primary adjustment is to adjust the fence so it is parallel to the saw blade. ⁄ "...
-
Page 14: Fence
Fence-to-Table Lock Handle Clearance The lock handle is cam actuated and locks against the machined edge of the front rail It is important to minimize the gap between rectangular tube. Generally it will require no the bottom of the fence and the table so adjustment. -
Page 15: Scale And Cursor
Scale and Cursor The self adhesive scale and magnified cursor provide fast and accurate fence positioning. Zero Point for 1. Loosen the adjusting screws on the right of blade use magnified cursor until the cursor can be adjusted. Approx 5 ⁄... - Page 16 Correcting Mounting Drilling Through-Holes Hole Misalignment 1. Position the rails flush with the top of the table saw table, and with the left end of the rails even with the left edge of the table If the front and back mounting holes do not line extension.
-
Page 17: Operations
They are Using a Wood Fence fully adjustable and non-marking. Facing Be sure to request the T-nuts and T-slot tracks separately from your Woodstock dealer The SHOP FOX Classic Fence can be faced ® for mounting Board Buddies to your fence. -
Page 18: W2005 Fence Parts Diagram
W2005 Fence Parts Diagram NOTE: The W2006 is a combination of the W2005 Fence and the W2007 Legs and 7' Rails. -16- Shop Fox Classic Fence ®... -
Page 19: W2005 Standard Rail Parts Diagram
W2005 Standard Rail Parts Diagram Shop Fox Classic Fence -17- ®... -
Page 20: W2007 Leg And 7' Rail Parts Diagram
W2007 Leg and 7' Rail Parts Diagram NOTE: The W2006 is a combination of the W2005 Fence and the W2007 Legs and 7' Rails. -18- Shop Fox Classic Fence ®... -
Page 21: W2005 Parts List
W2005 Parts List PART # DESCRIPTION PART # DESCRIPTION X2005001 FENCE LOCKING TAB XPLN02 LOCK NUT 1/4-20 X2005002 KNOB XPLN01 LOCK NUT 3/8-16 X2005003 BEARING PAD XPW03 FLAT WASHER #10 X2005004 LOCKING LEVER XPW06 FLAT WASHER 1/4 X2005008 FENCE BODY XPW02 FLAT WASHER 3/8 X2005008A...
