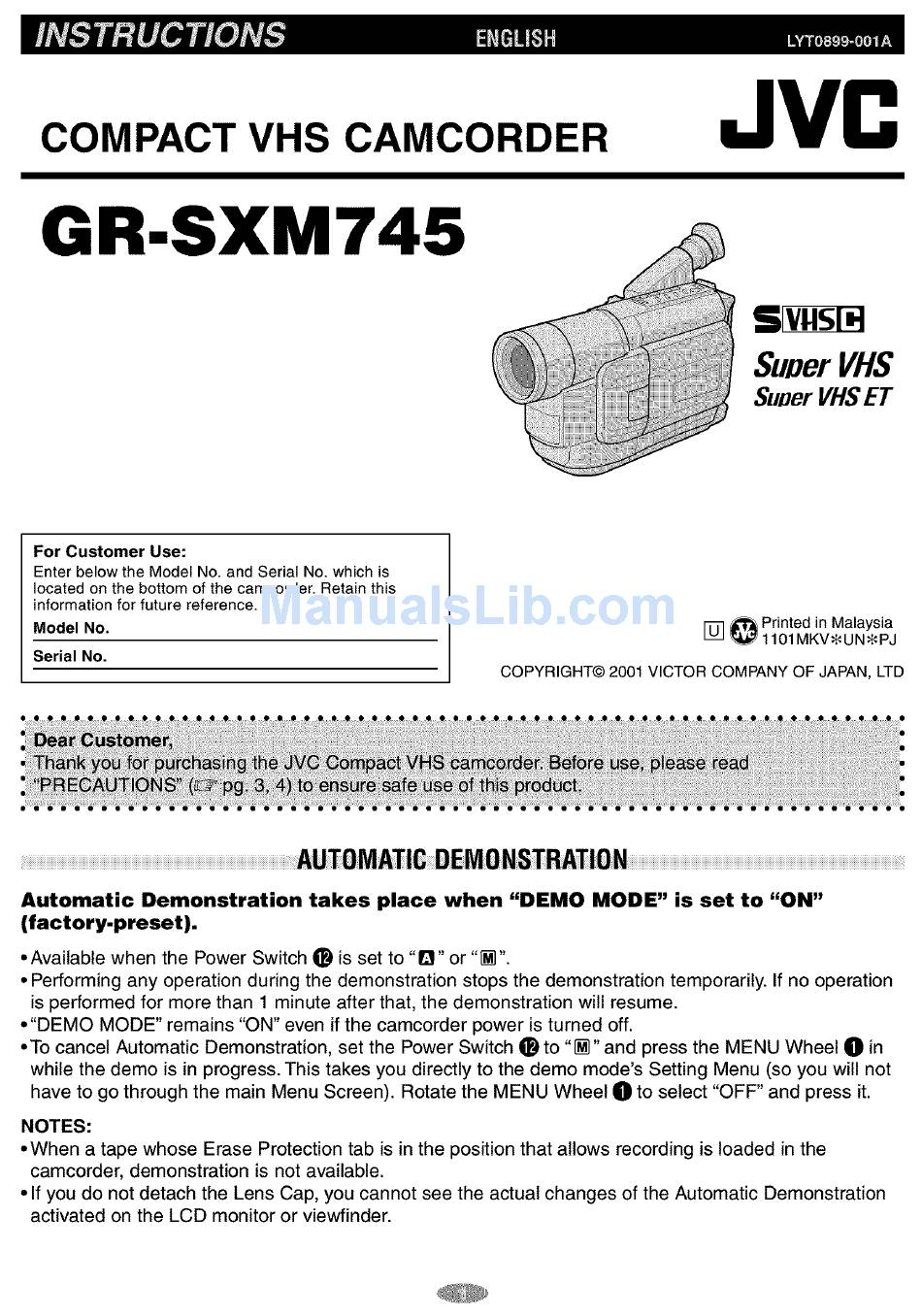

COMPACT VHS CAMCORDER
JVC
GR-SXM745
Suner VHS
Suner VHS ET
For Customer
Use:
Enter below the Model No. and Serial No. which is
located on the bottom of the camcorder. Retain this
information for future reference.
Model No,
Serial No.
E_
Printed in Malaysia
1101 MKVCUNCPJ
COPYRIGHT@
2001 VICTOR COMPANY
OF JAPAN, LTD
Automatic
Demonstration
takes
place
when
"DEMO
MODE"
is set
to "ON"
(factory-preset).
• Available
when the Power Switch 0
is set to "1_" or "_]".
• Performing
any operation
during the demonstration
stops the demonstration
temporarily.
If no operation
is performed
for more than 1 minute after that, the demonstration
will resume.
• "DEMO
MODE" remains
"ON" even if the camcorder
power is turned off.
• To cancel Automatic
Demonstration,
set the Power Switch 0 to "[]"
and press the MENU Wheel O in
while the demo is in progress.
This takes you directly to the demo mode's
Setting Menu (so you will not
have to go through
the main Menu Screen).
Rotate the MENU Wheel O to select "OFF" and press it.
NOTES:
• When a tape whose
Erase Protection
tab is in the position
that allows
recording
is loaded in the
camcorder,
demonstration
is not available.
• If you do not detach the Lens Cap, you cannot see the actual changes
of the Automatic
Demonstration
activated
on the LCD monitor or viewfinder.
