- Page 1 GA-H61M-USB3H User's Manual Rev. 1001 12ME-61MUB3H-1001R...
-
Page 2: Identifying Your Motherboard Revision
Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without GIGABYTE's prior written permission. -
Page 3: Table Of Contents
Table of Contents GA-H61M-USB3H Motherboard Layout ................4 GA-H61M-USB3H Motherboard Block Diagram ..............5 Chapter 1 Hardware Installation ..................6 Installation Precautions ..................6 Product Specifications ..................7 Installing the CPU .................... 9 Installing the Memory ..................9 Installing an Expansion Card ................. 10 Back Panel Connectors .................. -
Page 4: Ga-H61M-Usb3H Motherboard Layout

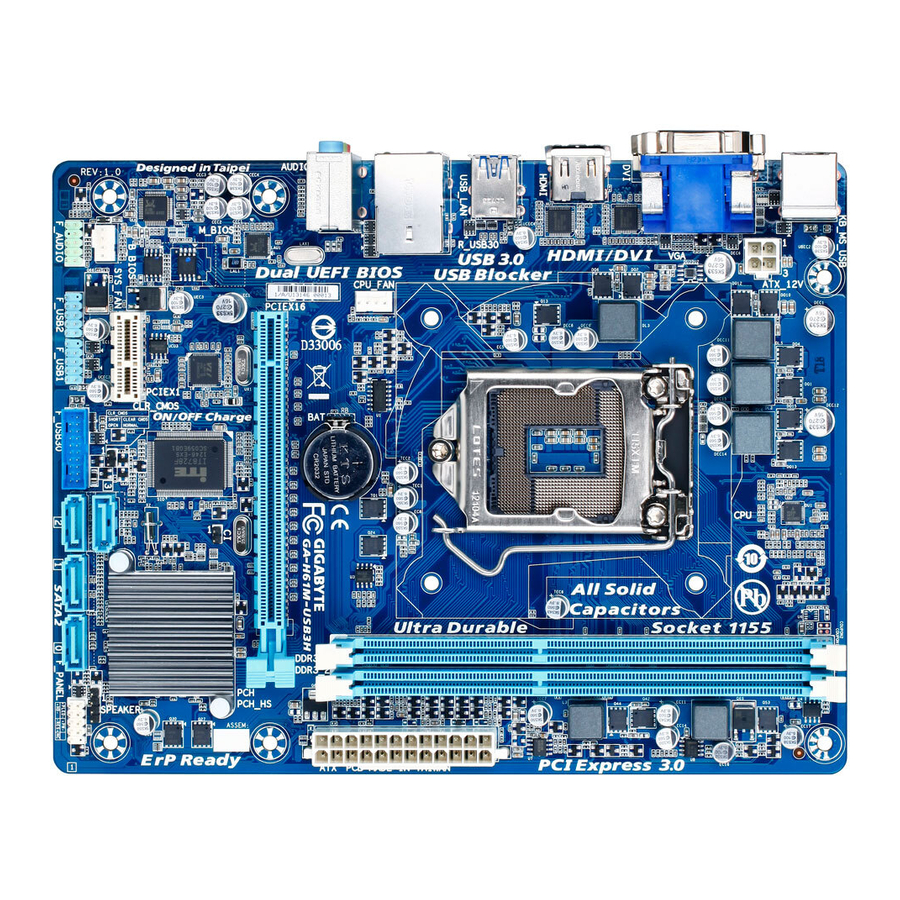

GA-H61M-USB3H Motherboard Layout KB_MS_USB ATX_12V LGA1155 DVI_VGA HDMI R_USB30 USB_LAN CPU_FAN AUDIO GA-H61M-USB3H PCIEX16 Realtek GbE LAN VL805 M_BIOS CODEC Intel B_BIOS ® PCIEX1 CLR_CMOS SYS_FAN SPEAKER SATA2 F_AUDIO F_USB2 F_USB1 F_USB30 F_PANEL Box Contents 5 GA-H61M-USB3H motherboard 5 Motherboard driver disk... -
Page 5: Ga-H61M-Usb3H Motherboard Block Diagram
GA-H61M-USB3H Motherboard Block Diagram 1 PCI Express x16 CPU CLK+/- (100 MHz) LGA1155 DDR3 1333/1066/800 MHz Dual Channel Memory PCIe CLK (100 MHz) PCI Express Bus Dual BIOS D-Sub 4 USB 3.0/2.0 DVI-D 4 SATA 3Gb/s HDMI Intel ® 8 USB 2.0/1.1... -
Page 6: Chapter 1 Hardware Installation
Chapter 1 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. •... -
Page 7: 1-2 Product Specifications
Support for Extreme Memory Profile (XMP) memory modules Š * To support XMP memory, you must install an Intel 22nm (Ivy Bridge) CPU. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) Onboard Integrated Graphics Processor: Š... - Page 8 Micro ATX Form Factor; 22.6cm x 17.4cm Š * GIGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice. * Please visit the Support & Downloads\Utility page on GIGABYTE's website to check the supported operating system(s) for the software listed in the "Unique Features"...
-
Page 9: Installing The Cpu
• Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) • Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage. -
Page 10: Installing An Expansion Card
Installing an Expansion Card Read the following guidelines before you begin to install an expansion card: • Make sure the motherboard supports the expansion card. Carefully read the manual that came with your expansion card. • Always turn off the computer and unplug the power cord from the power outlet before installing an expansion card to prevent hardware damage. -
Page 11: Internal Connectors
Line In Jack (Blue) The default line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc. Line Out Jack (Green) The default line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can be used to connect front speakers in a 4/5.1/7.1-channel audio configuration. -
Page 12: Cpu_Fan/Sys_Fan Fan Headers
1/2) ATX_12V/ATX (2x2 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed. - Page 13 DEBUG DEBUG DEBUG PORT PORT PORT 5) SATA2 0/1/2/3 (SATA 3Gb/s Connectors) The SATA connectors conform to SATA 3Gb/s standard and are compatible with SATA 1.5Gb/s standard. Each SATA connector supports a single SATA device. Pin No. Definition SATA2 6) F_PANEL (Front Panel Header) Connect the power switch, reset switch, and system status indicator on the chassis to this header according to the pin assignments below.
- Page 14 8) F_AUDIO (Front Panel Audio Header) The front panel audio header supports Intel High Definition audio (HD) and AC'97 audio. You may connect your chassis front panel audio module to this header. Make sure the wire assignments of the module connector match the pin assignments of the motherboard header.
-
Page 15: Clear Cmos Jumper
11) CLR_CMOS (Clear CMOS Jumper) Use this jumper to clear the CMOS values (e.g. date information and BIOS configurations) and reset the CMOS values to factory defaults. To clear the CMOS values, use a metal object like a screwdriver to touch the two pins for a few seconds. -
Page 16: Chapter 2 Bios Setup
To access the BIOS Setup program, press the <Delete> key during the POST when the power is turned on. To upgrade the BIOS, use either the GIGABYTE Q-Flash or @BIOS utility. Q-Flash allows the user to quickly and easily upgrade or back up BIOS without entering the operating system. -
Page 17: M.i.t
M.I.T. This section provides information on the BIOS version, CPU base clock, CPU frequency, memory frequency, total memory size, CPU temperature, Vcore, and memory voltage. Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your overall system configurations. - Page 18 & Turbo Power Limit (Watts) Allows you to set a power limit for CPU Turbo mode. When the CPU power consumption exceeds the specified power limit, the CPU will automatically reduce the core frequency in order to reduce the power. Auto sets the power limit according to the CPU specifications.
- Page 19 ` Advanced Memory Settings & Extreme Memory Profile (X.M.P.) , System Memory Multiplier, Memory Frequency(MHz) (Note) The settings above are synchronous to those under the same items on the Advanced Frequency Settings menu. & Performance Enhance Allows the system to operate at three different performance levels. Lets the system operate at its basic performance level.
-
Page 20: Miscellaneous Settings
& CPU Vcore/Dram Voltage/+5V/+12V/CPU VTT Displays the current system voltages. & CPU/System Temperature Displays current CPU/system temperature. & CPU/System Fan Speed Displays current CPU/system fan speeds. & CPU Warning Temperature Sets the warning threshold for CPU temperature. When CPU temperature exceeds the threshold, BIOS will emit warning sound. -
Page 21: System
System This section provides information on your motherboard model and BIOS version. You can also select the default language used by the BIOS and manually set the system time. & System Language Selects the default language used by the BIOS. &... -
Page 22: Bios Features
A password is required for booting the system and for entering the BIOS Setup program. (Default) System & Full Screen LOGO Show Allows you to determine whether to display the GIGABYTE Logo at system startup. Disabled skips the GIGABYTE Logo when the system starts up. (Default: Enabled) & Limit CPUID Maximum (Note) Allows you to determine whether to limit CPUID maximum value. -
Page 23: Boot Mode Selection
& Execute Disable Bit (Note) Enables or disables Intel Execute Disable Bit function. This function may enhance protection for the computer, reducing exposure to viruses and malicious buffer overflow attacks when working with its supporting software and system. (Default: Enabled) &... -
Page 24: Peripherals
& Administrator Password Allows you to configure an administrator password. Press <Enter> on this item, type the password, and then press <Enter>. You will be requested to confirm the password. Type the password again and press <Enter>. You must enter the administrator password (or user password) at system startup and when entering BIOS Setup. -
Page 25: Internal Graphics
& Init Display First Specifies the first initiation of the monitor display from the installed PCI Express graphics card or the onboard graphics. Lets BIOS automatically configure this setting. (Default) Auto Sets the onboard graphics as the first display. IGFX Sets the PCI Express graphics card on the PCIEX16 slot as the first display. -
Page 26: Power Management
Power Management & Resume by Alarm Determines whether to power on the system at a desired time. (Default: Disabled) If enabled, set the date and time as following: Wake up day: Turn on the system at a specific time on each day or on a specific day in a month. Wake up hour/minute/second: Set the time at which the system will be powered on automatically. -
Page 27: Save & Exit
& AC BACK Determines the state of the system after the return of power from an AC power loss. The system returns to its last known awake state upon the return of the AC power. Memory Always On The system is turned on upon the return of the AC power. Always Off The system stays off upon the return of the AC power. -
Page 28: Chapter 3 Drivers Installation
& Save & Exit Setup Press <Enter> on this item and select Yes. This saves the changes to the CMOS and exits the BIOS Setup program. Select No or press <Esc> to return to the BIOS Setup Main Menu. & Exit Without Saving Press <Enter>... -
Page 29: Regulatory Statements
Contravention will be prosecuted. We believe that the information contained herein was accurate in all respects at the time of printing. GIGABYTE cannot, however, assume any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and should not be construed as a commitment by GIGABYTE. - Page 30 - 30 -...
- Page 31 - 31 -...
-
Page 32: Contact Us
Tech. and Non-Tech. Support (Sales/Marketing) : http://ggts.gigabyte.com.tw WEB address (English): http://www.gigabyte.com WEB address (Chinese): http://www.gigabyte.tw You may go to the GIGABYTE website, select your language in the language list on the top right corner of the website. GIGABYTE Global Service System •...
